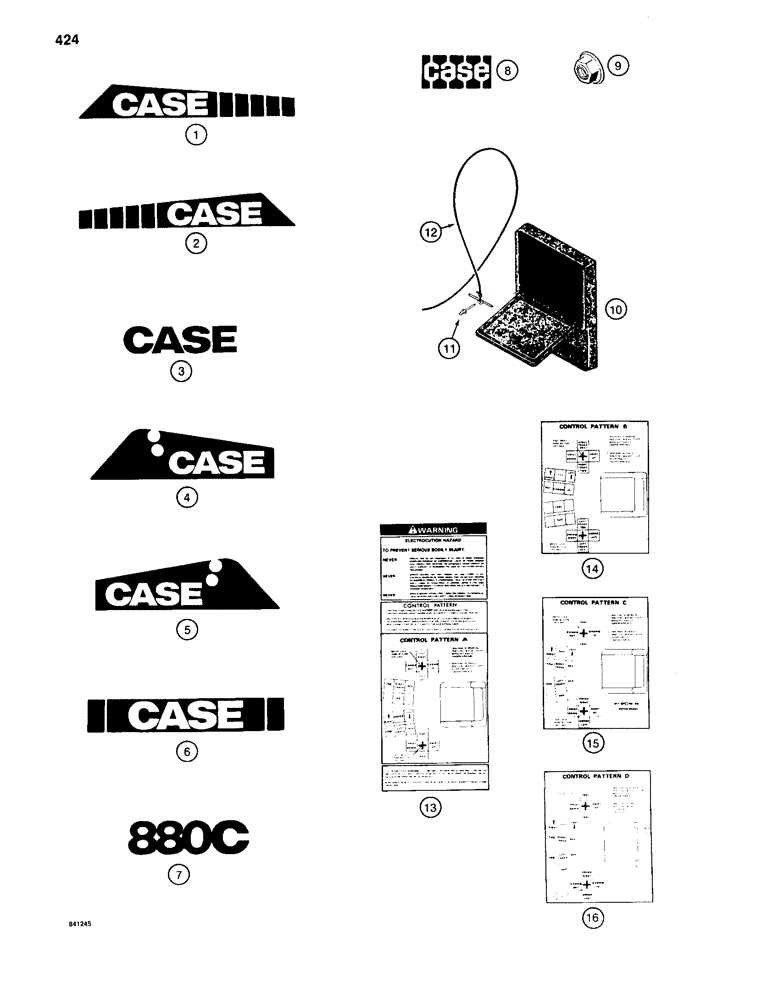

Запчасти Case 880C (424) - DECALS, CONTROL PATTERN DECALS, USED ON TRACTOR PIN (05) - UPPERSTRUCTURE CHASSIS

1

321-5054

DECAL

- Case, used on E boom, right-hand, black, if used

1шт.

1

S617878

DECAL

- Case, used on E boom, right-hand, brown, if used

1шт.

2

321-5055

DECAL

- Case, used on E boom, left-hand, black, if used

1шт.

2

S617877

DECAL

- Case, used on E boom, left-hand, brown, if used

1шт.

3

321-5088

DECAL - Case, used on Y boom, both sides, black, if used

2шт.

4

S617594

DECAL

- Case, used on Y boom, right-hand, brown, if used

1шт.

5

S617595

DECAL

- Case,used on Y boom, left-hand, brown, if used

1шт.

6

321-5056

DECAL

- Case, rear, black, if used

1шт.

6

S617990

DECAL

- Case, rear, brown, if used

1шт.

7

321-6224

DECAL

- 880C, black, if used

2шт.

7

S515933

DECAL

- 880C, brown, if used

2шт.

8

321-4739

EMBLEM

- Case, left-hand side of cab

1шт.

9

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - special, attaches Case emblem, Ref. 8

2шт.

10

S511692

BOX

- operators manual

1шт.

11

151-532

RIVET,Pop, 3/16" x .700"

POP RIVET - manual box to cab

2шт.

12

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.

13

321-6314

DECAL

- Control Pattern A, standard

1шт.

S616871

KIT - decal, Control Pattern B, optional

1шт.

14

321-6315

DECAL

- Control Pattern B, optional

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTION SHEET - decal kit

1шт.

S616872

KIT - decal, Control Pattern C, optional

1шт.

15

321-6316

DECAL

- Control Pattern C, optional

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTION SHEET - decal kit

1шт.

S616873

KIT - decal, Control Pattern D, optional

1шт.

16

321-6317

DECAL

- Control Pattern D, optional

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTION SHEET - decal kit

1шт.
