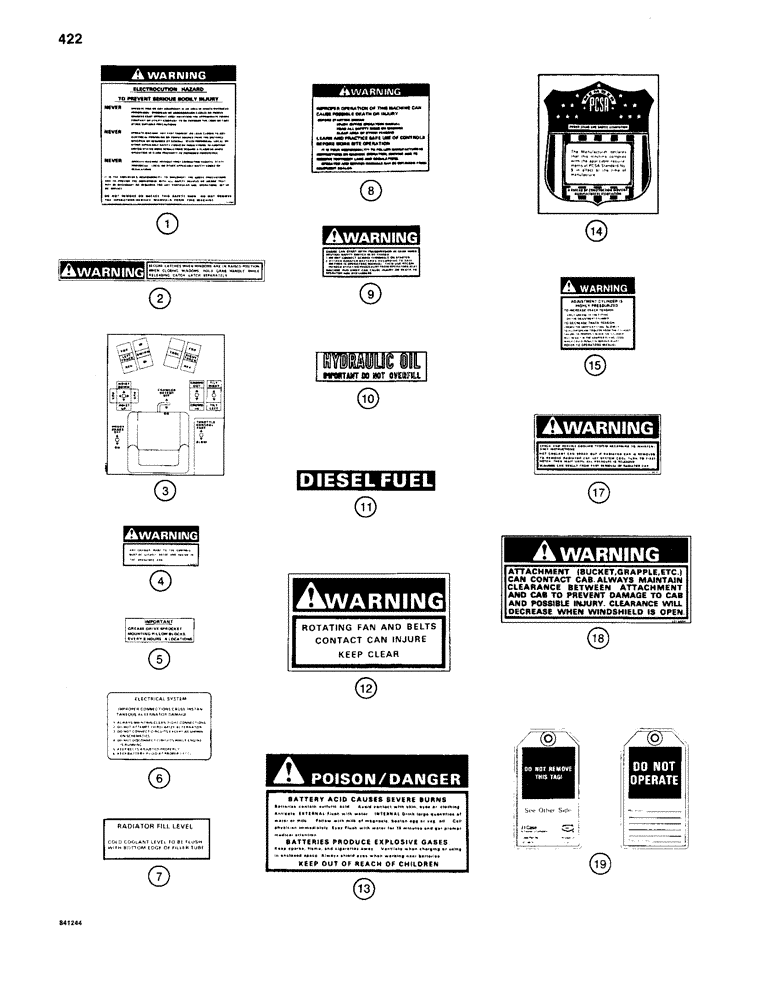

Запчасти Case 880C (422) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

S510658

DECAL

- Warning, Electrocution Hazard, used before PIN 6205236

1шт.

2

S232929

DECAL - Warning, secure latches, windows, used before PIN 6205236

1шт.

3

S510304

DECAL

- control pattern, used before PIN 6205236

1шт.

For the control pattern decals used on PIN 6205236 and after, see Figure 424.

1шт.

4

S232894

DECAL

- Warning, any changes made to the controls, no longer used, not required

1шт.

5

S216990

DECAL

- Important, grease drive sprocket mounting pillow blocks, if used

1шт.

6

321-5282

DECAL

- Electrical System, improper connections, if used

1шт.

7

321-6329

DECAL

- Radiator Fill Level, if used

1шт.

8

S231311

DECAL

- Warning, improper operation of the machine

1шт.

9

321-3709

DECAL

- Warning, engine can start with transmission in gear

1шт.

10

S80209

DECAL

- Hydraulic Oil

1шт.

11

321-2601

DECAL

- Diesel Fuel

1шт.

12

321-3596

DECAL

- Warning, rotating fan and belts

3шт.

13

321-2996

DECAL

- Poison/Danger, battery acid

1шт.

14

S242429

DECAL

- PCSA

1шт.

15

321-6272

DECAL

- Warning, adjustment cylinder is highly pressurized

2шт.

16

S23395

SCREW

- drive, No. 7 - 32 NC x 5/16", used to attach Ref. 15 decals, not shown

8шт.

17

321-6672

DECAL

- Warning, check and service cooling system

1шт.

18

321-6694

DECAL

- Warning, attachment can contact cab

1шт.

19

321-4614

TAG

- Do Not Operate

1шт.

20

REF

INSTRUCTION

DECAL - engine data, see Figure 30 for decal

1шт.
