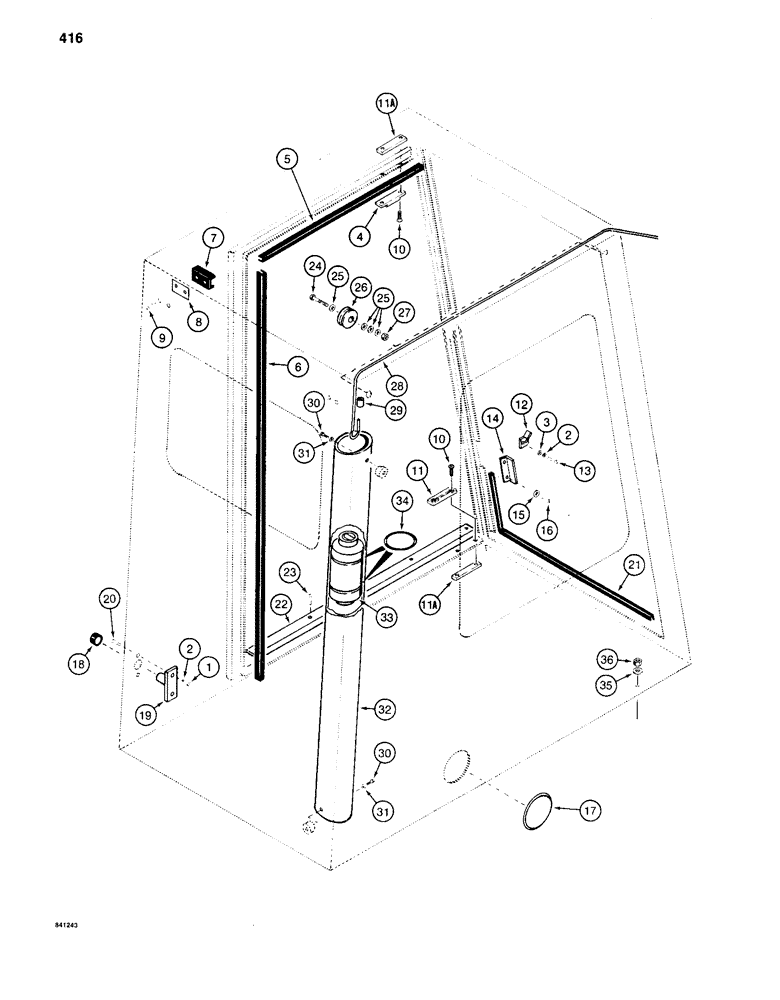

Запчасти Case 880C (416) - CAB WINDSHIELD CABLES AND MISCELLANEOUS, PIN 6205236 TO 6205415 (05) - UPPERSTRUCTURE CHASSIS

1

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

2

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

3

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

4

S117532

STRIKER PLATE - door latch, upper

1шт.

5

REF

INSTRUCTION

TRIM - edge, 30-1/2" (775 mm), cut from S118479, see below

1шт.

6

REF

INSTRUCTION

TRIM - edge, 59-1/2" (1511 mm), cut from S118479, see below

1шт.

7

S117701

PAD - mounting

2шт.

8

S118210

SHIM - pad

1шт.

9

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- pan head, No. 10 - 24 NC x 5/8"

4шт.

10

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- flat head, slotted, 1/4" - 20 NC x 1/2"

4шт.

11

A36080

PLATE

STRIKER PLATE - door latch, upper

1шт.

11a

S118724

BAR

- tapped, striker plate retaining

2шт.

12

S117704

WEDGE - windshield adjusting

2шт.

13

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- pan head, 1/4" - 20 NC x 3/4"

4шт.

14

S117649

TRACK - windshield

2шт.

15

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

4шт.

16

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- flat head, slotted, 1/4" - 20 NC x 1/2"

4шт.

17

S117638

PLUG

- cab, side, 4-1/2" hole

1шт.

18

S117543

BUMPER

- door

1шт.

19

S239654

CATCH

- door

1шт.

20

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- pan head, 1/4" - 20 NC x 1/2"

2шт.

21

REF

INSTRUCTION

SEAL - lower, windshield, 63" (1600 mm) long, cut from S118480, see below

1шт.

22

S239626

ANGLE

COVER - door sill

1шт.

23

187-1123

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

SCREW - self-tapping, No. 8 - 32 NC x 1/2"

5шт.

24

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

25

195-525

WASHER,3/8", SAE

- flat, 3/8", pulley alignment

1шт.

26

S117521

PULLEY

- cable

4шт.

27

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

28

S117548

METAL ROPE

CABLE - counterweight, 108" (3743 mm) long

2шт.

29

S117815

SLEEVE

- cable splice

4шт.

30

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

31

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

4шт.

32

S239687

TUBE,3" ID x 54.4" L

- guide, right-hand counterweight

1шт.

32

S239688

TUBE,3" ID x 54.4" L

- guide, left-hand counterweight

1шт.

33

S239689

WEIGHT

COUNTERWEIGHT - windshield position

2шт.

34

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

- counterweight to tube

4шт.

35

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

10шт.

36

131-208

SPECIAL NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

10шт.

S118479

SEAL

TRIM - edge, bulk, 90" (2286 mm) long

1шт.

S118480

SEAL

SEAL - windshield, bulk, 600" (15,240 mm) long

1шт.
