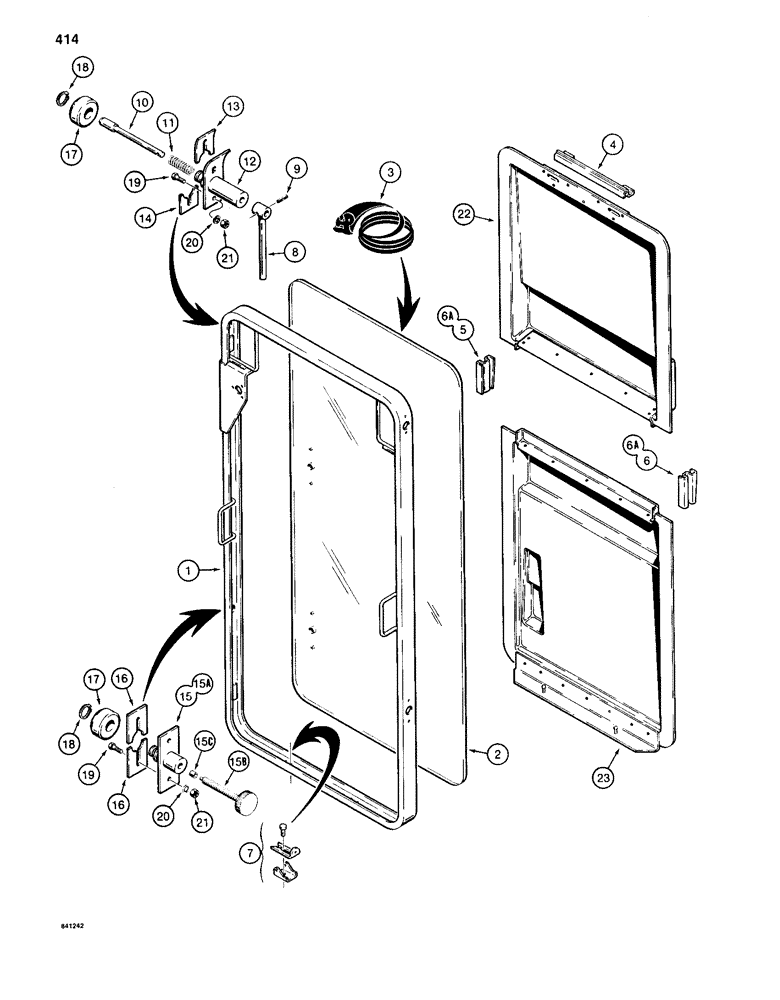

Запчасти Case 880C (414) - CAB WINDSHIELD, PIN 6205236 AND AFTER (05) - UPPERSTRUCTURE CHASSIS

1

S956335

FRAME - windshield, PIN, Serial Range: 6205236-6205415

1шт.

1

N60255

FRAME

- windshield, PIN 6205416 and after

1шт.

2

S616088

WINDOW

GLASS - windshield, blue green tint, 26.25" (667 mm) between windshield wiper shaft holes, if used

1шт.

2

N60257

WINDOW

GLASS - windshield, blue green tint, 23.75" (603 mm) between windshield wiper shaft holes, if used

1шт.

2

S617808

GLASS,CAB

GLASS - windshield, clear, 23.75" (603 mm) between windshield wiper shaft holes, if used

1шт.

3

REF

INSTRUCTION

SEAL - glass, windshield, 180" (4572 mm) long, cut from S118478

1шт.

4

N60101

RETAINER

- vandal guard, upper

1шт.

5

N60287

RETAINER

- vandal guard, left-hand, PIN 6205416 and after

1шт.

6

N60288

RETAINER

- vandal guard, right-hand, PIN 6205416 and after

1шт.

6a

S240130

CLIP

RETAINER - vandal guard, right-hand and left-hand, PIN, Serial Range: 6205236-6205415

2шт.

7

N60093

RETAINER

- vandal guard, lower

2шт.

8

S239621

HANDLE

- windshield lock

2шт.

9

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

10

S239677

PIN

- windshield lock

2шт.

11

A58271

SPRING

- lock pin

2шт.

12

S239686

SHAFT

BRACKET - support, upper roller

2шт.

13

S118726

SHIM

- upper roller bracket, curved

1шт.

14

S118727

SHIM

- upper roller bracket, straight

1шт.

15

N60272

SHAFT

BRACKET - support, lower roller, solid shaft, does not use Refs. 15B and 15C, used on PIN 6205416 and after

2шт.

15a

S239618

SHAFT

BRACKET - support, lower roller, drilled and tapped for Refs. 15B and 15C, used on PIN, Serial Range: 6205236-6205415

2шт.

15b

N60097

CLAMP

ADJUSTER - lower roller, if used

2шт.

15c

N60094

PAD

TIP - nylon, adjuster, if used

2шт.

16

S118725

SHIM

- lower roller bracket

1шт.

17

S240612

ROLLER

- windshield track

4шт.

18

T25683

SNAP RING,#75, Ext

Ring, Snap, , roller #75, Ext

4шт.

19

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

20

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4", plated

8шт.

21

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

8шт.

22

S616525

GUARD

- vandal, upper

1шт.

23

S616524

GUARD

- vandal, lower

1шт.

S118478

SEAL

- glass, windshield, bulk, 180" (4572 mm) long

1шт.
