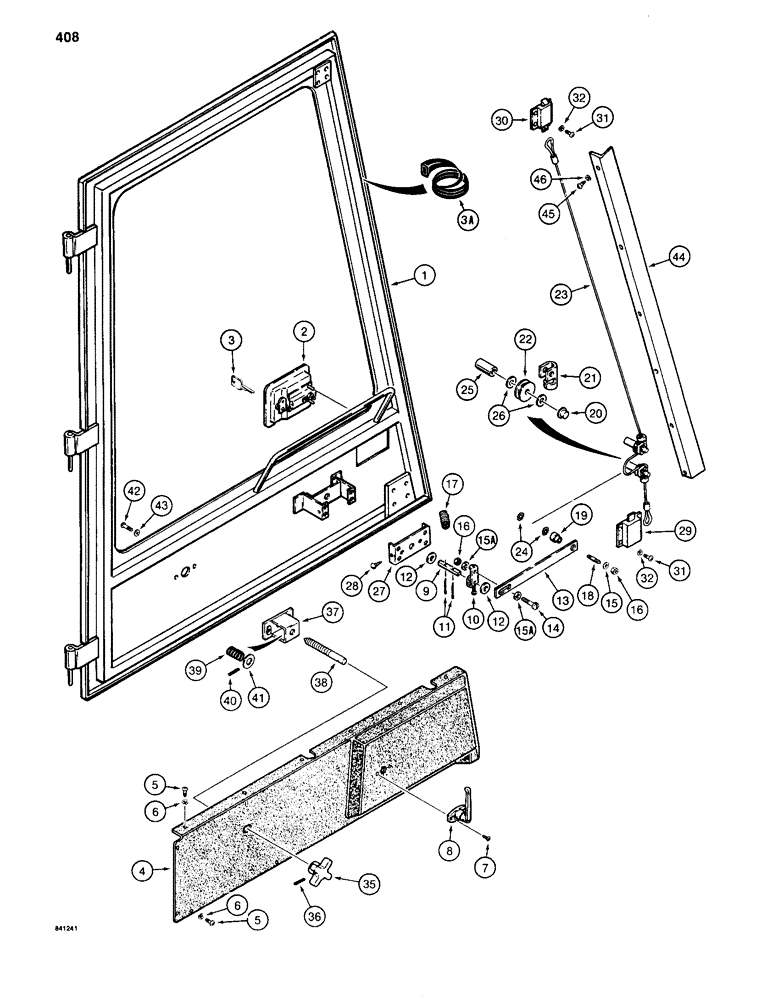

Запчасти Case 880C (408) - CAB DOOR ASSEMBLY, PIN 62052365 TO 6205413 (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
S956345
DOOR ASSY.
DOOR ASSEMBLY - cab, also includes reference numbers 1 and 4 on Figure 406, Includes: Ref. 1 - 26
1шт.
1
S117646
DOOR ASSY.
DOOR - cab, Includes: Ref. 2 and 3
1шт.
2
S239629
LATCH
- door, outside, Includes: Ref. 3
1шт.
3
N60100
KEY
- door latch
1шт.
3a
S119612
DOOR SEAL
- door edge, 202" (5131 mm) long
1шт.
4
S617071
PANEL
- access, lower door
1шт.
5
173-97
SCREW,Sl Rnd Hd, #10 - 24 x 1/2"
MACHINE SCREW - No. 10 - 24 NC x 1/2"
12шт.
6
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
12шт.
Part of door latch repair kit P/N S240430
1шт.
8
S118652
HANDLE
- inside, cab door
1шт.
Part of door latch repair kit P/N S240430
1шт.
9
S118653
SHAFT
-, Serial Range: handle-link
1шт.
Part of door latch repair kit P/N S240430
1шт.
10
S117526
LATCH
LINK - shaft, includes screw
1шт.
11
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
2шт.
Part of door latch repair kit P/N S240430
1шт.
12
195-533
WASHER,1/2", SAE
- flat, 3/8", plated
2шт.
13
S117519
LINK
- cable connecting
1шт.
Part of door latch repair kit P/N S240430
1шт.
14
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
1шт.
Part of door latch repair kit P/N S240430
1шт.
15
195-518
WASHER,1/4", SAE
- flat, 1/4", plated
1шт.
Part of door latch repair kit P/N S240430
1шт.
15a
195-518
WASHER,1/4", SAE
- flat, 1/4", plated
2шт.
16
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
2шт.
Part of door latch repair kit P/N S240430
1шт.
17
N60098
SPRING
- return, handle
1шт.
18
S118648
STUD
- link
1шт.
Part of door latch repair kit P/N S240430
1шт.
19
S118649
SPACER
- link
1шт.
Part of door latch repair kit P/N S240430
1шт.
20
S118721
NUT
- push on type
2шт.
21
S118720
GUIDE
- cable
2шт.
22
S118723
SHEAVE
- cable
2шт.
23
S240502
CABLE ASSY.
CABLE ASSEMBLY -, Serial Range: link-latches
1шт.
Part of door latch repair kit P/N S240430
1шт.
24
193-73
LOCK WASHER,Ext-Int Tooth, 1/4"
WASHER - lock, external, 1/4"
2шт.
Part of door latch repair kit P/N S240430
1шт.
25
S118722
SPACER
- cable sheave
2шт.
26
195-518
WASHER,1/4", SAE
- flat, 1/4", plated
4шт.
S240430
KIT
- door latch repair, Includes: Ref. 7 - 9, 11, 13 - 15, 16, 18, 19, 23 and 24
1шт.
REF
INSTRUCTION
DOOR ASSEMBLY - cab, continued from figure 408, Includes: Ref. 27 - 46
1шт.
27
S240431
BRACKET - mounting, door handle
1шт.
Part of door latch repair kit P/N S240430
1шт.
28
187-1012
SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"
SCREW - round head, self-tapping, No. 10 - 24 NC x 3/8"
2шт.
Part of door latch repair kit P/N S240430
1шт.
29
S239685
LATCH
- door, lower
1шт.
30
S239684
LATCH
- door, upper
1шт.
31
173-97
SCREW,Sl Rnd Hd, #10 - 24 x 1/2"
MACHINE SCREW - round head, No. 10 - 24 NC x 1/2"
8шт.
32
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
8шт.
33
182-560
SCREW,Cross Pan Hd, 1/4"-20 x 3/4"
MACHINE SCREW - round head, 1/4" - 20 NC x 3/4", use to plug existing holes in door access panel, if used, not shown
4шт.
34
195-518
WASHER,1/4", SAE
- flat, 1/4", used with Ref. 33, not shown
4шт.
35
S117719
KNOB
- door catch
1шт.
36
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, 1/8" x 3/4", Slotted
1шт.
S239655
CATCH
ASSEMBLY - door, Includes: Ref. 37 - 41
1шт.
37
NSS
NOT SOLD SEPARAT
BRACKET - door catch
1шт.
38
NSS
NOT SOLD SEPARAT
STUD - door catch
1шт.
39
N60098
SPRING
- door catch, replaces S117545
1шт.
40
138-61
LOCK PIN,1/8" x 1", Slotted
PIN, 1/8" x 1", Slotted
1шт.
41
195-33
WASHER,1/2"
- flat, 1/2"
1шт.
42
75-48
SCREW,Rd, 1/4" - 20 x 1/2"
MACHINE SCREW - round head, 1/4" - 20 NC x 1/2"
2шт.
43
195-518
WASHER,1/4", SAE
- flat, 1/4"
2шт.
44
S616084
GUARD
- latch cable
1шт.
45
173-97
SCREW,Sl Rnd Hd, #10 - 24 x 1/2"
MACHINE SCREW - round head, No. 10 - 24 NC x 1/2"
7шт.
46
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
7шт.
S240430
KIT
- door latch repair, Includes: Refs. 7 - 9, 11, 13 - 15, 16, 18, 19, 23, 24, 27, 28 and 33
1шт.
