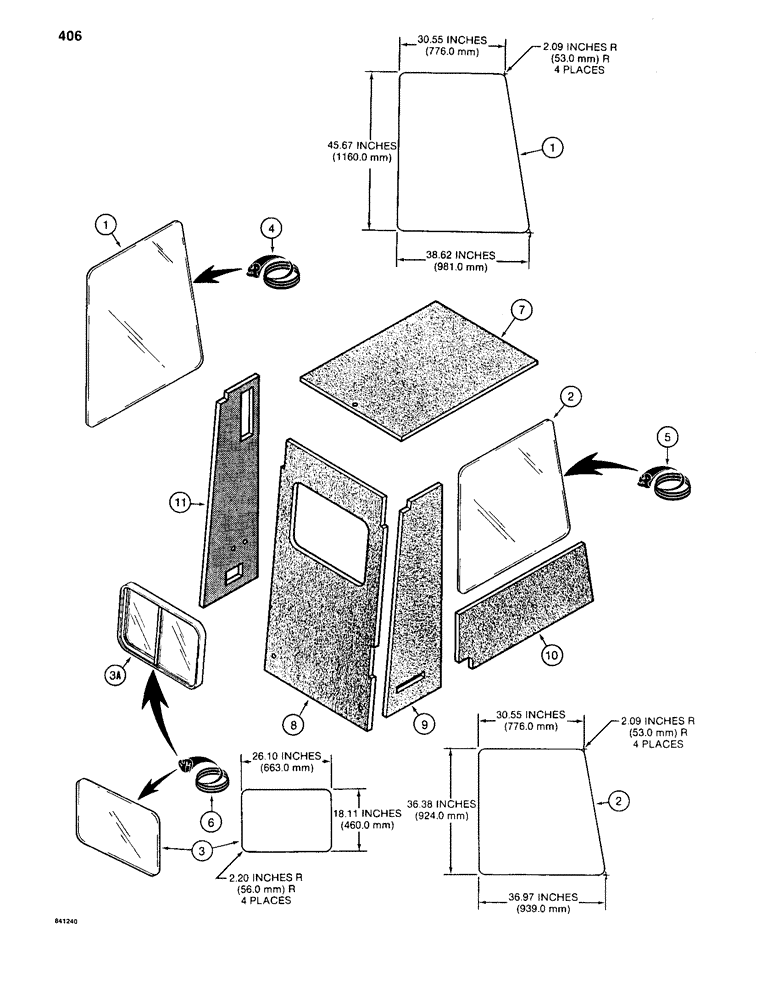

Запчасти Case 880C (406) - CAB WINDOWS, SEALS, AND INSULATION, PIN 6205236 AND AFTER (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

LEXAN - window, in door, included in door assembly

1шт.

Replacement of reference numbers 1 and 2 to be obtained from local source. Material to be 1/4" (6.35 mm) thick Lexan with crowned edges. Tint color before PIN 6205559 is light green. Tint color on PIN 6205559 and after is bronze.

1шт.

2

REF

INSTRUCTION

LEXAN - window, right-hand

1шт.

Replacement of reference numbers 1 and 2 to be obtained from local source. Material to be 1/4" (6.35 mm) thick Lexan with crowned edges. Tint color before PIN 6205559 is light green. Tint color on PIN 6205559 and after is bronze.

1шт.

3

REF

INSTRUCTION

LEXAN - window, rear, non-sliding, if used

1шт.

Replacement of reference numbers 1 and 2 to be obtained from local source. Material to be 1/4" (6.35 mm) thick Lexan with crowned edges. Tint color before PIN 6205559 is light green. Tint color on PIN 6205559 and after is bronze.

1шт.

3a

S516738

WINDOW

ASSEMBLY - sliding, rear, if used

1шт.

4

REF

INSTRUCTION

SEAL - Lexan, used with cab door window, 157.6" (4003 mm) long, cut from S118468, see below

1шт.

5

REF

INSTRUCTION

SEAL - Lexan, used with right-hand cab window, 137.2" (3485 mm) long, cut from S118468, see below

1шт.

6

REF

INSTRUCTION

SEAL - Lexan, used with rear cab window, 84.7" (2151 mm) long, cut from N6492, see below

1шт.

7

S239738

INSULATOR

INSULATION - cab, top, black

1шт.

7

S241506

INSULATOR

INSULATION - cab, top, brown

1шт.

8

S515091

INSULATION - cab, rear, black, used before PIN 6205416

1шт.

8

N60258

INSULATOR

INSULATION - cab, rear, black, used on PIN 6205416 and after

1шт.

8

S516036

INSULATOR

INSULATION - cab, rear, brown

1шт.

9

S239736

INSULATOR

INSULATION - cab, right-hand, rear, black

1шт.

9

S241504

INSULATOR

INSULATION - cab, right-hand, rear, brown

1шт.

10

S239737

INSULATOR

INSULATION - cab, right-hand front, black

1шт.

10

S241505

INSULATOR

INSULATION - cab, right-hand, front, brown

1шт.

11

S239735

INSULATION - cab, left-hand, black, used before PIN 6205416

1шт.

11

N60276

INSULATOR

INSULATION - cab, left-hand, black, used on PIN 6205416 and after

1шт.

11

S241530

INSULATOR

INSULATION - cab, left-hand, brown

1шт.

S118468

SEAL

- window glass, bulk, 600" (15240 mm) long

1шт.

N6492

GASKET

- window glass, bulk, 600" (15240 mm) long

1шт.
