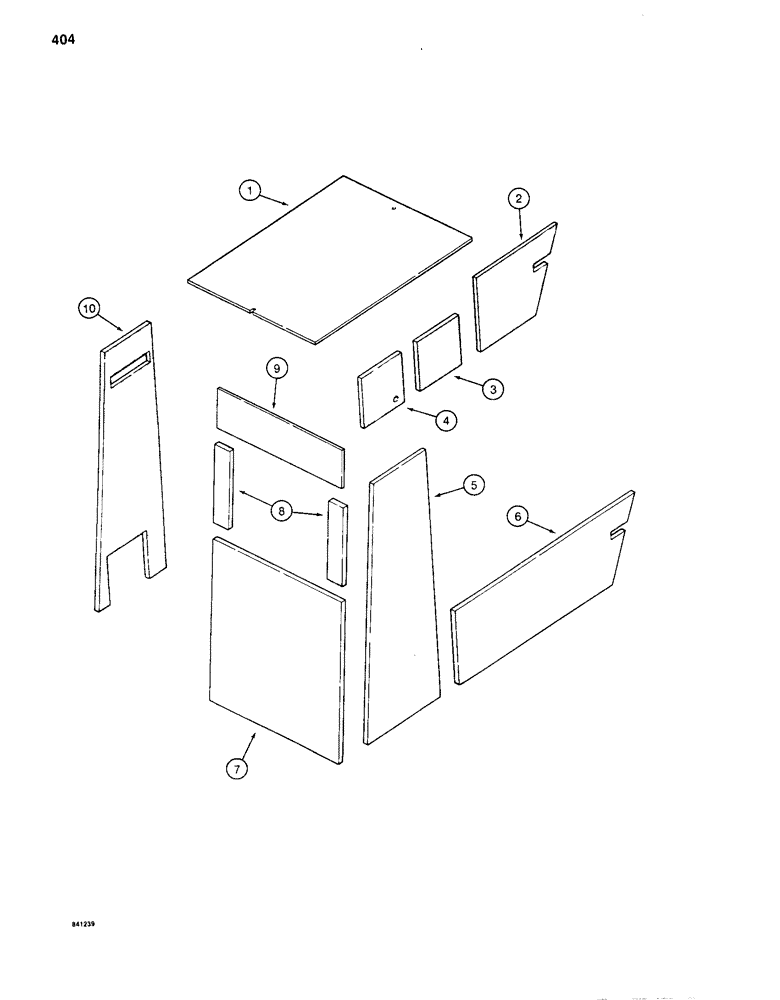

Запчасти Case 880C (404) - CAB INSULATION, BEFORE PIN 6205236 (05) - UPPERSTRUCTURE CHASSIS

1

S231409

SHROUD ASSY.

INSULATION - cab, top

1шт.

2

S108110

SLEEVE CYLINDER

INSULATION - cab, lower front, left-hand

1шт.

3

S108112

INSULATOR

INSULATION - door, included with door assembly, see Figure 396

1шт.

4

S108113

INSULATOR

INSULATION - door, included with door assembly, see Figure 396

1шт.

5

S108109

SLEEVE CYLINDER

INSULATION - rear, right-hand

1шт.

6

S108108

SHROUD ASSY.

INSULATION - lower front, right-hand

1шт.

7

S108105

SLEEVE CYLINDER

INSULATION - lower rear

1шт.

8

S108107

SLEEVE CYLINDER

INSULATION - rear, beside window

2шт.

9

S108106

SLEEVE CYLINDER

INSULATION - rear, upper

1шт.

10

S108111

SLEEVE CYLINDER

INSULATION - rear, left-hand

1шт.

S95517

ADHESIVE

- 30 oz. container

1шт.
