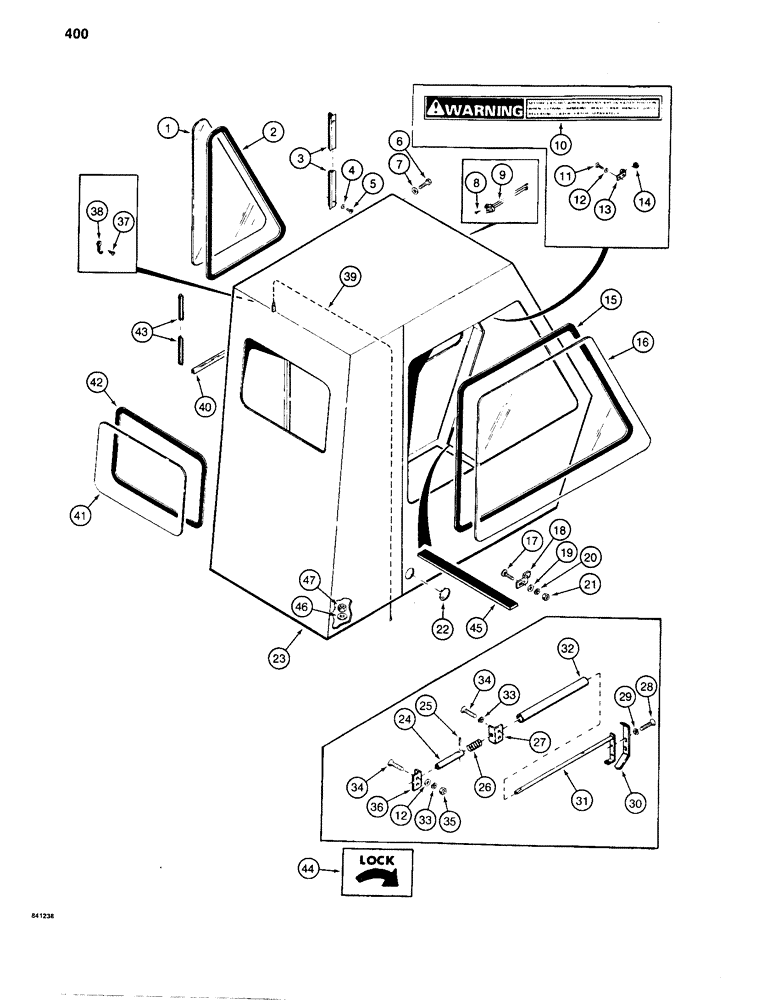

Запчасти Case 880C (400) - CAB FRAME AND WINDOWS, BEFORE PIN 6205236 (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

LEXAN - window, see Figure 394

1шт.

2

REF

INSTRUCTION

SEAL - window, 102" (2591 mm) long, cut from S118468, see below

1шт.

3

S108310

RETAINER - door

1шт.

4

195-101

WASHER,3/16"

- flat, 3/16"

6шт.

5

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

MACHINE SCREW - No. 8 - 32 NC x 1/2"

6шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

S49599

WASHER

- seal, 3/8"

3шт.

8

151-526

RIVET,Pop, 1/8" x .337"

POP RIVET - 1/8" x 3/16"

2шт.

9

S239036

SOCKET AND HARNESS - cab

1шт.

10

S232929

DECAL - window warning

1шт.

11

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

MACHINE SCREW - Phillips head, 1/4" - 20 NC x 3/4"

4шт.

12

195-102

WASHER,1/4"

- flat, 1/4"

6шт.

13

S236544

BRACKET - bumper

2шт.

14

S109513

BUMPER - rubber

2шт.

15

REF

INSTRUCTION

SEAL - window, 156" (3962 mm) long, cut from S118468, see below

1шт.

16

REF

INSTRUCTION

LEXAN - window, see Figure 394

1шт.

17

111-342

CARRIAGE BOLT - 3/8" - 16 NC x 1"

8шт.

18

S231580

BRACKET - right-hand

2шт.

18

S231581

BRACKET - left-hand

2шт.

19

195-104

WASHER,3/8"

- flat, 3/8"

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

22

205-70

HOLE PLUG BUTTON,2 1/2"

PLUG - button, 2-1/2" diameter

1шт.

23

NSS

NOT SOLD SEPARAT

CAB - weldment

1шт.

24

S108308

TUBE,0.75" OD x 6.41" L

- small, door retainer

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

26

S109506

SPRING

- door retainer

1шт.

27

S108307

BRACKET

- door retainer

1шт.

28

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

MACHINE SCREW - pan head, 1/4" - 20 NC x 1/2"

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

S514584

BRACKET

- door retainer

1шт.

31

S231584

RETAINER

- door weldment

1шт.

32

S108309

TUBE,1" OD x 9.44" L

- retainer

1шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

34

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

MACHINE SCREW - pan head, 1/4" - 20 NC x 5/8"

4шт.

35

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

36

S108307

BRACKET

- door retainer

1шт.

S118468

SEAL

- bulk, 360" (9.1 m) long

1шт.

S95517

ADHESIVE

- 30 oz. container, used on cab window seals

1шт.

345-22

ADHESIVE

- 5 oz. container, used with seal on Ref. 3

1шт.

37

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

MACHINE SCREW - pan head, No. 10 - 32 NF x 3/4"

2шт.

38

S61769

HOOK

- coat

1шт.

39

S231612

WIRE ASSEMBLY - cab, 168" (4267 mm) long

1шт.

40

REF

INSTRUCTION

TRIM - door opening, bottom, 27.5" (698 mm) long, cut from F64277, see below

1шт.

41

REF

INSTRUCTION

LEXAN - window, see Figure 394

1шт.

42

REF

INSTRUCTION

SEAL - window, 84" (2134 mm) long, cut from S118468, see below

1шт.

43

REF

INSTRUCTION

SEAL - trim, 252" (6400 mm) cut from S118469, see below

1шт.

44

S117100

DECAL

- lock

1шт.

45

REF

INSTRUCTION

SEAL - trim, 252" (6400 mm) long, cut from S118470, see below

1шт.

46

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

11шт.

46

S95569

WASHER

- flat, 1/2", hardened

3шт.

47

131-208

SPECIAL NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

14шт.

F64277

SEAL

TRIM - edge, bulk, 570" (14.5 m) long

1шт.

S118468

SEAL

- bulk, 360" (9.1 m) long

1шт.

S118469

HOSE

SEAL - bulk, 300" (7.6 m) long

1шт.

S118470

RUBBER JOINT

SEAL - bulk, 600" (15.2 m) long

1шт.

S95517

ADHESIVE

- 30 oz. container, used on cab window seals

1шт.

345-22

ADHESIVE

- 5 oz. container, used with seal on Ref. 3

1шт.
