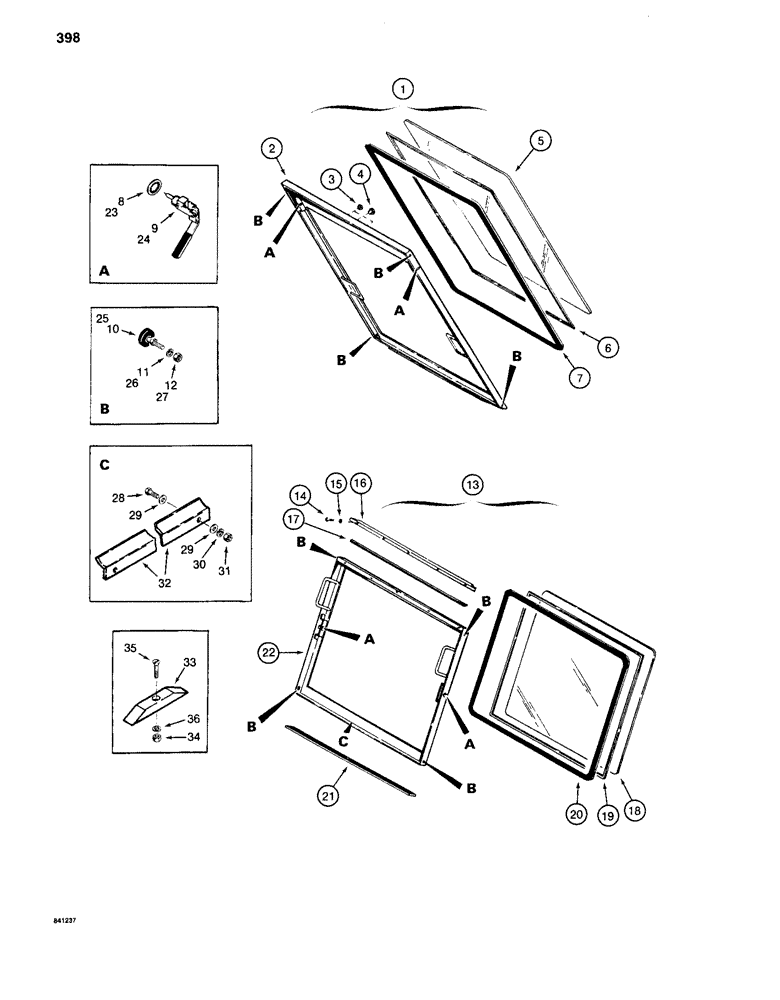

Запчасти Case 880C (398) - CAB WINDSHIELD, BEFORE PIN 6205236 (05) - UPPERSTRUCTURE CHASSIS

1

S610784

WINDOW

WINDSHIELD ASSEMBLY - upper, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - windshield

1шт.

3

353-260

PLUG - plastic, 5/16" Cap, 5/16"-24

2шт.

4

353-265

PLUG - plastic, 3/4" Cap, 3/4"-16

1шт.

5

REF

INSTRUCTION

GLASS - upper windshield, see Figure 394

1шт.

6

REF

INSTRUCTION

STRIP - filler, 145" (3683 mm) long, cut from S118471

1шт.

7

REF

INSTRUCTION

SEAL - glass setting, 145" (3683 mm) long, cut from S118471

1шт.

8

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

2шт.

9

S231570

CLAMP

- windshield, right-hand

1шт.

9

S231571

CLAMP

- windshield, left-hand

1шт.

10

D70621

ROLLER

- rubber

4шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

13

S615427

WINDOW ASSY

WINDSHIELD ASSEMBLY - lower, Includes: Ref. 14 - 32

1шт.

14

S60105

MACHINE SCREW - 1/4" - 28 NF x 1/2"

5шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

16

S511205

BRACKET

- windshield

1шт.

17

REF

INSTRUCTION

CHANNEL - rubber, 30" (762 mm) long, cut from S118516

1шт.

18

REF

INSTRUCTION

LEXAN - lower windshield, see Figure 394

1шт.

19

REF

INSTRUCTION

STRIP - filler, 73" (1854 mm) long, cut from S118471

1шт.

20

REF

INSTRUCTION

SEAL - glass setting, 73" (1854 mm) long, cut from S118472

1шт.

21

REF

INSTRUCTION

SEAL - lower, 62" (1575 mm) long, cut from S118473

1шт.

22

NSS

NOT SOLD SEPARAT

FRAME - windshield

1шт.

23

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

2шт.

24

S231570

CLAMP

- windshield, right-hand

1шт.

24

S231571

CLAMP

- windshield, left-hand

1шт.

25

D70621

ROLLER

- rubber

4шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

28

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

29

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.

32

S236870

RETAINER

- windshield

2шт.

33

S117096

STOP - cam follower

2шт.

34

7770

NUT,Hex, 1/4 - 20, Cl 5

- hex, 1/2" - 20 NC

2шт.

35

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

MACHINE SCREW - flat head, 1/4" - 20 NC x 1/2"

2шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

S118471

STRIP

- filler, 180" (4572 mm) long

1шт.

S118472

SEAL

SEAL - glass setting, 180" (4572 mm) long

1шт.

S118473

RUBBER JOINT

SEAL - strip, 120" (3048 m m) long

1шт.

S118516

SEAL

CHANNEL - rubber, 60" (1524 mm) long

1шт.

S95517

ADHESIVE

- 30 oz. container, used on cab window seals

1шт.
