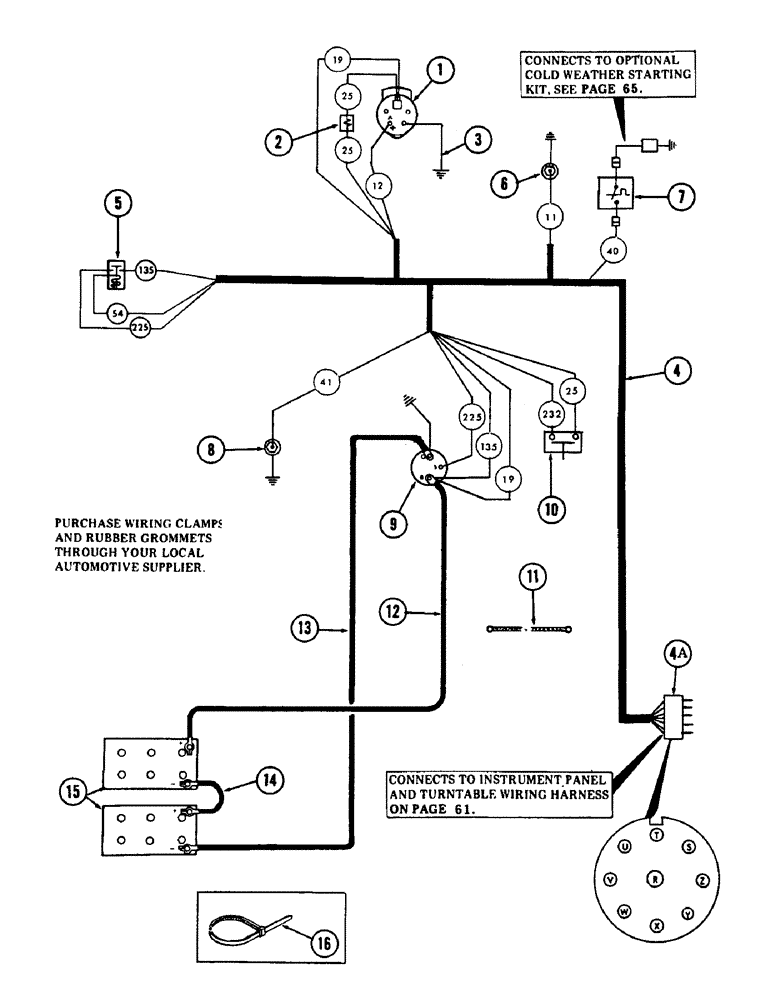

Запчасти Case 880B (056) - ENGINE WIRING HARNESS, (USED ON UNITS WITH PIN 6201617 AND 6201619 AND AFTER) (06) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR, 24 volt with regulator - (For breakdown, see Figures 48 and 50)

1шт.

A41361

PULLEY

alternator

1шт.

2

S237284

RESISTOR

1шт.

3

S214163

WIRE, jumper 12 gauge wire x 8" long - (Alternator ground to engine) - (Use existing mounting hardware)

1шт.

4

S614194

WIRING HARNESS, engine

1шт.

4a

S99515

PLUG

CONNECTOR, electrical - (9 contact) - (Male)

1шт.

5

A18501

SOLENOID SWITCH

RELAY - (Mounts on ref 18 on figure 68) (Replaces D31479)

1шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

195-516

WASHER,#12

flat - 1/4"

4шт.

6

S108396

SENDER UNIT

SENDING UNIT, engine temperature

1шт.

7

S205216

THERMOSTART

KIT, cold weather starting - (Optional) - (See breakdown on Figure 64)

1шт.

8

S108398

TRANSMITTER

SENDING UNIT, oil pressure

1шт.

9

NSS

NOT SOLD SEPARAT

STARTER - (furnished with engine)

1шт.

10

S63884

SWITCH

pressure

1шт.

217-1160

TEE,1/8"-27 Female

- 1/8" x 27 NPT

1шт.

11

S228983

STRAP

CABLE, ground -, Serial Range: engine-turntable

1шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

1шт.

195-103

WASHER,5/16"

flat - 3/8"

1шт.

12

S223593

CABLE PULLING GRIP

CABLE, battery -, Serial Range: (Starter-battery)

1шт.

13

S234973

CABLE PULLING GRIP

CABLE, battery - (Battery ground to starter ground)

1шт.

14

A145205

WET BATTERY

- (12 V, size 31)

2шт.

16

S73387

CLIP

NUT, self locking - 3/8" - 16 NC

1шт.
