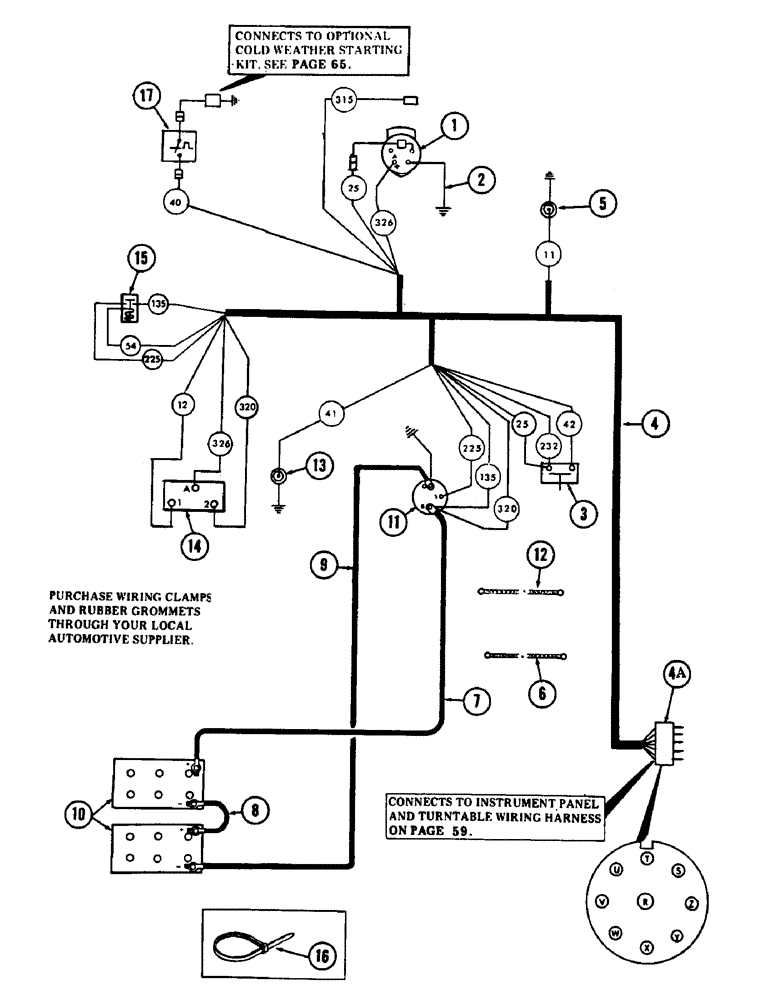

Запчасти Case 880B (054) - ENGINE WIRING HARNESS, (USED ON UNITS WITH PIN 6201601 THRU 6201616 AND 6201618) (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
S512737
ALTERNATOR
- 12 volt with regulator
1шт.
S113988
REGULATOR
1шт.
A41361
PULLEY
alternator
1шт.
2
S214163
WIRE, jumper - 12 gauge wire x 8" long - (Alternator ground to engine) - (Use existing mounting hardware)
1шт.
3
S63884
SWITCH
pressure
1шт.
4
S609758
WIRING HARNESS, engine, Includes: Ref. 4A
1шт.
4a
S99515
PLUG
CONNECTOR, electrical - (9 contact) - (Male)
1шт.
5
S108396
SENDER UNIT
SENDING UNIT, engine temperature
1шт.
6
S228983
STRAP
CABLE, ground -, Serial Range: (Engine-turntable)
1шт.
195-103
WASHER,5/16"
flat - 1/8"
1шт.
131-52
NUT,3/8"-16, GC
NUT, self locking - 3/8" NC
1шт.
7
S223593
CABLE PULLING GRIP
CABLE, battery -, Serial Range: (Starter-battery)
1шт.
8
S235493
NEG BATTERY CABLE
CABLE, battery -, Serial Range: (Battery-battery)
1шт.
9
S234973
CABLE PULLING GRIP
CABLE, battery - (Battery ground to starter ground)
1шт.
10
A145205
WET BATTERY
- (12 V)
2шт.
11
NSS
NOT SOLD SEPARAT
STARTER - (Furnished with engine)
1шт.
12
S228983
STRAP
CABLE, ground - (Starter, Serial Range: ground-engine)
1шт.
131-52
NUT,3/8"-16, GC
NUT, self locking - 3/8" NC
1шт.
195-103
WASHER,5/16"
flat, - 3/8"
1шт.
13
S108398
TRANSMITTER
SENDING UNIT, oil pressure
1шт.
14
S229871
BOX
CONTROL, dual voltage charge - 12/24 volt
1шт.
174-97
SCREW,Sl Rnd Hd, #10 - 32 x 1/2"
machine - No. 10 NF x 1/2"
4шт.
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
4шт.
129-37
NUT,#10-32
4шт.
15
S26663
SOLENOID
RELAY - (Mounts to item 18 on page 70)
1шт.
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
2шт.
86625061
NUT,1/4"-20, GB
NUT, self locking - 1/4" NC
2шт.
195-516
WASHER,#12
flat - 1/4"
4шт.
16
S73387
CLIP
TIE, cable - (Use to secure battery cables and wiring harness)
1шт.
17
S205216
THERMOSTART
KIT, cold weather starting - (Optional) - (See breakdown, on Figure 64)
1шт.
