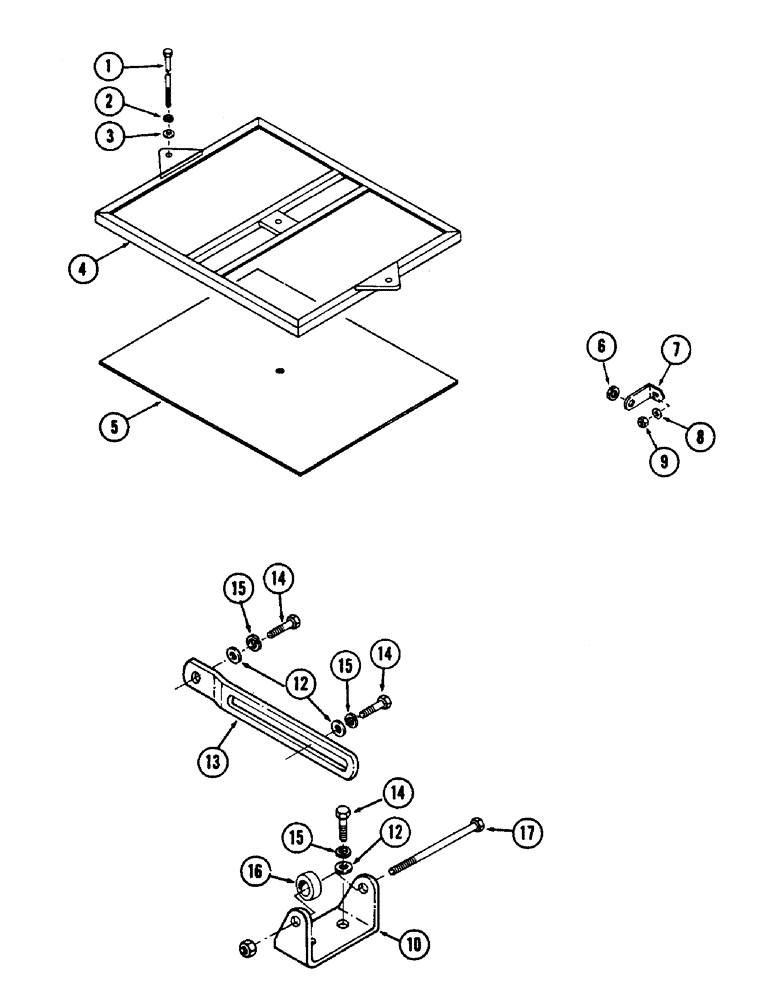

Запчасти Case 880B (052) - ELECTRICAL MOUNTING PARTS (06) - ELECTRICAL SYSTEMS

1

113-2446

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

3шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

S95569

WASHER

flat - 1/2"

3шт.

4

S511694

BATTERY

BRACKET, battery hold down

1шт.

5

S235290

GASKET

PAD, rubber (Under batteries)

1шт.

6

S64752

NUT

- (Mounts, Serial Range: horn-bracket)

1шт.

7

S203190

BRACKET

horn mounting

1шт.

8

195-102

WASHER,1/4"

flat 1/4"

1шт.

9

86625061

NUT,1/4"-20, GB

NUT, self-locking - 1/4" NC

1шт.

10

A160391

BRACKET

alternator mounting to engine - (Replaces A38492)

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

195-525

WASHER,3/8", SAE

flat - 3/8"

4шт.

13

S219335

BRACKET

STRAP, alternator adjusting

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

S113717

KIT

BUSHING

1шт.

17

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

18

131-463

NUT,3/8"-16

NUT, self locking - 3/8" NC

1шт.
