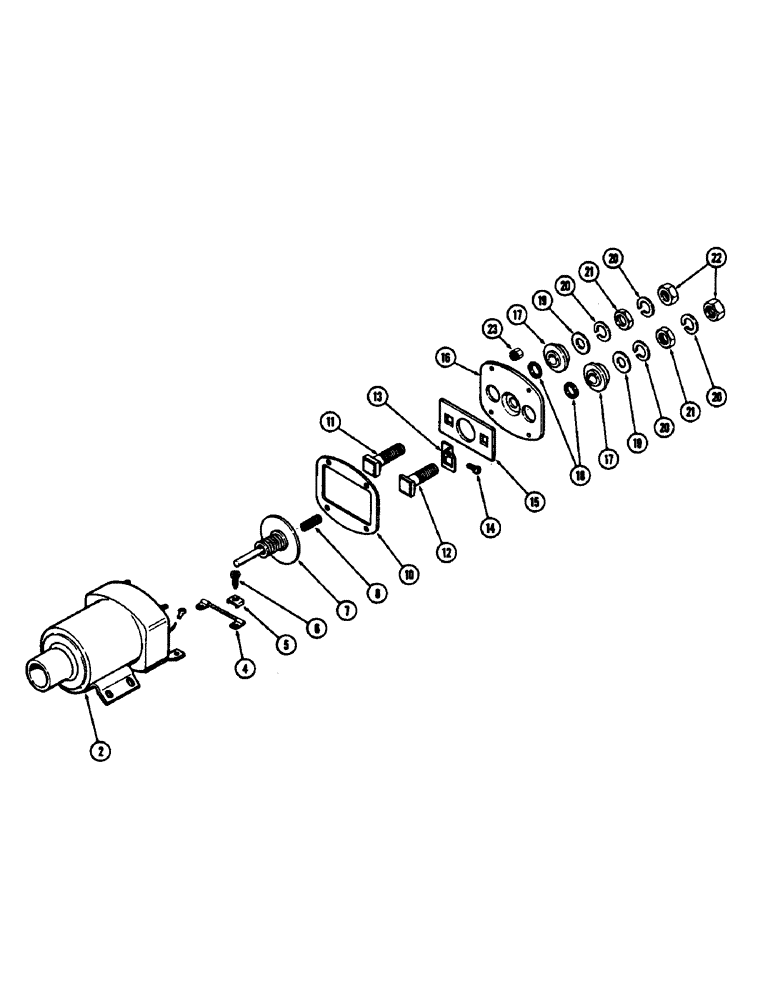

Запчасти Case 880B (046) - A42376 SOLENOID (06) - ELECTRICAL SYSTEMS

A42376

SWITCH

SOLENOID ASSEMBLY - (Delco-Remy #1119848), Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE AND COIL ASSEMBLY - (Order A42376)

1шт.

4

A42408

ELECTRICAL WIRE

LEAD - ground

1шт.

5

A42407

CLAMP

CLIP - terminal

2шт.

6

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

2шт.

7

D32498

CONTACT

DISC ASSEMBLY - contact

1шт.

8

A42411

VALVE SPRING

SPRING - contact disc return

1шт.

A42412

PLATE

ASSEMBLY, Includes: Ref. 10 - 22

1шт.

10

A42260

GASKET

- solenoid

1шт.

11

A42413

STUD

- battery terminal, 5/8" thread length

1шт.

12

D32506

STUD

- starter terminal, 1-3/16" thread length

1шт.

13

D29910

SUPPORT

- coil lead

1шт.

14

175-56

SCREW - #10 x 3/16" NC truss head Slotted Truss Hd, #6-32 x 3/16"

1шт.

15

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

16

A42410

PLATE

- terminal

1шт.

17

A43701

BUSHING

- terminal studs

2шт.

18

D32510

BUSHING

- terminal studs, inside

2шт.

19

D30006

WASHER

- terminal studs, outside

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

21

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

23

D32500

NUT

ASSEMBLY - (Includes lock washer)

4шт.
