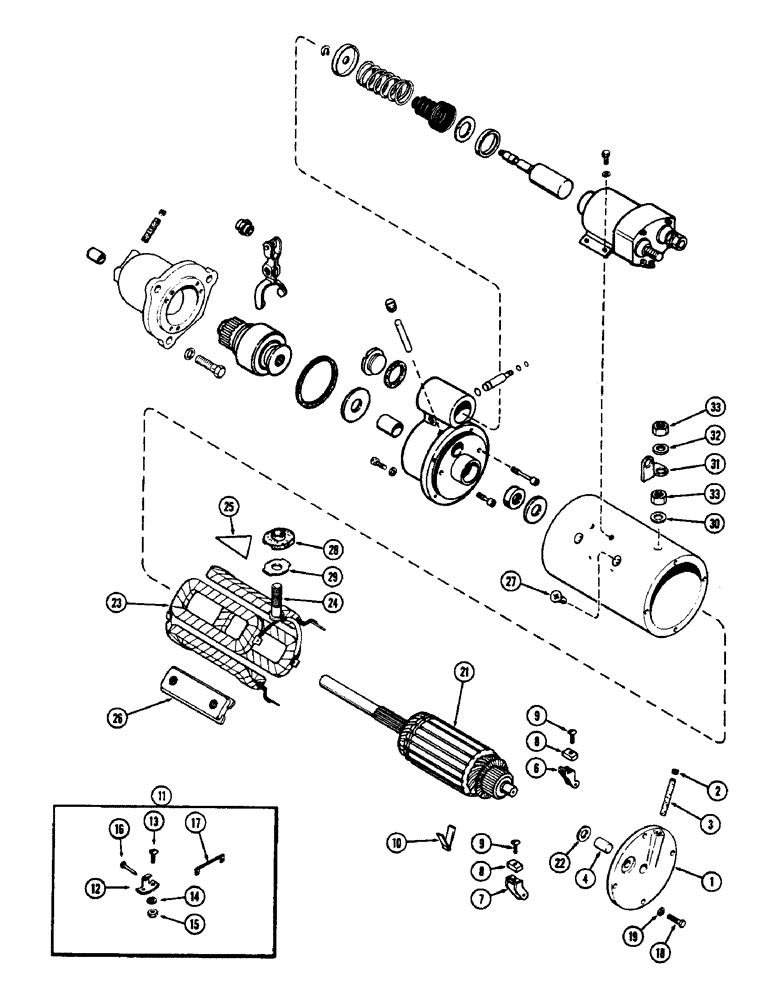

Запчасти Case 880B (042) - R26136 STARTER (06) - ELECTRICAL SYSTEMS

R26136

STARTER MOTOR

STARTER ASSEMBLY - (Delco-Remy #1113403), Includes: Ref. 1 - 33

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

A47498

STARTING MOTOR

STARTER ASSEMBLY - remanufactured

1шт.

Part number A47499 used only to return original equipment for credit on remanufactured starter assembly.

1шт.

A47500

REMAN-STARTER

Reman For New P/N A47498

1шт.

A47499

CORE-STARTER

Return Number

1шт.

, starter

FALSE

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

1

A45003

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 2 and 3

1шт.

2

221-1849

PLUG

PLUG - oil wick hole

1шт.

3

R15023

WICK

WICK - oil

1шт.

4

A42323

BUSHING

BUSHING - frame

1шт.

6

R21590

HOLDER

HOLDER - brush, insulated

2шт.

7

A40217

HOLDER

HOLDER - brush, ground

2шт.

8

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - #8-32 x 13/16" fillister head

2шт.

10

R15025

SPRING

SPRING - brush tension

2шт.

11

A47072

BRUSH, COMMUTATOR

BRUSH KIT - brush support, Includes: Ref. 12 - 17

2шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT - brush

1шт.

13

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - #10 x 3/4" NF truss head

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

R15032

X

NUT - #10 NF hex

2шт.

16

R15035

PIN

PIN - brush holder

1шт.

17

R15030

ELECTRICAL WIRE

WIRE LEAD - brush

1шт.

18

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

21

A40909

ARMATURE

ARMATURE - starter

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust, 9/16" x 1" x 1/16" (14.29 x 25.40 x 1.59 MM)

1шт.

23

A43860

COIL

COIL ASSEMBLY - field, Includes: Ref. 24

1шт.

24

A40896

STUD

STUD - starter terminal, 1/2" NC

1шт.

25

A41977

RUBBER INSULATOR

INSULATION - coil terminal stud

1шт.

26

R15115

SHOE

SHOE - pole

4шт.

27

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - 3/8" x 5/8" NF flat head

8шт.

28

A41925

BUSHING

BUSHING - stud insulating (In frame)

1шт.

29

D30005

INSULATOR

INSULATOR - stud, 1/2" x 1" x 3/32" (12.70 x 25.40 x 2.38 MM)

1шт.

30

D30006

WASHER

WASHER - stud, 1/2" x 7/8" x 1/32" (12.70 x 22/23 x 0.79 MM)

1шт.

31

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

32

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

1шт.

33

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.
