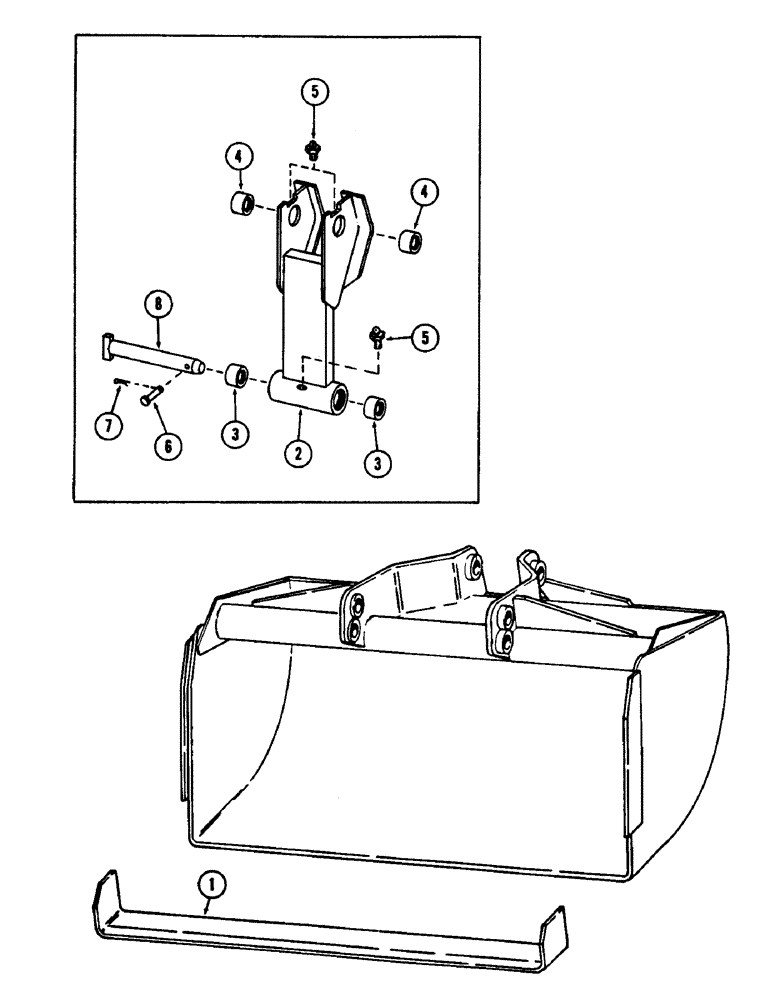

Запчасти Case 880B (274) - DITCH BUCKET (05) - UPPERSTRUCTURE CHASSIS

S605002

BUCKET, ditch - 60", Includes: Ref. 1

1шт.

1

S206737

EDGE

cutting

1шт.

2

S223543

LINK

Includes: Ref. 3 - 5

1шт.

3

S202134

BUSHING

2шт.

4

S202073

BUSHING

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

3шт.

6

S61972

PIN

clevis - 1/2" x 3.266" grip length

1шт.

7

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

8

S223986

PIN

- 2"

1шт.
