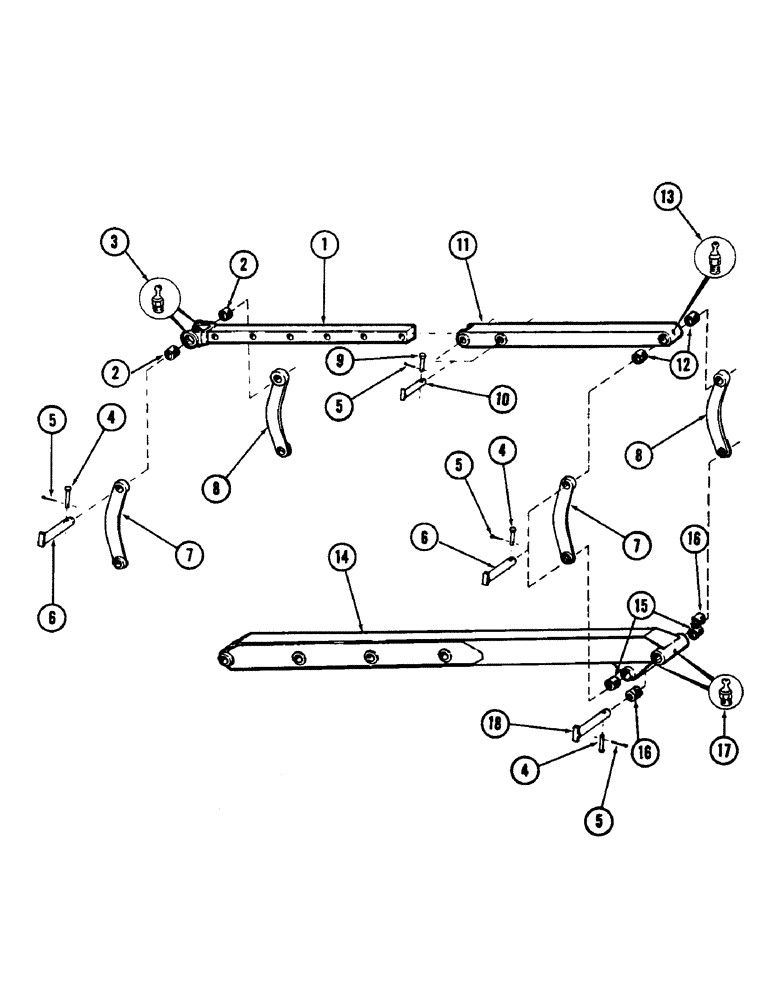

Запчасти Case 880B (270) - "Y" TOOL BOOM EXTENSION (05) - UPPERSTRUCTURE CHASSIS

1

S501865

LINK, adjustable - inner, Includes: Ref. 2 and 3

1шт.

2

S202070

BUSHING

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (Straight)

2шт.

4

S61973

AXLE PIN

PIN, clevis - 1/2" dia. x 3.766" grip length

4шт.

5

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

6шт.

6

S209889

PIN

3шт.

7

S209893

LEVER

- (Right hand)

2шт.

8

S209894

LEVER

- (Left hand)

2шт.

9

S10785

PIN

clevis - 3/8" dia. x 3.266" grip length

2шт.

10

S206139

PIN

2шт.

11

S502858

LINK, adjustable - outer, Includes: Ref. 12 and 13

1шт.

12

S202073

BUSHING

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (Straight)

1шт.

14

S605008

EXTENSION, tool boom, Includes: Ref. 15 - 17

1шт.

15

S202071

BUSHING

2шт.

16

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (Straight)

3шт.

18

S213911

PIN

- (1.98" dia.)

1шт.
