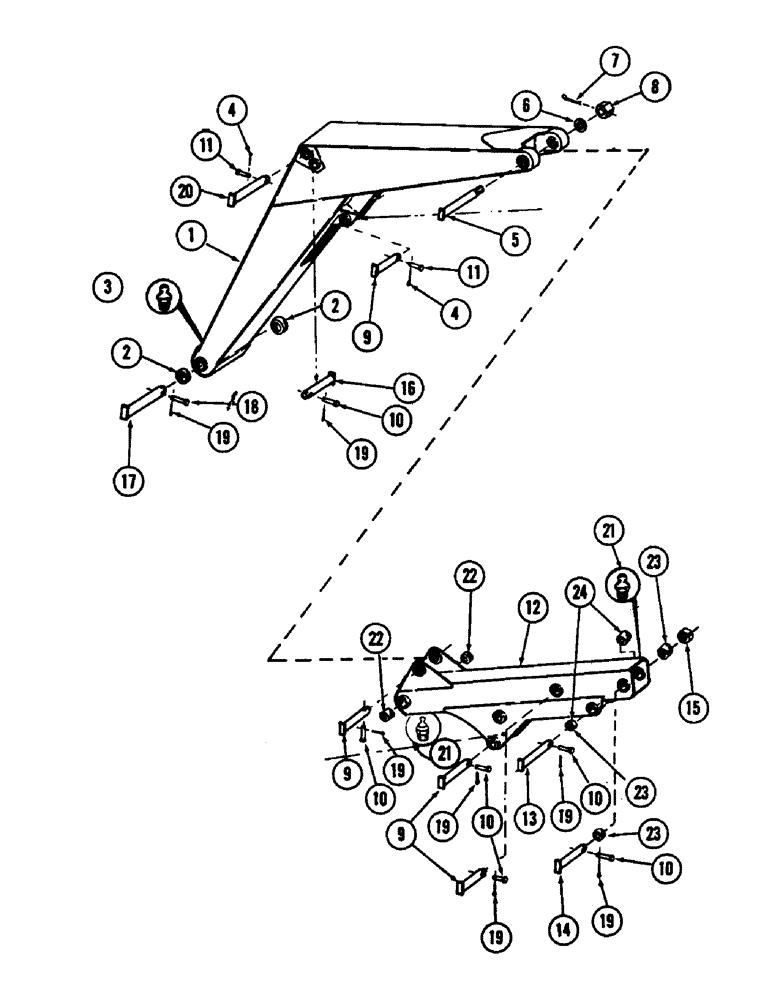

Запчасти Case 880B (268) - "Y" MAIN BOOM AND TOOL BOOM (05) - UPPERSTRUCTURE CHASSIS

1

S954164

BOOM, main, Includes: Ref. 2 and 3

1шт.

2

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (Straight)

1шт.

4

132-325

PIN, cotter - 7/64" x 1" long

2шт.

5

S220250

PIN ASSY.

PIN

1шт.

6

95-40

WASHER,2 1/2" x 5" x .238"

flat - 2-5/8"

1шт.

7

132-161

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), 1/4" x 3 1/2"

1шт.

8

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT, slotted - 2" NC

1шт.

9

S210261

PIN

4шт.

10

S61972

PIN

clevis - 1/2" x 3.266" grip length

6шт.

11

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

2шт.

12

S237879

BOOM, tool - (Supersedes S58038)

1шт.

ANOTHER TOOL BOOM USED(NOT A SUB) PART S614229

1шт.

13

S209889

PIN

1шт.

14

S201018

PIN

1шт.

15

S63255

COLLAR

1шт.

16

S220225

PIN ASSY.

PIN

1шт.

17

S201023

PIN

1шт.

18

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 4.516" grip length

1шт.

19

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

20

S201024

PIN

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (Straight)

2шт.

22

S202071

BUSHING

2шт.

23

S202070

BUSHING

2шт.
