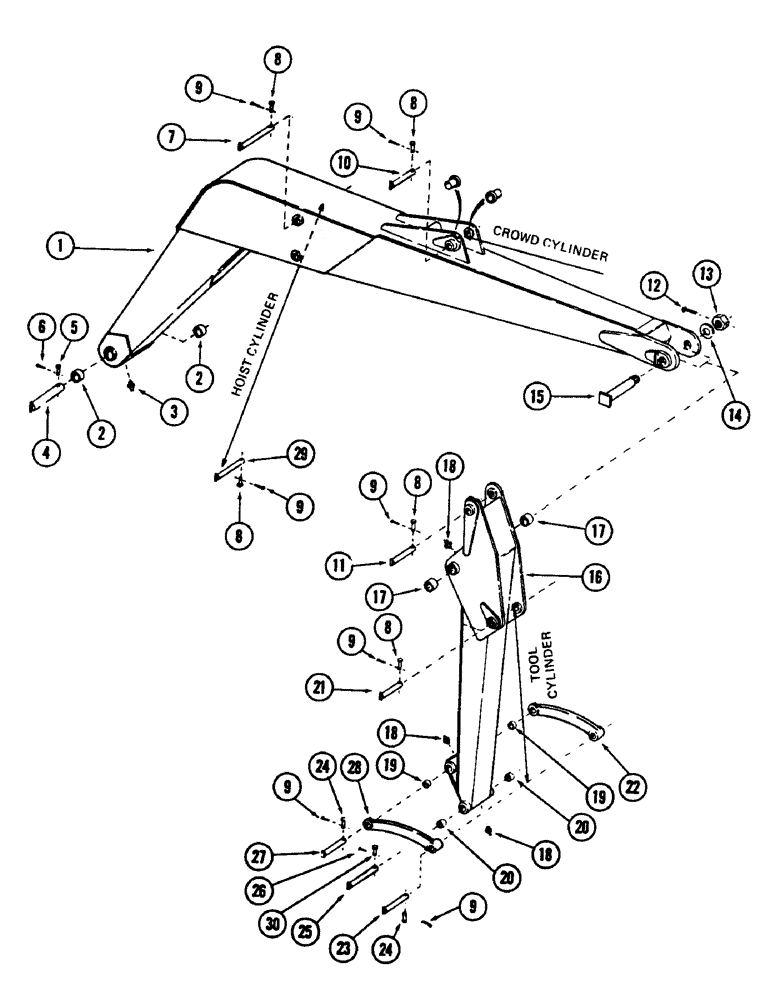

Запчасти Case 880B (266) - "E" BOOM, DIPPERSTICK AND PINS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
S954058
BOOM
main, Includes: Ref. 2 and 3
1шт.
2
S210602
BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L
2шт.
3
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING, lube - 1/8" NPT - (Straight)
1шт.
4
S201023
PIN
- main, Serial Range: boom-turntable
1шт.
5
S61976
CLEVIS PIN
PIN, clevis - 5/8" dia. x 4.616" grip length
1шт.
6
132-50
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
7
S201024
PIN
- hoist cylinder to main boom
1шт.
8
S61972
PIN
clevis - 1/2" dia. x 3.266" grip length
5шт.
9
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
7шт.
10
S209889
PIN
- crowd cylinder, Serial Range: base-boom
1шт.
11
S209889
PIN
- crowd, Serial Range: cylinder-dipper
1шт.
13
25-3032
SLOTTED NUT,2"-4.5, G5, Hvy
NUT, hex. slotted - 2" NC
1шт.
14
95-40
WASHER,2 1/2" x 5" x .238"
flat - 2"
1шт.
15
S220250
PIN ASSY.
PIN, shoulder - dipper to main boom
1шт.
16
S953567
DIPPER
STICK, Includes: Ref. 17 - 20
1шт.
17
S210602
BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L
2шт.
18
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING, lube - 1/8" NPT - (Straight)
3шт.
19
S202070
BUSHING
2шт.
20
S202137
BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L
2шт.
21
S209889
PIN
- tool cylinder, Serial Range: base-dipper
1шт.
22
S209894
LEVER
tool - (Left hand)
1шт.
23
S209889
PIN
- tool cylinder, Serial Range: rod-lever
1шт.
24
S61973
AXLE PIN
PIN, clevis - 1/2" dia. x 3.766" grip length
2шт.
25
S213911
PIN
-, Serial Range: attachment-dipperstick
1шт.
26
132-69
COTTER PIN,5/32" x 1"
Pin, Split (Cotter), 5/32" x 1"
1шт.
27
S209889
PIN
-, Serial Range: lever-dipperstick
1шт.
28
S209893
LEVER
tool - (Right hand)
1шт.
29
S220225
PIN ASSY.
PIN - hoist, Serial Range: cylinder-turntable
1шт.
30
S61974
PIN
clevis - 1/2" dia. x 4.266" grip length
1шт.
S80405
left
1шт.
S80406
right
1шт.
Выбрано товаров: 32
