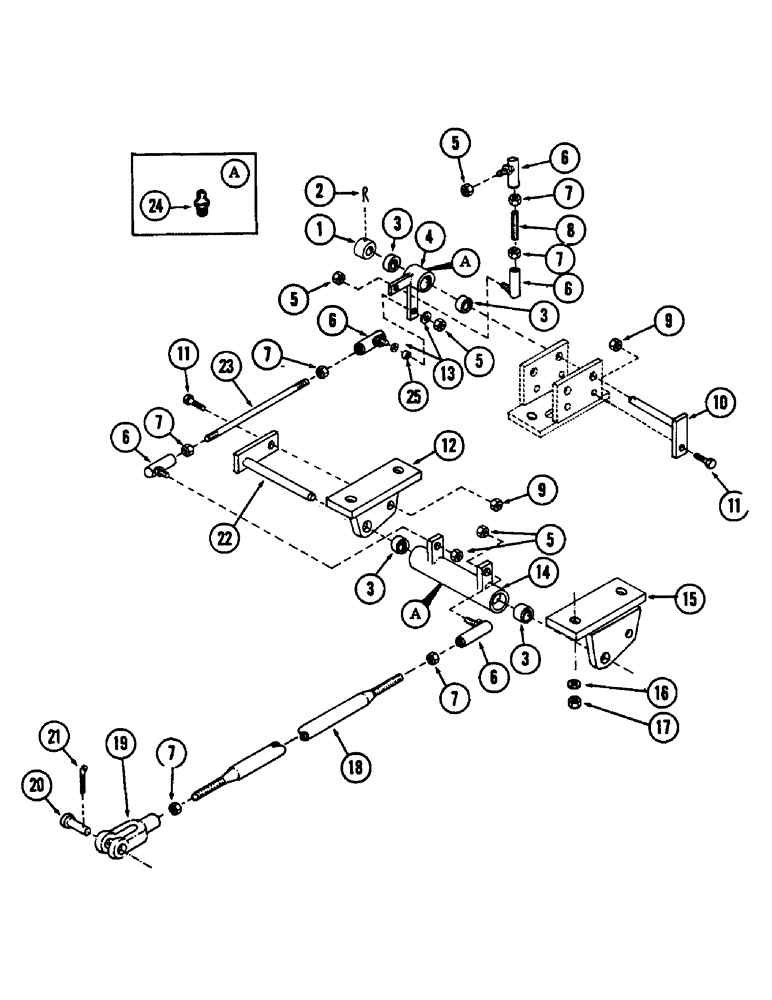

Запчасти Case 880B (256) - WRIST-O-TWIST CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S88670

SPACER

1шт.

2

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

3

A30586

NEEDLE BEARING

BEARING, needle

4шт.

4

S216744

BELLCRANK

1шт.

5

131-493

NUT

self locking - 3/8" - 24 NF

5шт.

6

S215594

BALL

JOINT, ball

5шт.

7

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

6шт.

8

S87534

ROD

connecting

1шт.

9

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

2шт.

10

S219056

SHAFT

1шт.

11

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

12

S218943

BRACKET

1шт.

13

195-525

WASHER,3/8", SAE

plain - 13/32"

2шт.

14

S220208

BELLCRANK

1шт.

15

S218944

BRACKET

1шт.

16

95-8

WASHER,1/2"

flat 1/2"

4шт.

17

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

4шт.

18

S219275

ROD

connecting

1шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

20

S10768

PIN

clevis - 3/8" dia. x 1.016" grip length

1шт.

21

132-67

COTTER PIN,5/32" x 3/4"

PIN, cotter - 5/32" dia. x 1"

1шт.

22

S218963

SHAFT

1шт.

23

S235853

ROD, connecting

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

25

S40815

BEARING, NEEDLE,0.375" ID x 0.5630" OD x 0.312"

1шт.
