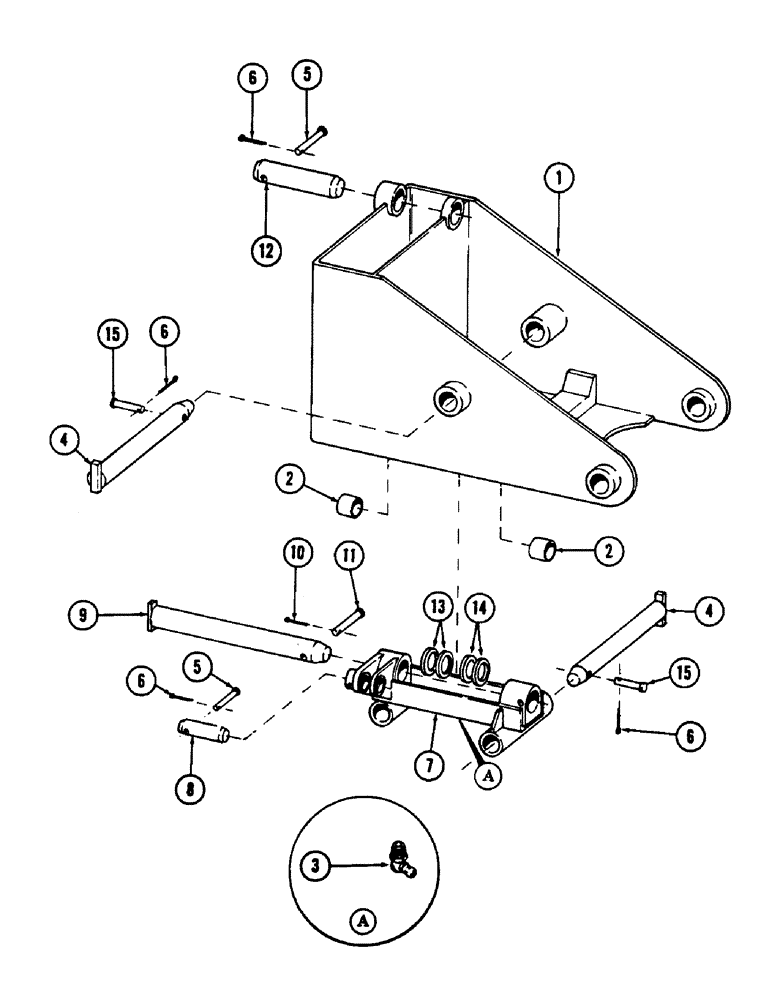

Запчасти Case 880B (254) - WRIST-O-TWIST (05) - UPPERSTRUCTURE CHASSIS

1

S608074

FRAME

upper, Includes: Ref. 2

1шт.

2

S202163

BUSHING

2шт.

3

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING, lube - 1/8" NPT x 65 degrees

1шт.

4

S213911

PIN

2шт.

5

S61970

PIN

clevis - 1/2" x 2.516" grip length

2шт.

6

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

4шт.

7

S509545

HINGE

lower

1шт.

8

S75299

PIN

1шт.

9

S201022

PIN

1шт.

10

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

11

S61976

CLEVIS PIN

PIN, clevis - 5/8" dia. x 4.516" grip length

1шт.

12

S74766

PIN

1шт.

13

S88992

WASHER

- (Used as shim)

1шт.

14

S88993

WASHER

- (Used as shim)

1шт.

15

S61972

PIN

clevis - 1/2" x 3.266" grip length

2шт.
