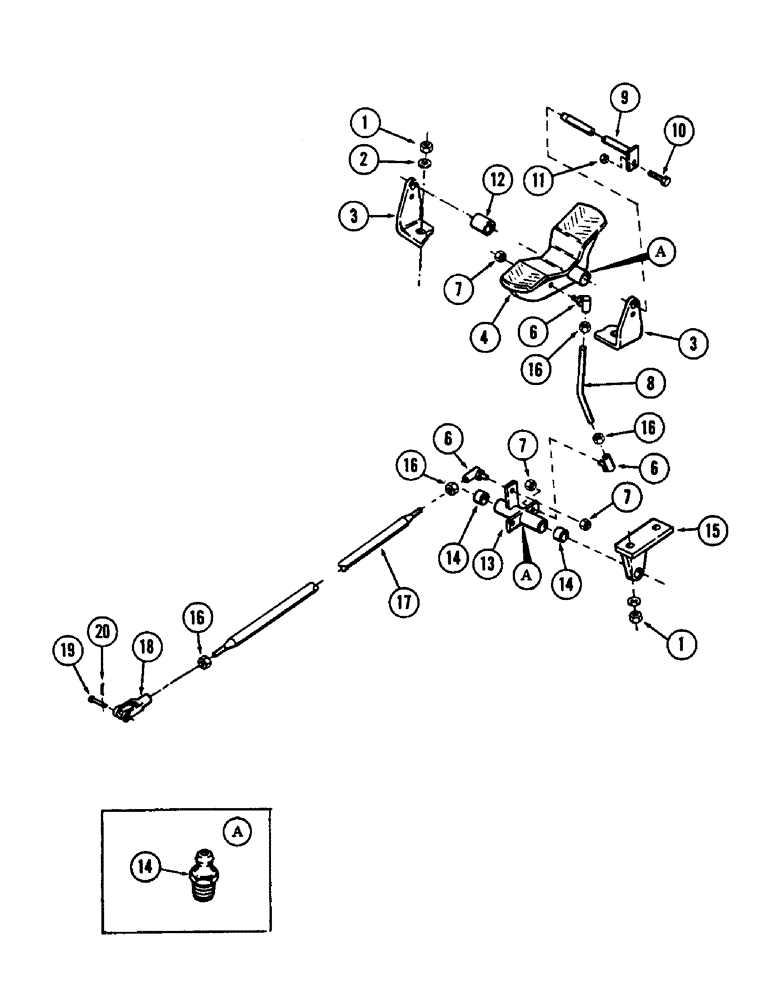

Запчасти Case 880B (214) - PEDAL AND ATTACHING PARTS FOR: RIGHT TRACK (05) - UPPERSTRUCTURE CHASSIS

1

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

6шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

S226342

BRACKET, foot pedal mounting

1шт.

4

S511074

PEDAL

1шт.

5

A30586

NEEDLE BEARING

BEARING, needle

2шт.

6

S215594

BALL

JOINT

3шт.

7

131-493

NUT

self locking - 3/8" - 24 NF

3шт.

8

S229404

ROD

connecting

1шт.

9

S218965

SHAFT ASSY.

SHAFT

1шт.

10

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

11

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

12

S64465

SPACER

1шт.

13

S236287

BELLCRANK

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

15

S229382

BRACKET, bellcrank support

1шт.

16

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

4шт.

17

S236302

ROD, connecting

1шт.

18

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

19

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

20

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.
