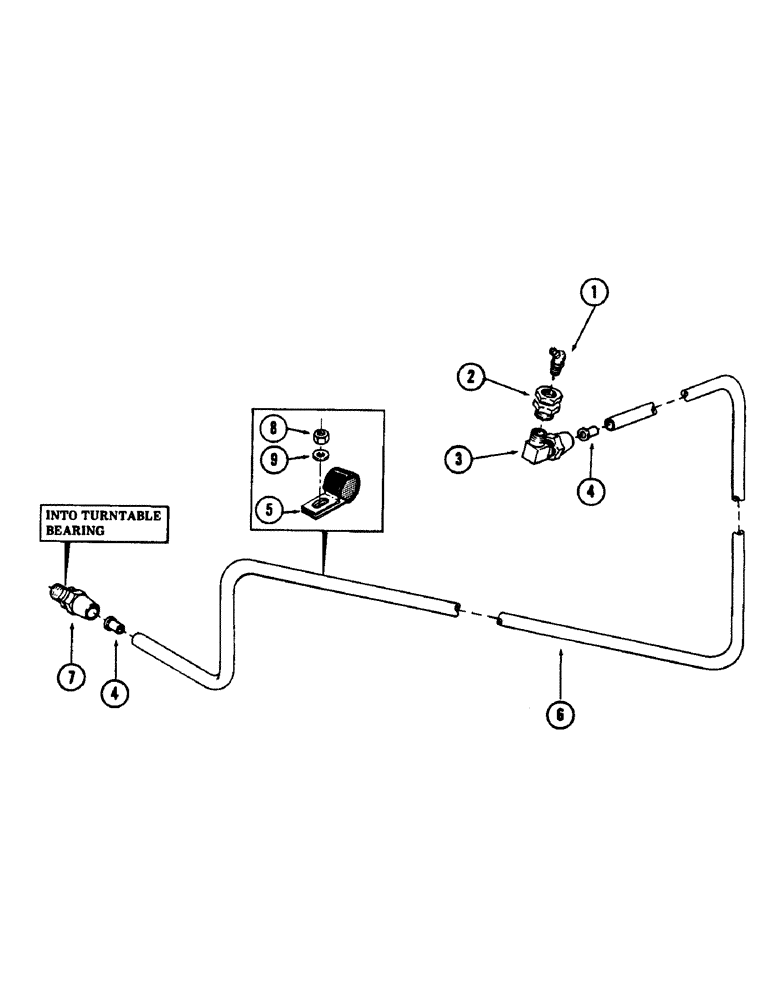

Запчасти Case 880B (118) - TURNTABLE BEARING LUBRICATION LINE (05) - UPPERSTRUCTURE CHASSIS

1

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, grease - 1/8" NPT x 45 degrees

1шт.

2

217-226

COUPLING

- 1/8" NPT female x 1/8" NPT female

1шт.

3

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

90 degrees - 1/8" NPT male x 3/8" tube

1шт.

4

222-2446

INSERT,1/4" Tube

SLEEVE - (For 3/8" OD nylon tube)

2шт.

5

S64985

CLAMP

1шт.

6

S85503

TUBE,37.5" OD

nylon - (Bulk) - 1 piece - 3/8" OD x 47" long

1шт.

7

222-1839

FITTING,17/32"-24 x 1/8" NPT

UNION - 1/8" NPT male x 3/8" tube

1шт.

8

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

9

195-525

WASHER,3/8", SAE

3/8"

1шт.
