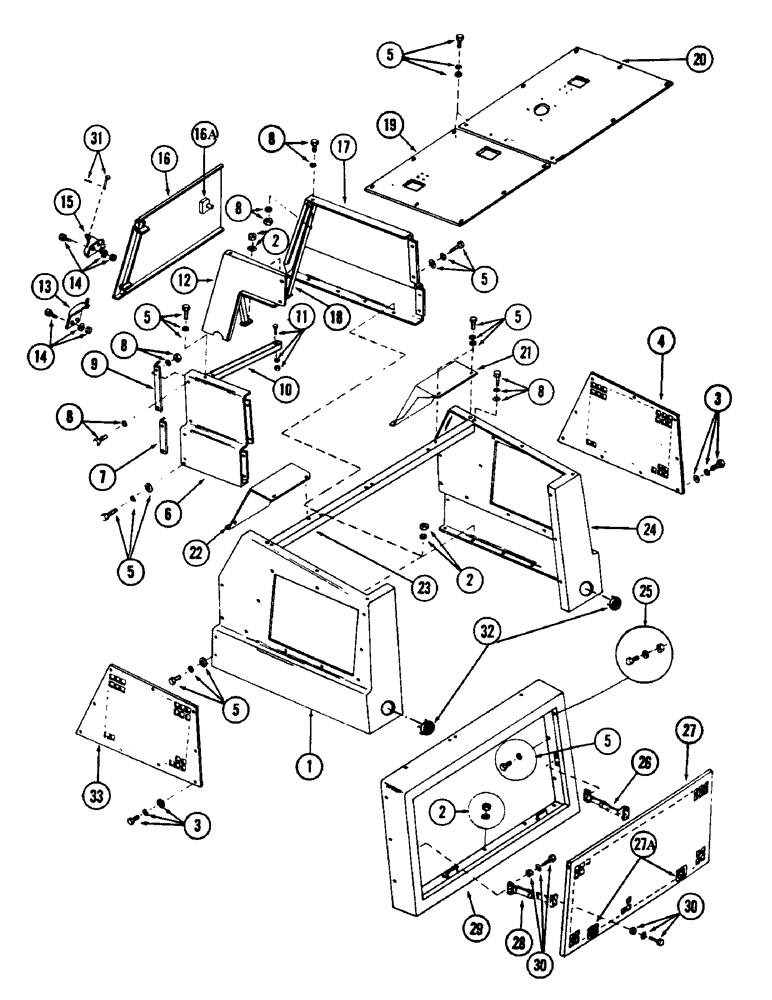

Запчасти Case 880B (108) - SHROUD GRILLES AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S611756

SHROUD, engine - (Left)

1шт.

2

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

18шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened - 1/2"

1шт.

3

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

- 1/2" - 13 NC x 1" Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened - 1/2"

1шт.

4

S505711

GRILLE

1шт.

5

13-417

BOLT - 1/2" - 13 NC x 1-1/4" Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened - 1/2"

1шт.

6

S505710

SHROUD, side panel - (Left front)

1шт.

7

S219440

ANGLE

1шт.

8

13-2400

BOLT - 1/2" - 13 NC x 1-3/8" Gr 5

8шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened - 1/2"

1шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

8шт.

9

S219439

ANGLE

1шт.

10

S234600

BRACE

1шт.

11

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

- 1/2" - 13 NC x 1-1/2" Gr 5

1шт.

195-15

WASHER,#12

hardened - 1/2"

1шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

1шт.

12

S505715

SHROUD, door mounting

1шт.

13

S221455

BRACKET

door mounting

1шт.

14

13-207

BOLT - 3/8" - 16 NC x 1" Gr 5

4шт.

95-103

WASHER, flat - 3/8"

4шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

15

S221453

BRACKET

door mounting

1шт.

16

S505716

DOOR, Includes: Ref. 16A

1шт.

16a

S219346

LATCH

1шт.

17

S602359

SHROUD, engine - (Right front)

1шт.

18

S219441

BRACE

1шт.

19

S513571

COVER

top - (Left)

1шт.

20

S13571

BOLT (MACHINE)

COVER, top - (Right) - (Supersedes S512095)

1шт.

21

S506104

SHROUD - (Right side)

1шт.

22

S506105

SHROUD - (Left side)

1шт.

23

S505712

CHANNEL

1шт.

24

S611755

SHROUD, engine - (Right)

1шт.

25

13-233

BOLT - 3/8" - 16 NC x 1-3/4" Gr 5

2шт.

95-103

WASHER, flat - 3/8"

2шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

26

S219473

BRACE

1шт.

27

S613931

DOOR, Includes: Ref. 27A

1шт.

27a

S219346

LATCH

2шт.

28

S219460

BRACE

1шт.

29

S611757

FRAME, door

1шт.

30

13-3

CLUTCH PLATE

BOLT - 1/4" - 20 NC x 3/4"

10шт.

95-101

WASHER, flat - 1/4"

10шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

10шт.

31

S217887

PIN

1шт.

A70250

PIN

hair

1шт.

32

S105894

CAP

2шт.

33

S513846

GRILLE - (Used on units with PIN 6201601 thru 6205050)

1шт.

S505711

GRILLE - (Used on units with PIN 6205051 and after)

1шт.
