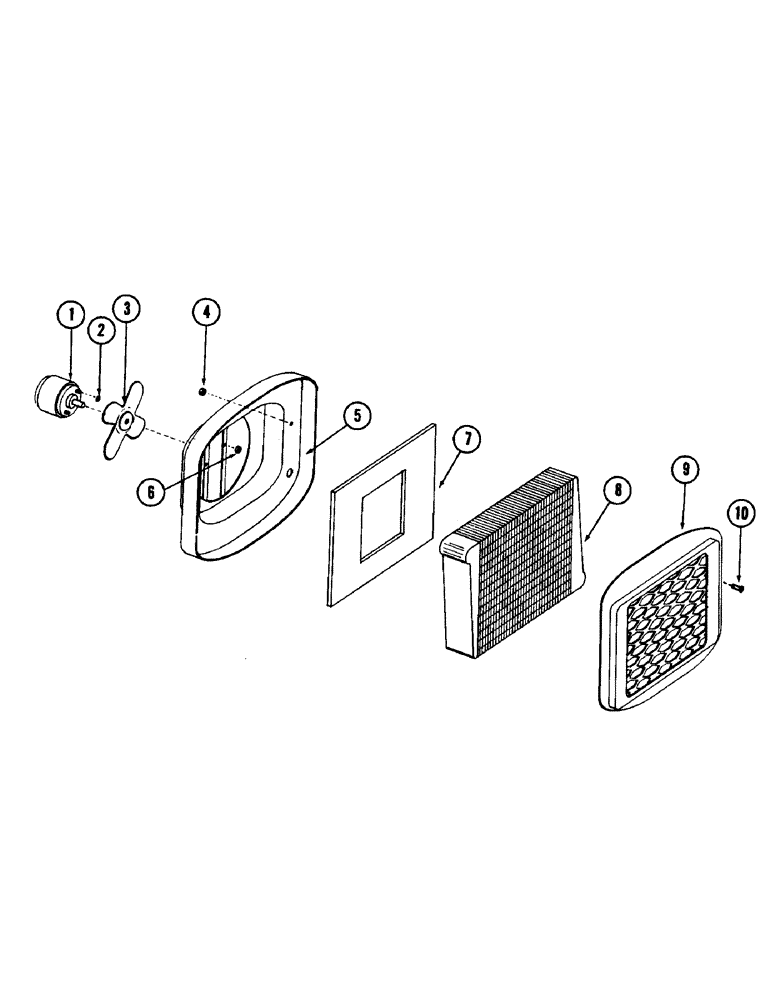

Запчасти Case 880B (106) - HEATER - 12 VOLT, (USED ON UNITS WITH PIN 6201601 THRU 6201616 AND 6201618) (05) - UPPERSTRUCTURE CHASSIS

S39842

HEATER, Includes: Ref. 1 - 11

1шт.

1

A44571

MOTOR, ELECTRIC

MOTOR

1шт.

2

L30905

WASHER

1шт.

3

S87351

FAN

1шт.

4

129-18

NUT,#12-24

2шт.

5

S97846

CASING

ASSEMBLY

1шт.

6

225-14208

NUT,#8-36

2шт.

7

S87354

PAD

2шт.

8

S107728

HEAT-EXCHANGER

CORE

1шт.

9

S97848

BAFFLE

1шт.

10

S87352

SCREW

2шт.

11

S87356

SWITCH

ASSEMBLY - (Not illustrated)

1шт.

S507825

HEATER

24 volt (used on units with P.I.N. 6201617 and 6201619 and after), Includes: Ref. 1 - 11

1шт.

1

D54871

MOTOR

heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

1шт.

2

L35760

WASHER

heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

1шт.

3

S97849

FAN

heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

1шт.

4

129-18

NUT,#12-24

heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

2шт.

5

S97846

CASING

ASSEMBLY, heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

1шт.

6

225-14208

NUT,#8-36

heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

2шт.

7

S87354

PAD

heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

2шт.

8

S107728

HEAT-EXCHANGER

CORE, heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

1шт.

9

S97848

BAFFLE

heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

1шт.

10

S87352

SCREW, heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

2шт.

11

S97852

SWITCH

ASSEMBLY - (Not illustrated), heater 24 volt (used on units with P.I.N. 6201617 & 6201619 & after)

1шт.
