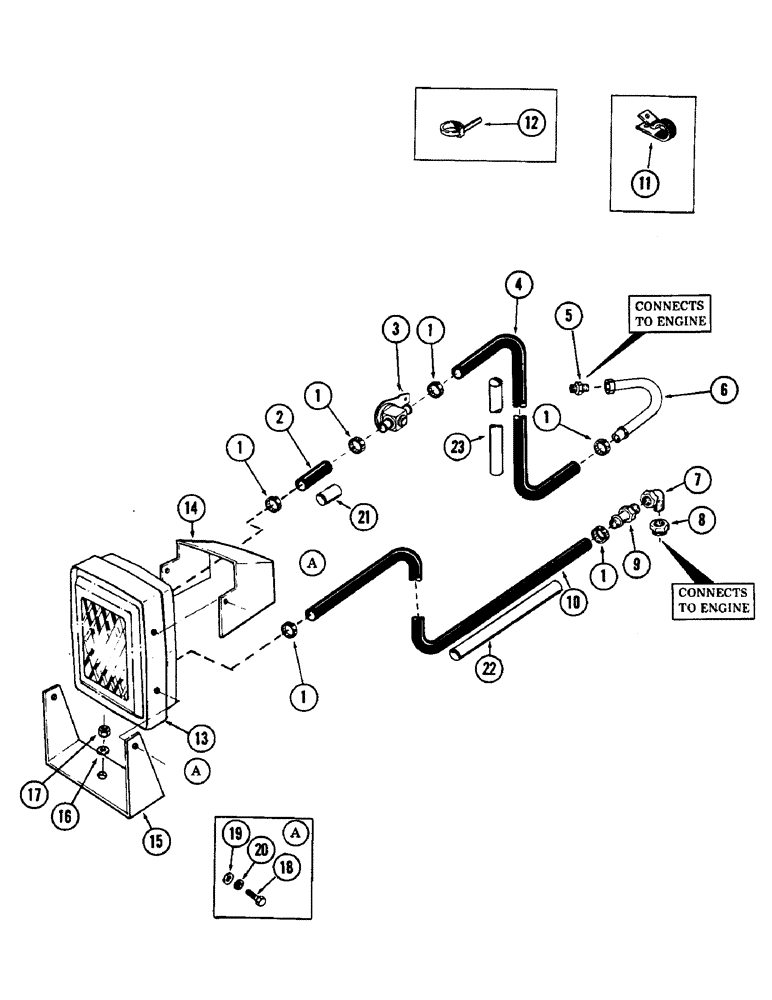

Запчасти Case 880B (104) - HEATER AND HOSES (05) - UPPERSTRUCTURE CHASSIS

1

214-25

CLAMP

6шт.

2

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 4" long

1шт.

3

S223937

VALVE

heater

1шт.

4

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 123" long

123шт.

5

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - (5/8" tube) - 7/8" - 14 male x 3/8" NPT male - 37 degrees flared

1шт.

6

S232219

TUBE,0.62" OD x 3.06, 4.68" L

hydraulic

1шт.

7

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

90 degrees pipe - 1/2" NPT female x 1/2" NPT male

1шт.

8

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING, reducer - 1/2" NPT female x 3/4" NPT male

1шт.

9

217-156

FITTING,1" Hose Barb x 1" Male NPTF

INSERT, hose - 5/8" ID hose x 1/2" NPT male

1шт.

10

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 143" long

143шт.

11

R14668

CLAMP

- (Secures hoses under floor plate and engine flywheel) - (Use existing hardware to mount 3 clamps)

4шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable

1шт.

13

REF

INSTRUCTION

HEATER, hot water - (For breakdown, see Figure 106)

1шт.

14

S237006

SHROUD, heater

1шт.

15

S513714

BRACKET, heater support

1шт.

16

195-104

WASHER,3/8"

flat - 7/16"

1шт.

17

131-206

NUT,3/8"-16

NUT, self locking - 3/8"

1шт.

18

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

19

195-518

WASHER,1/4", SAE

flat - 1/4"

4шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

21

S113778

CONDUIT (Bulk)

1шт.

22

S113778

CONDUIT (Bulk)

1шт.

23

S113778

CONDUIT (Bulk)

1шт.
