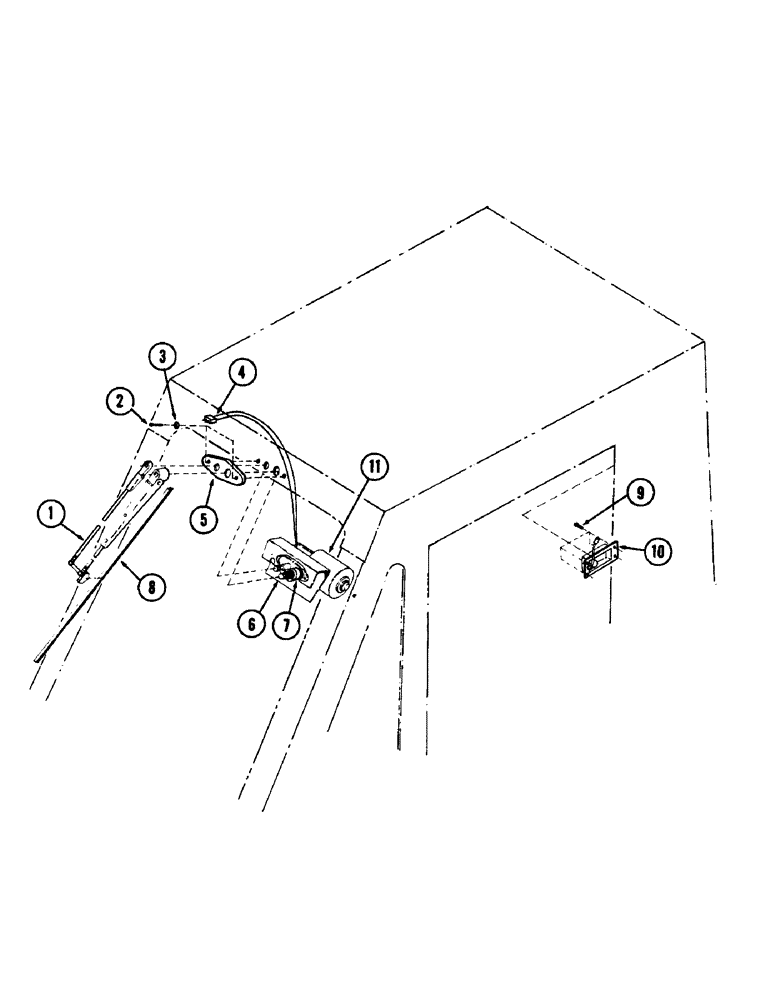

Запчасти Case 880B (100) - CAB AND ATTACHING PARTS, (WINDSHIELD WIPER), (USED ON UNITS W/PIN 6201601 THRU 6201876) (05) - UPPERSTRUCTURE CHASSIS

605307

KIT, 12 volt wiper - (Used on units with PIN 6201601 thru 6201616 and 6201618), Includes: Ref. 1 - 15

1шт.

S605308

KIT

24 volt wiper - (Used on units with PIN 6201617 thru 6201619 and after), Includes: Ref. 1 - 15

1шт.

1

L35260

ARM

wiper

1шт.

2

S61799

SCREW

machine - 1/4" NF x 5/8"

2шт.

3

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER, lock - 1/4" - (Internal tooth)

2шт.

4

S231582

HARNESS

SOCKET ASSEMBLY

1шт.

S239036 24 VOLT.

1шт.

5

S61798

KIT

adapter - (Includes gasket)

1шт.

6

S225151

SHAFT

pivot

1шт.

7

A36091

ARM

drive

1шт.

8

S225152

BLADE

wiper

1шт.

9

S60825

SCREW

machine - No. 6 NC x 1/2"

6шт.

10

S61887

LIGHT, dome - (Used on units with PIN 6201601 thru 6201616 and 6201618)

1шт.

S61880

LIGHT ASSY.

LIGHT, dome - (Used on units with PIN 6201617 and 6201619 thru 6201876)

1шт.

11

S61800

MOTOR

wiper - (Modified) - (Used on units with PIN 6201601 thru 6201616 and 6201618), Includes: Ref. 12 - 15

1шт.

IS A 12 VOLT, ALSO 11A IS 24 VOLT.NOTE BULB IS S97035.

1шт.

S61879

MOTOR, wiper - (Modified) - (Used on units with PIN 6201617 and 6201619 thru 6201876), Includes: Ref. 12 - 15

1шт.

12

S61873

PLUG

- (Not illustrated)

1шт.

13

S61874

CLIP

CUP, spring - (Not illustrated)

1шт.

14

S61875

WASHER

CUP, spring - (Not illustrated)

1шт.

15

S61876

LINK

LINE, connecting - (Not illustrated)

1шт.
