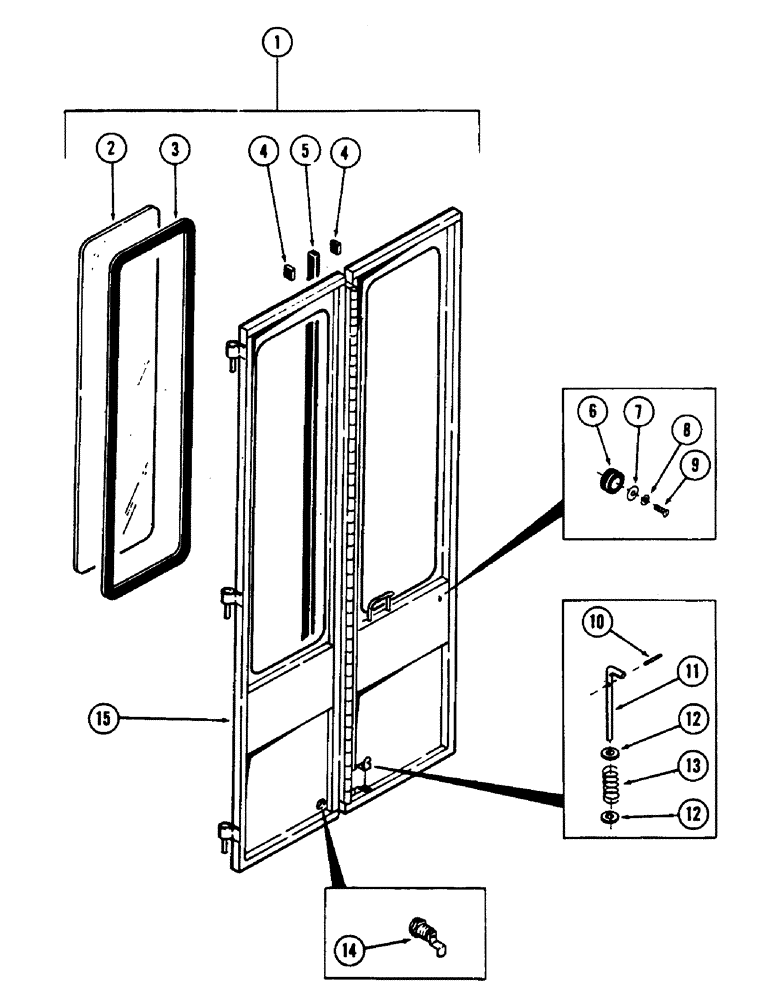

Запчасти Case 880B (094) - CAB AND ATTACHING PARTS, (DOOR AND ATTACHING PARTS), (USED ON UNITS W/S.N. 6201877 & AFTER) (05) - UPPERSTRUCTURE CHASSIS

S956137

CAB

operator - (Includes Figures 92 thru 96 thru 98), Includes: Ref. 1 - 18

1шт.

1

S955039

DOOR ASSEMBLY, Includes: Ref. 2 - 16

1шт.

2

S108102

WINDOW, plastic

2шт.

3

S109778

SEAL

SETTING MATERIAL - (Bulk) - 2 pieces - 92" long

1шт.

4

S109777

SEAL

- (Bulk) - 1 piece - 6" long - (Cut into 4 pieces 1.5" length)

1шт.

5

S109508

SEAL

- (Bulk) - 1 piece - 59" long

1шт.

6

S109512

BUMPER

door stop

1шт.

7

S109505

WASHER, fender

1шт.

8

195-513

WASHER,#10

flat - 7/32"

1шт.

9

174-102

SCREW,Sl Rnd Hd, #10 - 32 x 1"

machine - No. 10 - 32 NF x 1"

1шт.

10

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

11

S238775

PIN

1шт.

12

195-5

WASHER

flat

2шт.

13

S62977

SPRING

1шт.

14

S90080

LOCK

door

1шт.

15

NSS

NOT SOLD SEPARAT

DOOR, weldment

1шт.

16

REF

INSTRUCTION

INSULATION - (See ref 3 on Figure 96)

1шт.

17

REF

INSTRUCTION

INSULATION - (See ref 4 on Figure 96)

1шт.

18

S95517

ADHESIVE

- (Not illustrated)

1шт.

S104954

KEY

for lock #1363

1шт.

N60017

KEY

new style

1шт.
