Запчасти Case 880B (092) - CAB AND ATTACHING PARTS, (UPPER AND LOWER FRONT WINDOWS AND ATTACHING PARTS) (05) - UPPERSTRUCTURE CHASSIS

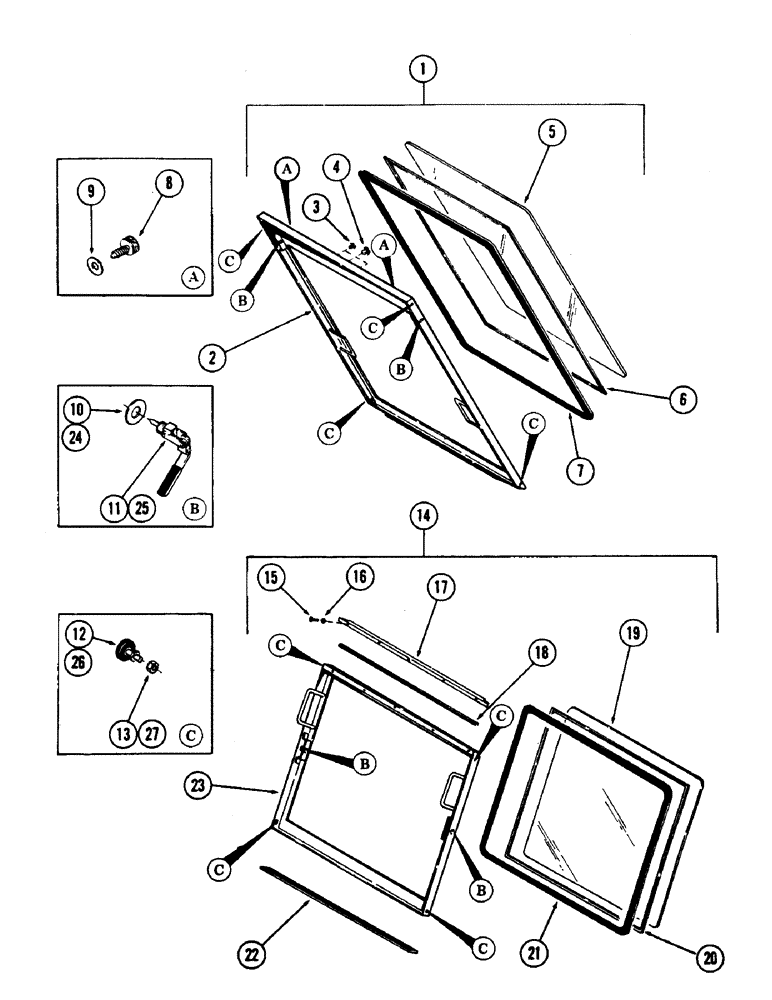

Схема запчастей Case 880B - (092) - CAB AND ATTACHING PARTS, (UPPER AND LOWER FRONT WINDOWS AND ATTACHING PARTS) (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

S956137

CAB

operator - (Includes Figure 88 and 94 thru 98), Includes: Ref. 1 - 13

1шт.

1

S610784

WINDOW

ASSEMBLY, front upper

1шт.

2

NSS

NOT SOLD SEPARAT

WINDOW, weldment

1шт.

3

353-260

PLUG, 5/16" Cap, 5/16"-24

2шт.

4

353-265

PLUG, 3/4" Cap, 3/4"-16

1шт.

5

S108099

GLASS, front upper

1шт.

6

S75830

SEAL

STRIP, filler - (Bulk) - 1 piece - 145" long

145шт.

7

S75829

SEAL

RUBBER, glass setting - (Bulk) - 1 piece - 145" long

145шт.

8

S109773

FASTENER

2шт.

9

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

10

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, flat - 3/4"

2шт.

11

S231570

CLAMP

windshield - (Right hand)

1шт.

S231571

CLAMP

windshield - (Left hand)

1шт.

12

D70621

ROLLER

rubber

4шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

S615427

WINDOW ASSY

WINDOW ASSEMBLY, front lower, Includes: Ref. 15 - 32

1шт.

15

S60105

SCREW, machine - 1/4" NF x 1/2"

5шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

17

S511205

BRACKET

1шт.

18

S60106

CHANNEL, rubber - (Bulk) - 1 piece - 30" long

1шт.

19

S108100

WINDOW, plastic

1шт.

20

S75830

SEAL

STRIP, filler - (Bulk) - 1 piece - 73" long

1шт.

21

S75829

SEAL

RUBBER, glass setting - (Bulk) - 1 piece - 73" long

1шт.

22

S109912

SEAL - (Bulk) - 1 piece - 62" long

1шт.

23

NSS

NOT SOLD SEPARAT

WINDOW, weldment

1шт.

24

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, flat - 3/4"

2шт.

25

S231570

CLAMP

windshield - (Right hand)

1шт.

S231571

CLAMP

windshield - (Left hand)

1шт.

26

D70621

ROLLER

rubber

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

28

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

29

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.

32

S236870

RETAINER

2шт.

33

S117096

STOP, cam follower

2шт.

34

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

35

163-22

SCREW,Hex, 1/4" - 20 x 1/2"

flat head

2шт.

36

S95517

ADHESIVE

- (Not illustrated)

1шт.

Выбрано товаров: 39
