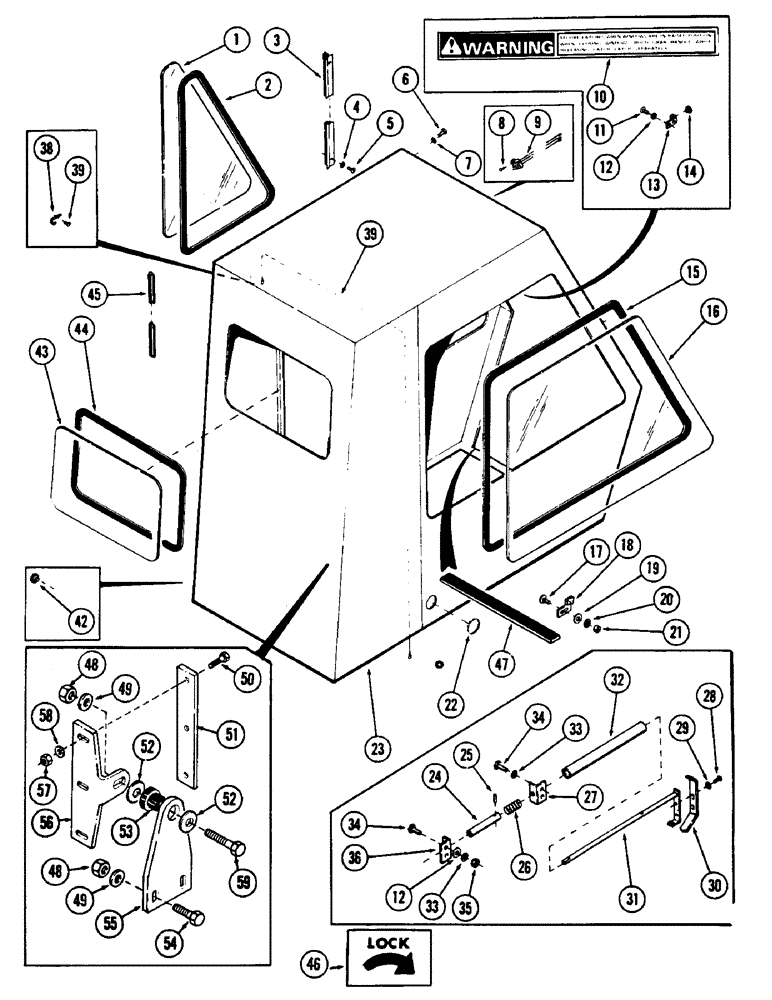

Запчасти Case 880B (088) - CAB AND ATTACHING PARTS, (USED ON UNITS WITH SERIAL NUMBER 6201877 & AFTER) (05) - UPPERSTRUCTURE CHASSIS

S956137

CAB

ASSEMBLY - (Includes Figures 90 thru 98), Includes: Ref. 1 - 47

1шт.

1

S108104

WINDOW, plastic

1шт.

2

S109778

SEAL

SETTING MATERIAL - (Bulk) - 1 piece - 102" long

102шт.

3

S108310

RETAINER, door

1шт.

4

195-102

WASHER,1/4"

flat 1/4"

6шт.

5

S109766

SCREW

machine - 5/16" NC x 3/4"

6шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

S49599

WASHER

seal - 3/8"

3шт.

8

S60825

SCREW

machine - No. 6 x 1/2"

2шт.

9

S239036

SOCKET ASSEMBLY

1шт.

10

S232929

DECAL, window warning

1шт.

11

S109767

SCREW

machine - 1/4" NC x 3/4"

8шт.

12

195-101

WASHER,3/16"

flat - 1/2"

10шт.

13

S236544

BRACKET, bumper

2шт.

14

S109513

BUMPER

2шт.

15

S109778

SEAL

SETTING MATERIAL - (Bulk) - 1 piece - 156" long

156шт.

16

S108103

WINDOW, plastic

1шт.

17

111-342

BOLT, carriage - 3/8" NC x 1"

8шт.

18

S231580

BRACKET - (Right hand)

2шт.

S231581

BRACKET - (Left hand)

2шт.

19

195-103

WASHER,5/16"

flat - 3/8"

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

22

S61789

PLUG

button

1шт.

23

S615429

CAB

weldment

1шт.

S239024

RETAINER

DOOR RETAINER ASSEMBLY, Includes: Ref. 24 - 31

1шт.

24

S108308

TUBE,0.75" OD x 6.41" L

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

26

S109506

SPRING

1шт.

27

S108307

BRACKET

1шт.

28

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

machine - 1/4" NC x 1/2"

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

S514584

BRACKET

1шт.

31

S231584

RETAINER

door weldment

1шт.

32

S108309

TUBE,1" OD x 9.44" L

1шт.

33

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

WASHER, lock

4шт.

34

S63053

SCREW

machine - 1/4" NC x 5/8"

6шт.

35

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

36

S108307

BRACKET

1шт.

37

S109769

SCREW

machine - No. 10 NF x 3/4"

2шт.

38

S61769

HOOK

1шт.

39

S231612

WIRE ASSEMBLY

1шт.

40

S95517

ADHESIVE

- (Not illustrated) - (Use with seals)

1шт.

41

S109780

ADHESIVE

- (Not illustrated) - (Used with seal on ref 3)

1шт.

42

S109513

BUMPER, door

1шт.

43

S108101

WINDOW, plastic

1шт.

44

S109778

SEAL

SETTING MATERIAL - (Bulk) - 1 piece - 84" long

1шт.

45

S109775

SEAL

trim - (Bulk) - 1 piece - 245" long

245шт.

46

S117100

DECAL

1шт.

47

S117099

SEAL - (Bulk) - 1 piece - 32" long

1шт.

48

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.

49

S95569

WASHER

flat - 1/2"

3шт.

50

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

51

S116022

BAR

1шт.

52

196-10

WASHER,.521" x 2" x .134", HDN

flat - (Special) - 2"

2шт.

53

S110886

MOUNTING PARTS

MOUNT, rubber

1шт.

54

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

1шт.

55

S238103

BRACKET

1шт.

56

S514315

BRACKET

1шт.

57

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8"

3шт.

58

196-3

WASHER, flat - 3/8"

3шт.

59

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" NC x 2-1/2"

1шт.
