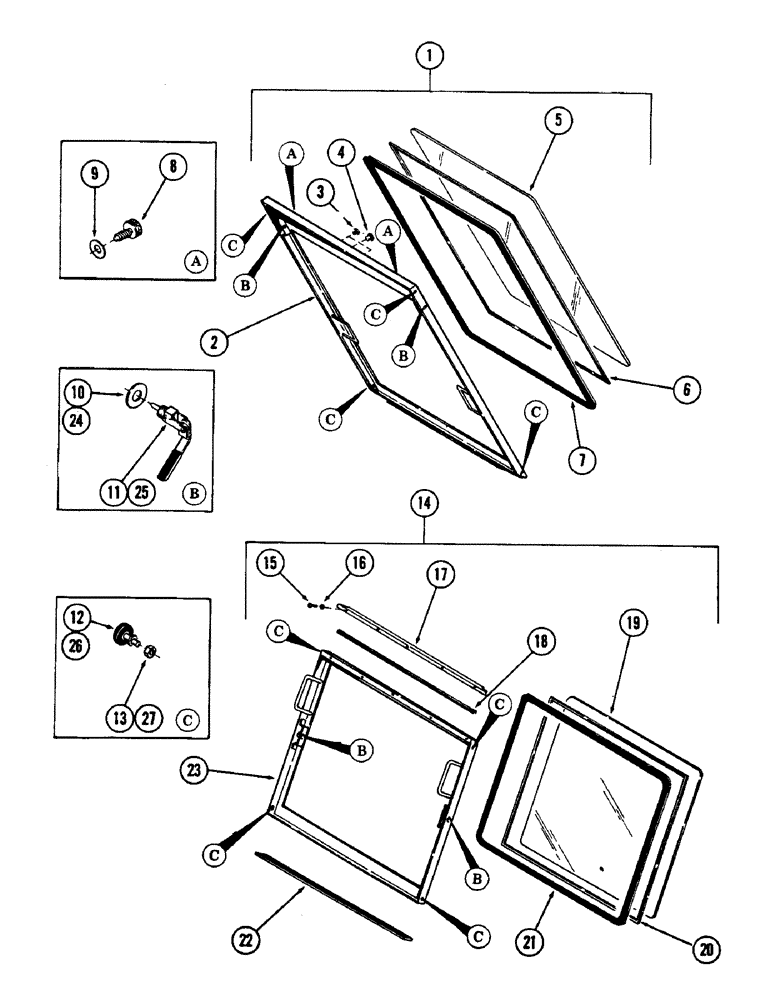

Запчасти Case 880B (080) - CAB AND ATTACHING PARTS, (UPPER AND LOWER FRONT WINDOWS AND ATTACHING PARTS) (05) - UPPERSTRUCTURE CHASSIS

S955032

CAB

operator - (Includes Figures 76 and 82 thru 86) - (Order S956137 on Figure 88), Includes: Ref. 1 - 28

1шт.

1

S610784

WINDOW

ASSEMBLY, front upper, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

WINDOW, weldment

1шт.

3

353-260

PLUG - 5/16" Cap, 5/16"-24

2шт.

4

353-265

PLUG - 3/4" Cap, 3/4"-16

1шт.

5

S108099

GLASS, front upper

1шт.

6

S75830

SEAL

STRIP, filler - (Bulk) - 1 piece - 145" long

145шт.

7

S75829

SEAL

RUBBER, glass setting - (Bulk) - 1 piece - 145" long

145шт.

8

S109773

FASTENER

2шт.

9

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

10

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, flat - 3/4"

2шт.

11

S231570

CLAMP

windshield - (Right hand)

1шт.

S231571

CLAMP

windshield - (Left hand)

1шт.

12

D70621

ROLLER

rubber

4шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

S610774

WINDOW

ASSEMBLY, front lower, Includes: Ref. 15 - 27

1шт.

15

S60105

SCREW, machine - 1/4" - 20 NF x 1/2"

5шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

17

S511205

BRACKET

1шт.

18

S60106

CHANNEL, rubber - (Bulk) - 1 piece - 30" long

1шт.

19

S108100

WINDOW, plastic

1шт.

20

S75830

SEAL

STRIP, filler - (Bulk) - 1 piece - 73" long

1шт.

21

S75829

SEAL

RUBBER, glass setting - (Bulk) - 1 piece - 73" long

1шт.

22

S109510

SEAL - (Bulk) - 1 piece - 62" long - (Supersedes S109912)

1шт.

23

NSS

NOT SOLD SEPARAT

WINDOW, weldment

1шт.

24

195-45

WASHER,3/4"

2шт.

25

S231570

CLAMP

windshield - (Right hand)

1шт.

S231571

CLAMP

windshield - (Left hand)

1шт.

26

D70621

ROLLER

rubber

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

28

S109779

ADHESIVE - (Not illustrated)

1шт.
