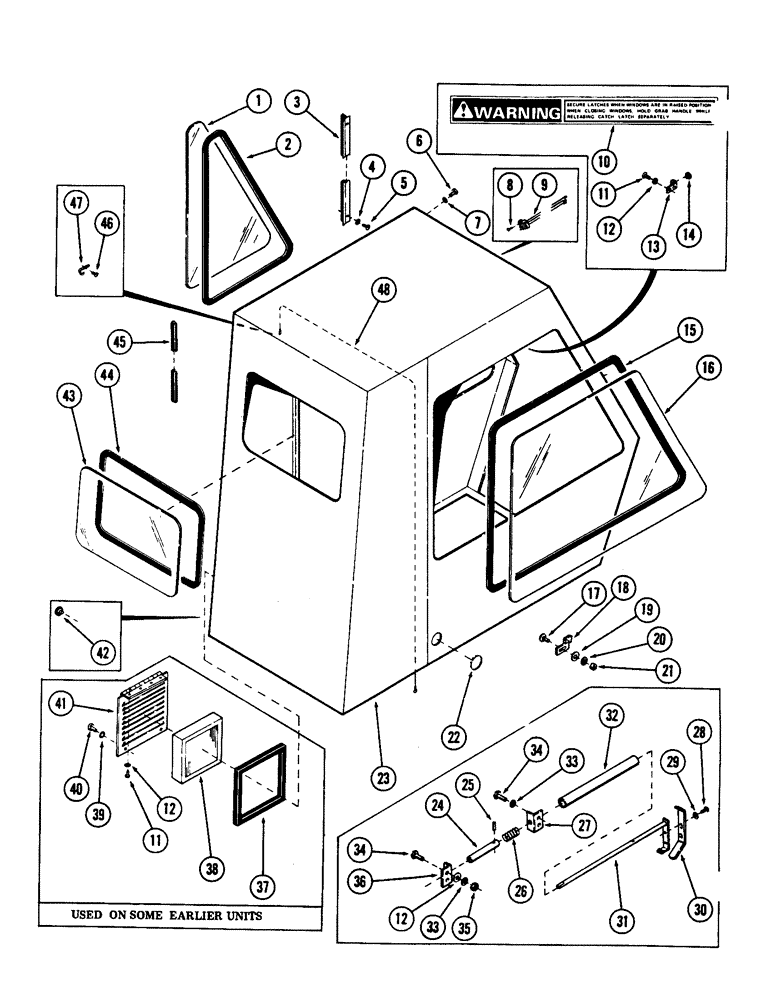

Запчасти Case 880B (076) - CAB AND ATTACHING PARTS, (USED ON UNITS WITH PIN 6201601 THRU 6201876) (05) - UPPERSTRUCTURE CHASSIS

S955032

CAB

ASSEMBLY - (Includes Figures 76 thru 86) - (Order S956137 on Figure 88), Includes: Ref. 1 - 41

1шт.

1

S108104

WINDOW, plastic

1шт.

2

S109778

SEAL

SETTING MATERIAL - (Bulk) - 102" long

102шт.

3

S108310

RETAINER, door

1шт.

4

195-102

WASHER,1/4"

flat 1/4"

6шт.

5

S109766

SCREW

machine - 5/16" - 18 NC x 3/4"

6шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

S49599

WASHER

seal - 3/8"

3шт.

8

S60825

SCREW

machine - No. 6 x 1/2"

2шт.

9

S231582

HARNESS

SOCKET ASSEMBLY

1шт.

S239036

12 volt socket

1шт.

10

S232929

DECAL, window warning

1шт.

11

S109767

SCREW

machine - 1/4" - 20 NC x 3/4"

8шт.

12

195-101

WASHER,3/16"

flat - 1/2"

10шт.

13

S236544

BRACKET, bumper - (Supersedes S231611)

2шт.

14

S109513

BUMPER

2шт.

15

S109778

SEAL

SETTING MATERIAL - (Bulk) - 1 piece - 156" long

156шт.

16

S108103

WINDOW, plastic

1шт.

17

S109768

BOLT, carriage - 3/8" - 16 NC x 1"

8шт.

18

S231580

BRACKET - (Right hand)

2шт.

S231581

BRACKET - (Left hand)

2шт.

19

195-103

WASHER,5/16"

flat - 3/8"

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

22

S61789

PLUG

bottom

1шт.

23

S610775

BODY

CAB, weldment

1шт.

-

S231583

RETAINER

DOOR RETAINER ASSEMBLY, Includes: Ref. 24 - 31

1шт.

24

S108308

TUBE,0.75" OD x 6.41" L

1шт.

25

S90087

PIN

roll

1шт.

26

S109506

SPRING

1шт.

27

S108307

BRACKET

1шт.

28

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

machine - 1/4" - 20 NC x 1/2"

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

S511203

BRACKET

1шт.

31

S231584

RETAINER

door weldment

1шт.

32

S108309

TUBE,1" OD x 9.44" L

1шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

34

S63053

SCREW

machine - 1/4" - 20 NC x 5/8"

4шт.

35

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

36

S108307

BRACKET

1шт.

37

S106788

SEAL - (Bulk) - 1 piece - 43" long - (Supersedes S109511)

1шт.

38

S61764

FILTER

1шт.

39

S60969

WASHER

2шт.

40

S109774

FASTENER

2шт.

41

S511206

DOOR, filter

1шт.

42

S109513

BUMPER, door

1шт.

43

S108101

WINDOW, plastic

1шт.

44

S109778

SEAL

SETTING MATERIAL - (Bulk) - 1 piece - 84" long

1шт.

45

S109775

SEAL

strip - (Bulk) - 1 piece - 279" long

279шт.

46

S109769

SCREW

machine - No. 10 - 32 NF x 3/4"

2шт.

47

S61769

HOOK

1шт.

48

S231162

WIRE ASSEMBLY

1шт.

49

S95517

ADHESIVE

- (Not illustrated) - (Use with seals)

1шт.

50

S109780

ADHESIVE

- (Not illustrated) - (Used with seal on ref 3) - (Supersedes S111907)

1шт.

S205317

MIRROR

head

1шт.

S207875

ARM

BRACKET

1шт.

S40799

SCREW

1шт.
