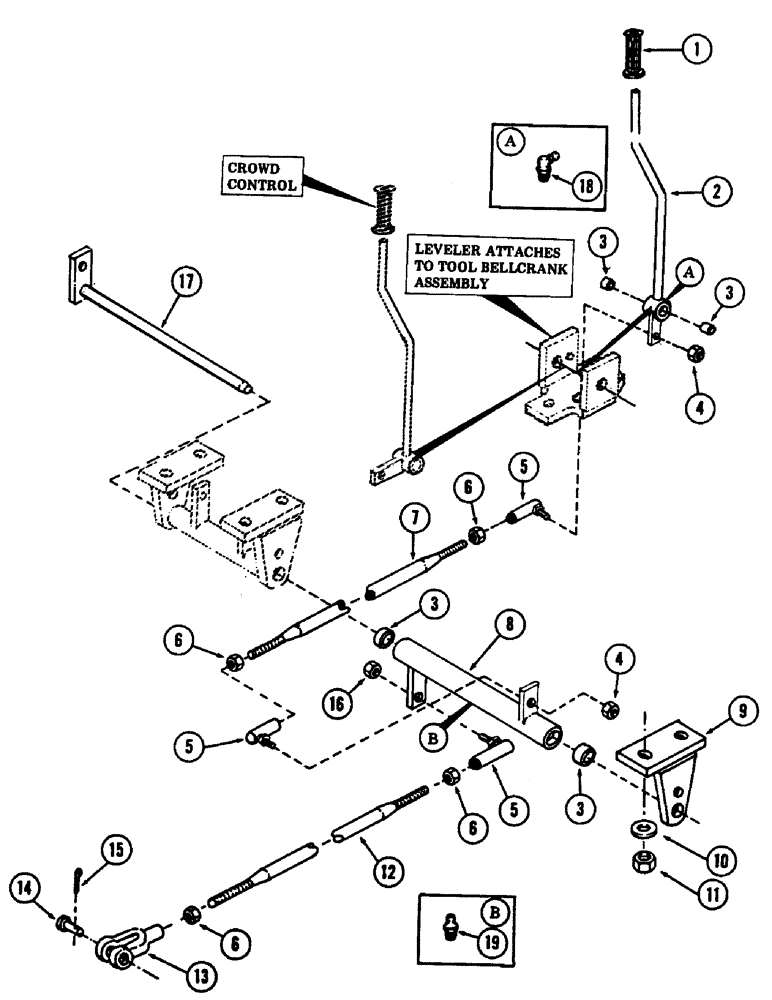

Запчасти Case 880B (162) - LEVELER CONTROL AND LINKAGE (04) - UNDERCARRIAGE

1

S109220

GRIP

handle

1шт.

2

S613195

HANDLE, leveler control

1шт.

3

A30586

NEEDLE BEARING

BEARING, needle

4шт.

4

131-493

NUT

self locking - 3/8" - 24 NF

2шт.

5

S215594

BALL

JOINT, ball

3шт.

6

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

4шт.

7

S216707

ROD, connecting

1шт.

8

236290

BELLCRANK

1шт.

9

S218939

BRACKET

1шт.

10

95-8

WASHER,1/2"

flat 1/2"

2шт.

11

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

2шт.

12

S219272

ROD, CONNECTING

1шт.

13

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

14

S10768

PIN

clevis - 3/8" dia. x 1.016" grip length

1шт.

15

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

16

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" - 24 NC

1шт.

17

S218966

SHAFT - (With leveler only)

1шт.

18

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, lube - 1/4" NPT x 60 degrees

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.
