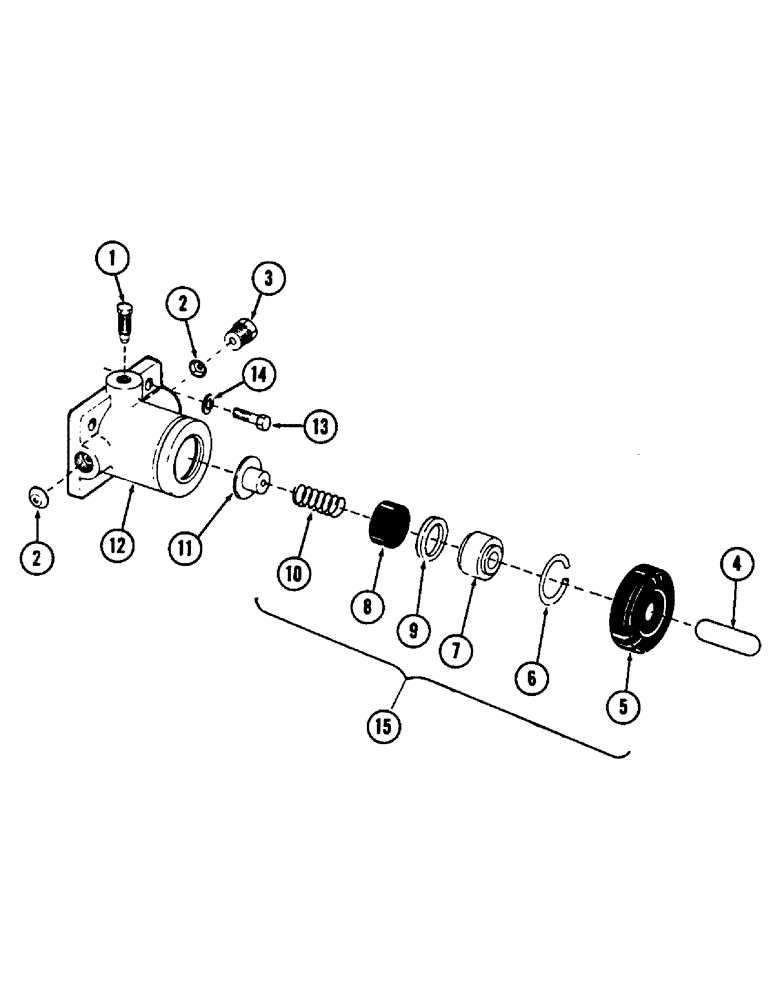

Запчасти Case 880B (160) - TRACK BRAKE CYLINDER (04) - UNDERCARRIAGE

S231296

CYLINDER ASSY.

CYLINDER, track brake - 1", Includes: Ref. 1 - 12

2шт.

1

S108035

SCREW

bleeder

1шт.

2

R15270

HARDWARE

INSERT - 1/4" tube seat

2шт.

3

S61747

PLUG

-1/4" tube seat

1шт.

4

S106714

ROD, push

1шт.

5

NSS

NOT SOLD SEPARAT

BOOT

1шт.

Part of service kit, P/N S231297

1шт.

6

NSS

NOT SOLD SEPARAT

RING, round retainer

1шт.

Part of service kit, P/N S231297

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON

1шт.

Part of service kit, P/N S231297

1шт.

8

NSS

NOT SOLD SEPARAT

CUP

1шт.

Part of service kit, P/N S231297

1шт.

9

NSS

NOT SOLD SEPARAT

RING, back-up

1шт.

Part of service kit, P/N S231297

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING, return

1шт.

Part of service kit, P/N S231297

1шт.

11

S108478

STOP, spring

1шт.

12

NSS

NOT SOLD SEPARAT

BODY

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

ANOTHER BOLT USED (NOT A SUB) PART 61-412

1шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

15

S231297

KIT

service, Includes: Ref. 5 thru 10

1шт.
