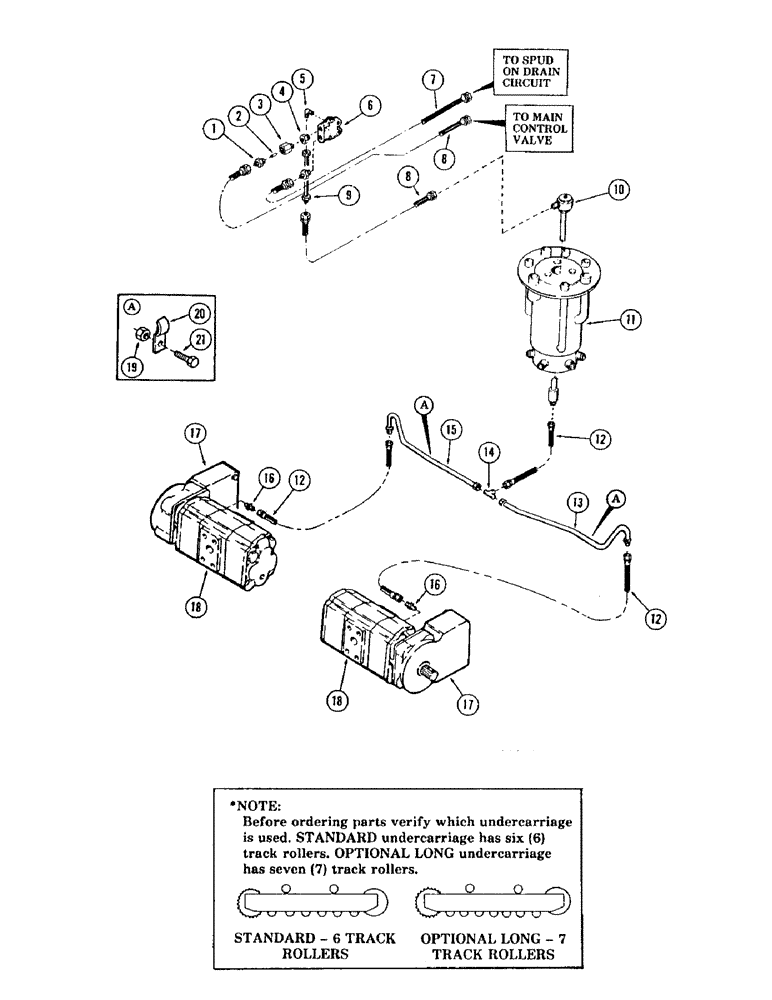

Запчасти Case 880B (152) - TRACK BRAKE TUBING, * (USED WITH OPTIONAL LONG UNDERCARRIAGE) (04) - UNDERCARRIAGE

1

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (1/2" tube) - 1/4" NPT male x 3/4" - 16 male - 37 degrees flared

1шт.

2

S89669

VALVE

REGULATOR, flow

1шт.

3

S78869

VALVE

check

1шт.

4

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe - 1/2" NPT male x 3/8" NPT female

1шт.

5

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

90 degrees - (1/2" tube) - 1/2" NPT male x 3/4" - 16 male - 37 degrees flared

1шт.

6

REF

INSTRUCTION

VALVE, track brake - (For breakdown, see Figure 148)

1шт.

7

S61247

HOSE

high pressure - 3/8" ID x 60" long - (With 3/4" - 16 female pressed on couplings)

1шт.

8

S11231

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 68" long - (With 3/4" - 16 female pressed on couplings)

2шт.

9

S238043

TUBE ASSY.

TUBE, hydraulic

1шт.

10

REF

INSTRUCTION

SWIVEL, inner brake - (For breakdown, see Figure 154)

1шт.

11

REF

INSTRUCTION

SWIVEL, 7-port - (For breakdown, see Figure 218)

1шт.

12

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

3шт.

13

S513199

TUBE ASSY.,0.375" OD

TUBE, hydraulic

1шт.

14

218-593

TEE,9/16"-18, 37 Degree

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.

15

S513441

TUBE, hydraulic 0.375" OD

1шт.

16

218-749

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, 37 Degree

UNION

2шт.

17

REF

INSTRUCTION

BRAKE, track - (For breakdown, see Figure 158)

2шт.

18

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see Figure 228)

2шт.

19

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.

20

S94926

CLAMP

tube

2шт.

21

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.
