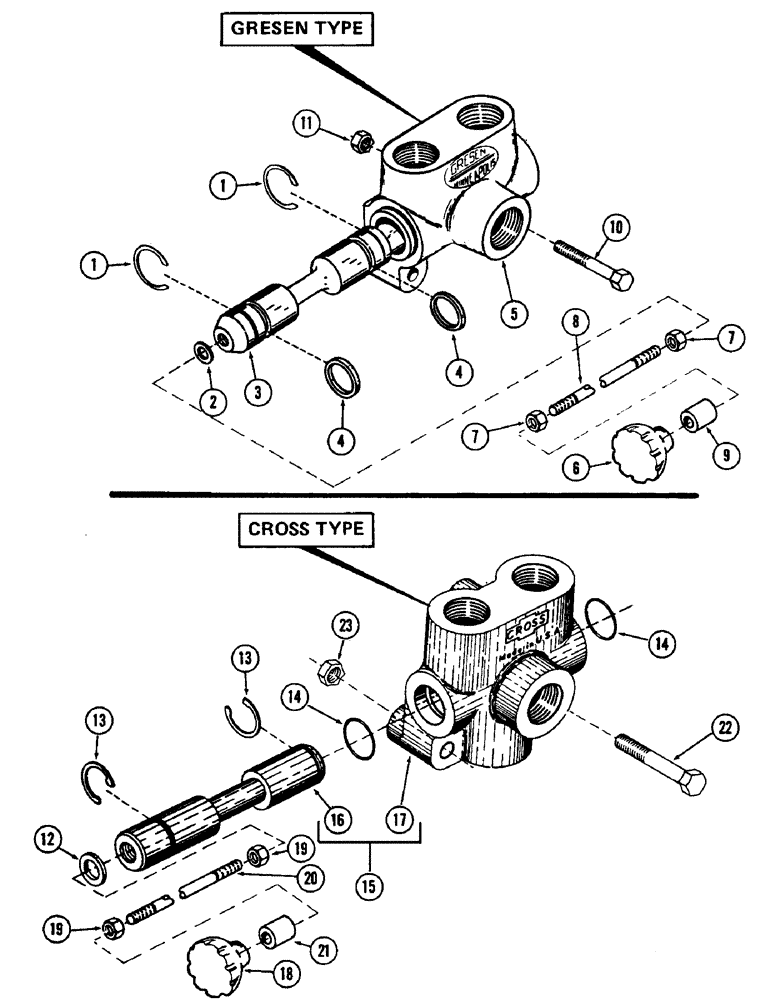

Запчасти Case 880B (148) - TRACK BRAKE VALVE (04) - UNDERCARRIAGE

S39280

VALVE

track brake - (Gresen), Includes: Ref. 1 - 6

1шт.

1

T13433

RING

snap

2шт.

2

192-401

LOCK WASHER,3/8"

3/8"

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

D51528

SEAL

quad ring

2шт.

5

NSS

NOT SOLD SEPARAT

HOUSING, valve

1шт.

6

T36607

BALL KNOB

KNOB, control

1шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

8

S78386

STUD

ROD

1шт.

9

S93329

COUPLING

1шт.

10

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Mounts track brake valve Hex, 5/16"-18 x 2 1/2", G5

2шт.

11

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16" NC

2шт.

S39280

VALVE

track brake - (Cross), Includes: Ref. 12 - 18

1шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

13

T13433

RING

snap

2шт.

14

D36830

RING

SEAL, spool

2шт.

15

S105745

SPOOL AND BODY ASSEMBLY, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

17

NSS

NOT SOLD SEPARAT

BODY

1шт.

18

D63504

KNOB

control

1шт.

19

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

20

S78386

STUD

ROD

1шт.

21

S93329

COUPLING

1шт.

22

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Mounts track brake valve Hex, 5/16"-18 x 2 1/2", G5

2шт.

23

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16" NC

2шт.
