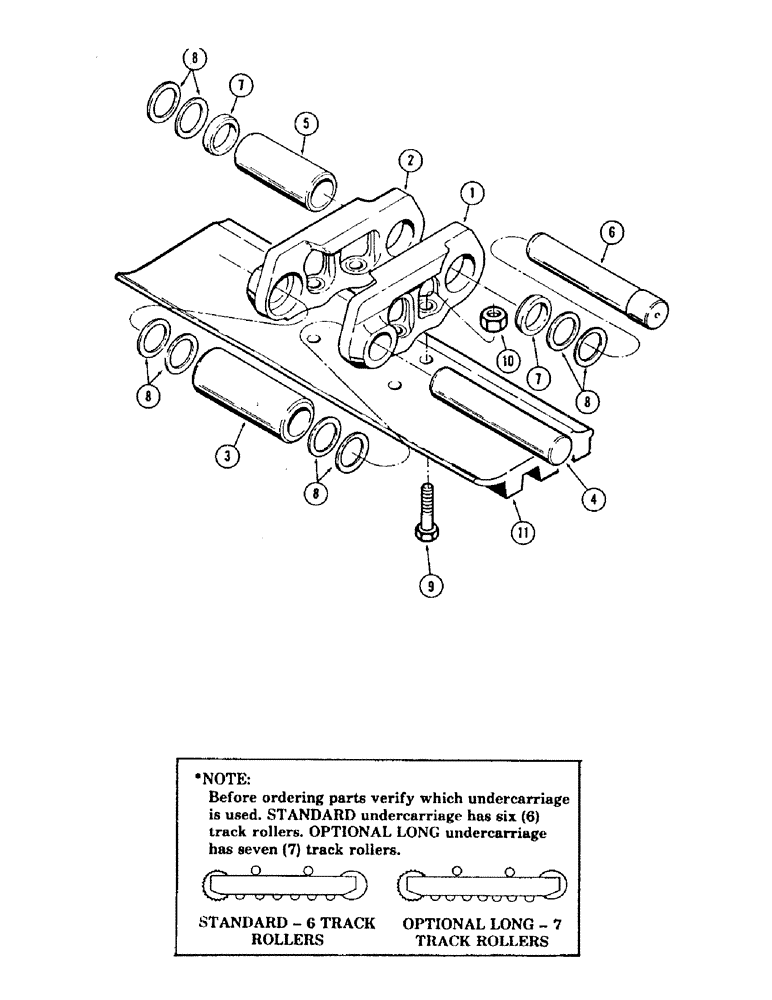

Запчасти Case 880B (146) - TRACK SHOES AND LINKS, (24" WIDE TRACK ASSEMBLY), * (USED ON UNITS WITH OPTIONAL LONG UNDERCARRIAGE) (04) - UNDERCARRIAGE

S232395

CHAIN (CE)

CHAIN ASSEMBLY 50 unit, sealed track, Includes: Ref. 1 - 11

2шт.

1

D31710

LINK

- track, R.H.

50шт.

2

D31709

LINK

- track, L.H.

50шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

track long

49шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

track, standard

49шт.

5

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

short master

1шт.

6

D36511

PIN

master track

1шт.

7

D45272

BUSHING

spacer

2шт.

8

D45076

BELLEVILLE SPRING

SEAL, washer

196шт.

9

S113061

BOLT

special

200шт.

10

S113062

NUT

special look

200шт.

11

R25986

TRACK SHOE

SHOE - 24", 3 bar grouser

50шт.

S237785

CHAIN (CE)

CHAIN ASSEMBLY 50 unit, sealed track, shoes & links (30" wide track assy) (used on units w/ optional long undercarriage), Includes: Ref. 1 - 11

2шт.

1

D31710

LINK

- track, R.H., shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

50шт.

2

D31709

LINK

- track, L.H., shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

50шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

track long, shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

49шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

track, standard, shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

49шт.

5

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

short master, shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

1шт.

6

D36511

PIN

master track, shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

1шт.

7

D45272

BUSHING

spacer, shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

2шт.

8

D45076

BELLEVILLE SPRING

SEAL, washer, shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

196шт.

9

S113061

BOLT

special, shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

200шт.

10

S113062

NUT

special lock, shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

200шт.

11

S116419

CHAIN (CE)

SHOE - 30", 3 bar grouser, shoes & links (30 inch wide track assembly) (used on units with optional long undercarriage)

50шт.
