Запчасти Case 880B (142) - TRACK SHOES AND LINKS, (24" WIDE TRACK ASSEMBLY), * (USED ON UNITS WITH STANDARD UNDERCARRIAGE) (04) - UNDERCARRIAGE

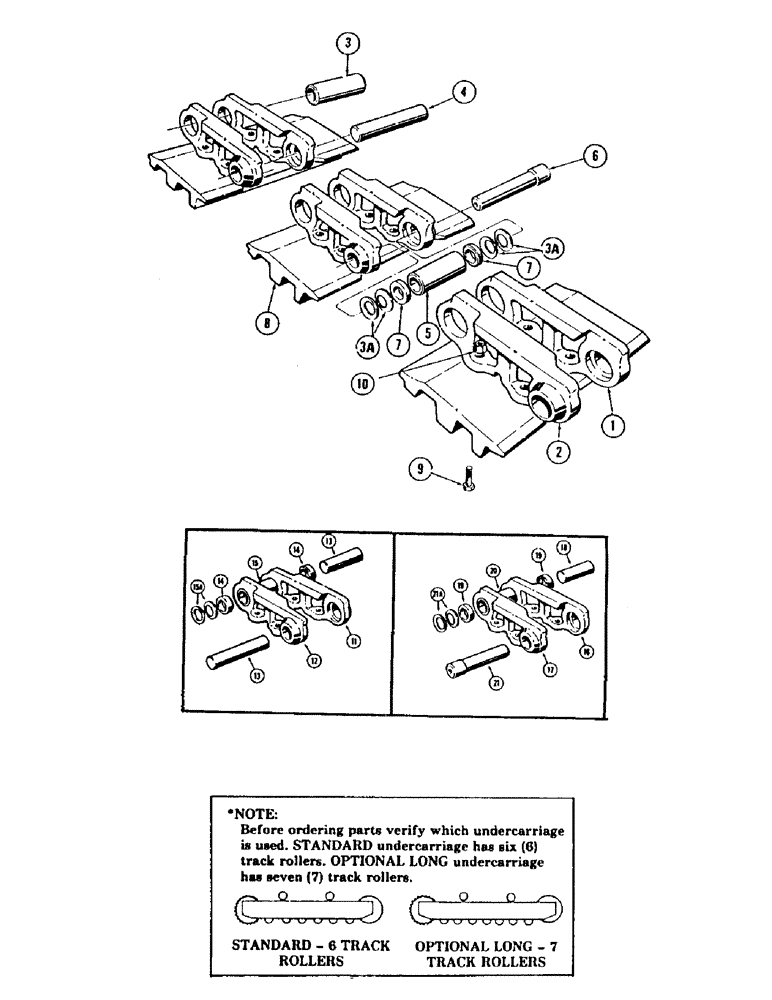

Схема запчастей Case 880B - (142) - TRACK SHOES AND LINKS, (24" WIDE TRACK ASSEMBLY), * (USED ON UNITS WITH STANDARD UNDERCARRIAGE) (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

S235297

ASSEMBLY

CHAIN ASSEMBLY, 46 unit, sealed track, Includes: Ref. 1 - 10

2шт.

1

D31710

LINK

- track R.H. (Order D45348 track chain unit kit for service)

46шт.

2

D31709

LINK

track - L.H. (Order D45348 track chain unit kit for service)

46шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

track - long

45шт.

3a

D45076

BELLEVILLE SPRING

SEAL - washer

184шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard

45шт.

D32164

PIN

- track, service option - (.003" oversize)

45шт.

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

6

D36511

PIN

- track, master

1шт.

7

D45272

BUSHING

spacer

2шт.

8

R25986

TRACK SHOE

GROUSER - Semi - 24"

46шт.

9

S113061

BOLT

- special

184шт.

10

S113062

NUT

- lock, special

184шт.

D45348

KIT

- track chain unit, sealed track, Includes: Ref. 11 - 15A

90шт.

11

D31710

LINK

track - R.H. (Order D45348 track chain unit kit for service)

1шт.

12

D31709

LINK

track - L.H. (Order D45348 track chain unit kit for service)

1шт.

13

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, chain unit kit

2шт.

14

D45272

BUSHING

- spacer, track chain unit kit

2шт.

15

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, track chain unit kit

1шт.

15a

D45076

BELLEVILLE SPRING

SEAL - washer, track chain unit kit

8шт.

D45350

LINK

KIT - master chain unit, sealed track, Includes: Ref. 16 - 21A

2шт.

16

D31710

LINK

- track, R.H. (Order D45348 track chain unit kit for service), master

1шт.

17

D31709

LINK

- track, L.H. (Order D45348 track chain unit kit for service), master

1шт.

18

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, master chain unit kit

1шт.

19

D45272

BUSHING

- spacer, master chain unit kit

2шт.

20

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, chain unit kit

1шт.

21

D36511

PIN

- master, chain unit kit

1шт.

21a

D45076

BELLEVILLE SPRING

SEAL - washer, master chain unit kit

4шт.

Выбрано товаров: 28
