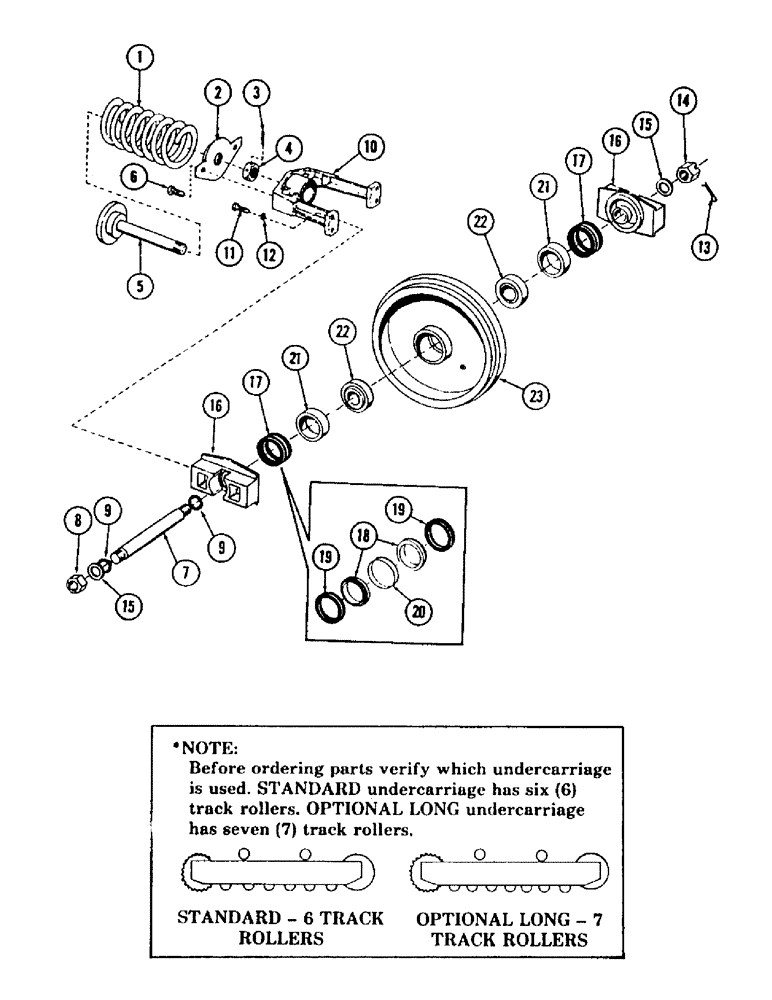

Запчасти Case 880B (140) - IDLER WHEEL AND TRACK ADJUSTER, * (USED ON UNITS W/OPTIONAL LONG UNDERCARRIAGE) (04) - UNDERCARRIAGE

S512125

SHOCK ABSORBER

SPRING, track tension, Includes: Ref. 1 - 5

2шт.

1

S215129

SPRING

1шт.

2

S233910

PLATE

end

1шт.

3

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, roll - 1/4" dia. x 2-1/2"

1шт.

4

S87010

NUT

1шт.

5

S215127

GUIDE

ASSEMBLY

1шт.

6

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

7

S218864

IDLE SHAFT

SHAFT, idler wheel

2шт.

8

131-92

LOCK NUT,1 1/2"-12

NUT, hex lock - 1-1/2" NF

2шт.

9

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

"O" RING - (Replaces S39149)

4шт.

10

S602025

YOKE

front idler

2шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

13

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

14

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT, castle - 1-1/2"

2шт.

15

D36065

WASHER

idler wheel shaft

4шт.

16

S505503

GUIDE

idler

4шт.

17

R39273

SEAL

face - (Replaces D35267), Includes: Ref. 18 - 20

4шт.

18

NSS

NOT SOLD SEPARAT

BODY, seal - split

1шт.

D36826

SEAL KIT

KIT, repair, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL, rubber

2шт.

20

NSS

NOT SOLD SEPARAT

RETAINER, plastic

2шт.

21

D36069

RING

seal retaining

4шт.

22

A27732

BEARING CUP

BEARING

4шт.

23

D42886

FRONT IDLER

WHEEL, idler

2шт.
