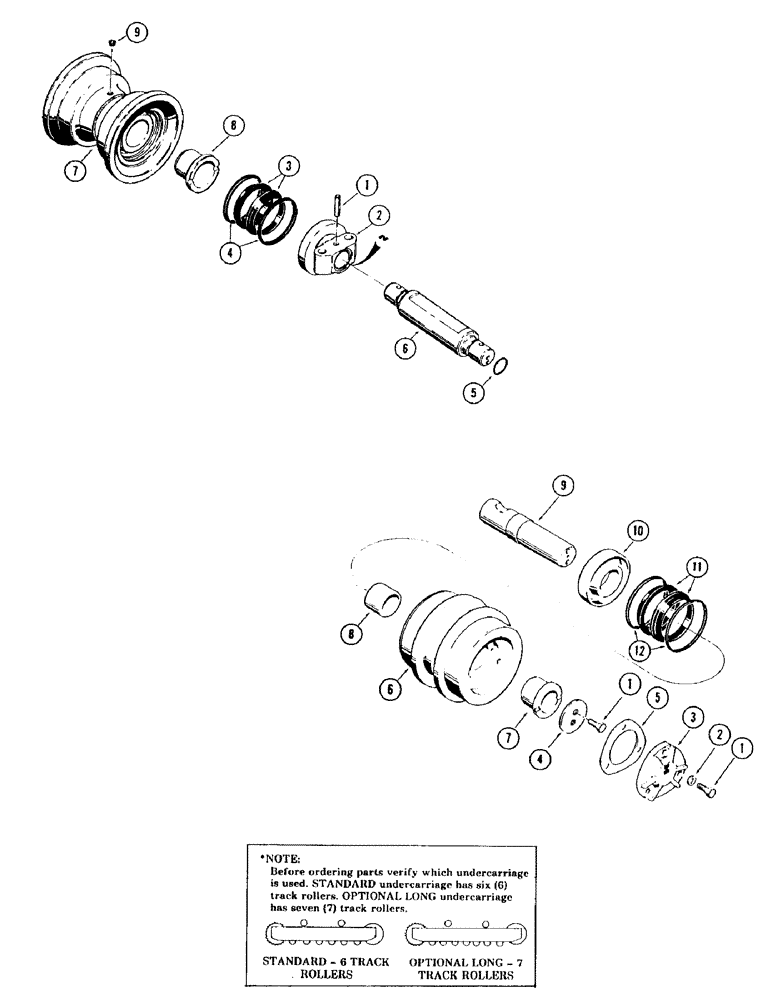

Запчасти Case 880B (136) - TRACK ROLLER, SINGLE FLANGE (04) - UNDERCARRIAGE

R33552

ROLL

ER, track - (Used on units with short undercarriage), Includes: Ref. 1 - 9

12шт.

R33552

ROLL

ER, track - (Used on units with long undercarriage), Includes: Ref. 1 - 9

14шт.

1

R33563

ROLL PIN

PIN, cap retaining

2шт.

2

R33560

BUSHING

CAP, end collar

2шт.

R33564

SEAL

face, Includes: Ref. 3 and 4

4шт.

3

NSS

NOT SOLD SEPARAT

SEAL, rubber

2шт.

4

NSS

NOT SOLD SEPARAT

RING, sealing

2шт.

5

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, "o" ring

2шт.

6

R33561

SHAFT

roller

2шт.

R33558

ROLLER

HUB ASSEMBLY, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

HUB, roller

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

roller

2шт.

9

R33557

PLUG

roller

1шт.

R33965

ROLLER

track carrier, Includes: Ref. 1 - 12

4шт.

1

513-704

BOLT

HHCS - M 10 x 1.5 x 20 grade 8.8, track roller double flange

5шт.

2

D32117

COPPER WASHER

WASHER, COPPER, hardened, track roller double flange

3шт.

3

R33959

CYLINDER END CAP

CAP, roller, track double flange

1шт.

4

R33960

PLATE

RETAINER, washer, track roller double flange

1шт.

5

R33964

GASKET

cap, track roller double flange

1шт.

R33967

CARRIER

HUB ASSEMBLY, track roller double flange, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

HUB, track roller double flange

1шт.

7

R33951

BUSHING

track roller double flange

1шт.

8

R33958

BUSHING

track roller double flange

1шт.

R33969

SHAFT

ASSEMBLY, track roller double flange, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT, track roller double flange

1шт.

10

R33962

RETAINER

seal, track roller double flange

1шт.

R33607

SEAL

face, track roller double flange, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL, rubber, track roller double flange

2шт.

12

NSS

NOT SOLD SEPARAT

RING, sealing, track roller double flange

2шт.
