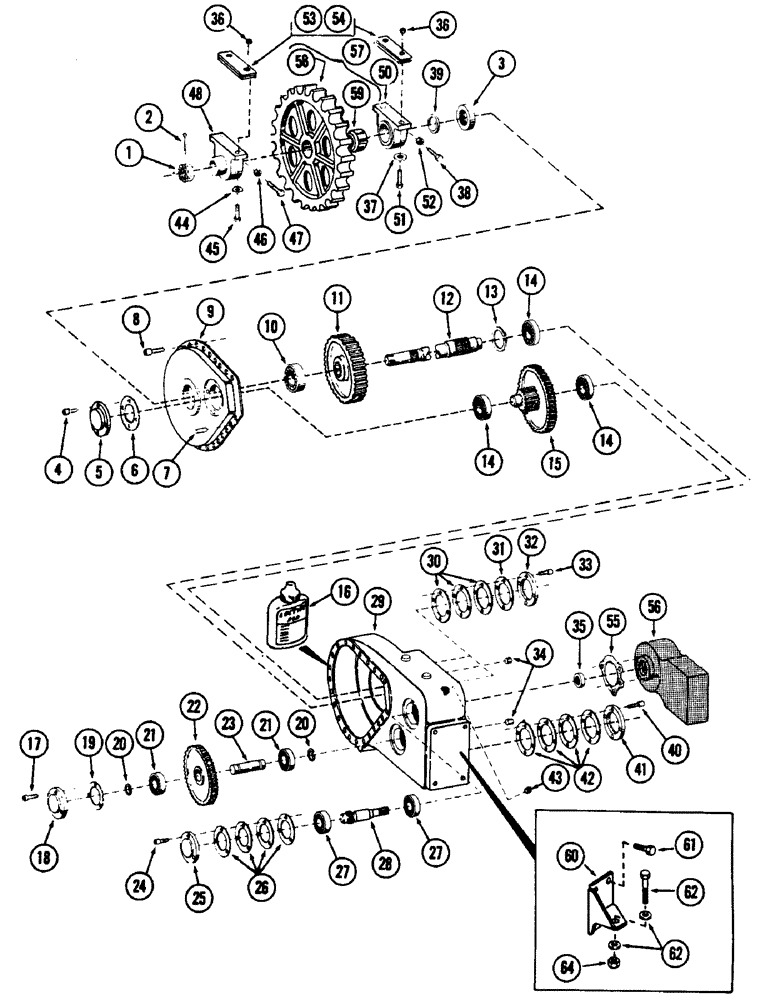

Запчасти Case 880B (132) - FINAL DRIVE TRANSMISSION (04) - UNDERCARRIAGE

S611470

TRANSMISSION

final drive - (Right hand), Includes: Ref. 1 - 52

1шт.

S611471

TRANSMISSION

final drive - (Left hand), Includes: Ref. 1 - 52

1шт.

1

25-1332

NUT,2"-12, G5

NUT - 2" NF

1шт.

2

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

1шт.

3

S83874

OIL SEAL

SEAL, oil

1шт.

Part of transmission output shaft kit, P/N S615439

1шт.

4

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

BOLT - 3/8" NC x 7/8" - (Socket head nylok)

4шт.

5

S217974

COVER

bearing

1шт.

6

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

7

S65037

DOWEL

- 5/8" x 1-1/4" long

2шт.

8

165-138

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 1 1/8"

BOLT - 1/2" NC x 1-1/8" - (Socket head nylok)

21шт.

9

S952720

COVER

transmission

1шт.

10

S83875

ROLLER BEARING

BEARING, roller

1шт.

Part of transmission output shaft kit, P/N S615439

1шт.

11

S603741

GEAR

output

1шт.

12

S615322

SHAFT

output - (See kit on figure 134) (Order kit)

1шт.

13

A10000

SNAP RING,#306, Ext

Ring, Snap, #306, Ext

1шт.

14

S65025

BEARING ASSY

BEARING, roller

3шт.

Part of transmission output shaft kit, P/N S615439

1шт.

15

S603740

GEAR

CLUSTER AND SHAFT

1шт.

16

S96077

SEAL

- 10 CC bottle - (Red) - (Replaces transmission cover gasket - substitutes must not be used)

1шт.

17

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

BOLT - 3/8" NC x 7/8" - (Socket head nylok)

3шт.

18

S210368

COVER

bearing

1шт.

19

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

20

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

21

S65035

ROLLER BEARING

BEARING, roller

2шт.

22

S53338

GEAR

CLUSTER, intermediate

1шт.

23

S210366

SHAFT

intermediate

1шт.

24

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

BOLT - 3/8" NC x 7/8" - (Socket head nylok)

3шт.

25

S203411

COVER

bearing

1шт.

26

S204093

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204094

SHIM

GASKET, shim - .005"

1шт.

S204095

SHIM

GASKET, shim - .007"

1шт.

S204096

SHIM,.010" Thk

Gasket .010" Thk

1шт.

27

S65036

BEARING ASSY

BEARING

2шт.

28

S511703

SHAFT

input

1шт.

29

S952724

HOUSING

transmission - (Right hand)

1шт.

S952725

HOUSING

transmission - (Left hand)

1шт.

30

S204085

GASKET

shim - .003"

1шт.

Part of transmission output shaft kit, P/N S615439

1шт.

S204086

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204087

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

31

S204097

SHIM,.030" Thk

Gasket .030" Thk

1шт.

Part of transmission output shaft kit, P/N S615439

1шт.

32

S217974

COVER

bearing

2шт.

33

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

BOLT - 3/8" NC x 7/8" - (Socket head nylok)

8шт.

34

221-845

PLUG,Hex Soc, 3/4"-14

pipe - 3/8" NPT - (Socket head)

2шт.

35

S106799

OIL SEAL

oil - (Brake housing)

1шт.

36

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

2шт.

131-460

LOCK NUT,5/8"-11

5/8" additional, not a sub.

1шт.

37

S84752

WASHER

flat - 3/4" - (Hardened)

2шт.

38

123-602

BOLT,Hex, 3/4" - 10 x 3", Gr 5, Full Thd

BOLT - 3/4" NC x 3" - (Pillow block adjustment)

1шт.

39

S83873

SPACER

inner

1шт.

40

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

BOLT - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

Part of transmission output shaft kit, P/N S615439

1шт.

41

S210368

COVER

bearing

1шт.

42

S204089

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204090

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204091

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

43

221-665

PLUG,Hex Hd, 3/4"-14

pipe - 3/4" NPT - (Hexagon head) - (Breather hole)

3шт.

44

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

flat - (Hardened)

2шт.

45

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- 5/8" NC x 3-1/2" Gr 8 - (Mounts pillow block to frame)

2шт.

46

25-1412

JAM NUT,Jam, 3/4"-10, G5

jam - 3/4" NC

1шт.

47

123-602

BOLT,Hex, 3/4" - 10 x 3", Gr 5, Full Thd

BOLT - 3/4" NC x 3" - (Pillow block adjustment)

1шт.

48

S209722

BLOCK

pillow - (Outer)

1шт.

49

131-460

LOCK NUT,5/8"-11

NUT, self locking - 5/8" NC

2шт.

50

S212544

BEARING CARRIER

BLOCK, pillow - (Inner)

1шт.

Part of transmission output shaft kit, P/N S615439

1шт.

51

113-788

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- 3/4" NC x 4-1/2" - (Special) - (Mounts pillow block to frame)

2шт.

52

25-1412

JAM NUT,Jam, 3/4"-10, G5

jam - 3/4" NC

1шт.

53

S99609

SHIM

2шт.

54

S99611

SHIM

2шт.

55

S80305

GASKET

brake, Serial Range: housing-transmission

1шт.

56

S612141

HOUSING

track brake - (For breakdown, see Figure 158)

1шт.

57

S230758

SPROCKET ASSY.

SPROCKET, drive, Includes: Ref. 58 and 59

2шт.

58

S610420

SPROCKET ASSY.

SPROCKET

1шт.

59

S221929

BUSHING,58.14mm ID x 83.84mm OD x 43.56mm L

COLLAR

1шт.

60

S209229

BRACKET

transmission mounting - (Right hand) - (Illustrated)

1шт.

S209230

BRACKET

transmission mounting - (Left hand) - (Not illustrated)

1шт.

61

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

(Bracket to transmission) Hex, 3/4"-10 x 1 1/2", G5

4шт.

62

26-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

- 1" NC x 3" Gr 8 - (Bracket to frame)

1шт.

63

S91091

WASHER

flat - 1" - (Special)

2шт.

64

131-20

LOCK NUT,1"-8, GB

NUT, self locking - 1" NC

1шт.

S615439

SHAFT

KIT, transmission output shaft - (Includes output shaft S615322 and items 3, 10, 14, 30, 31, 40 and 50)

1шт.
