(128) - LEVELER CYLINDER, (6.25" ID X 4.70" STROKE)

Запчасти Case 880B (128) - LEVELER CYLINDER, (6.25" ID X 4.70" STROKE) (04) - UNDERCARRIAGE

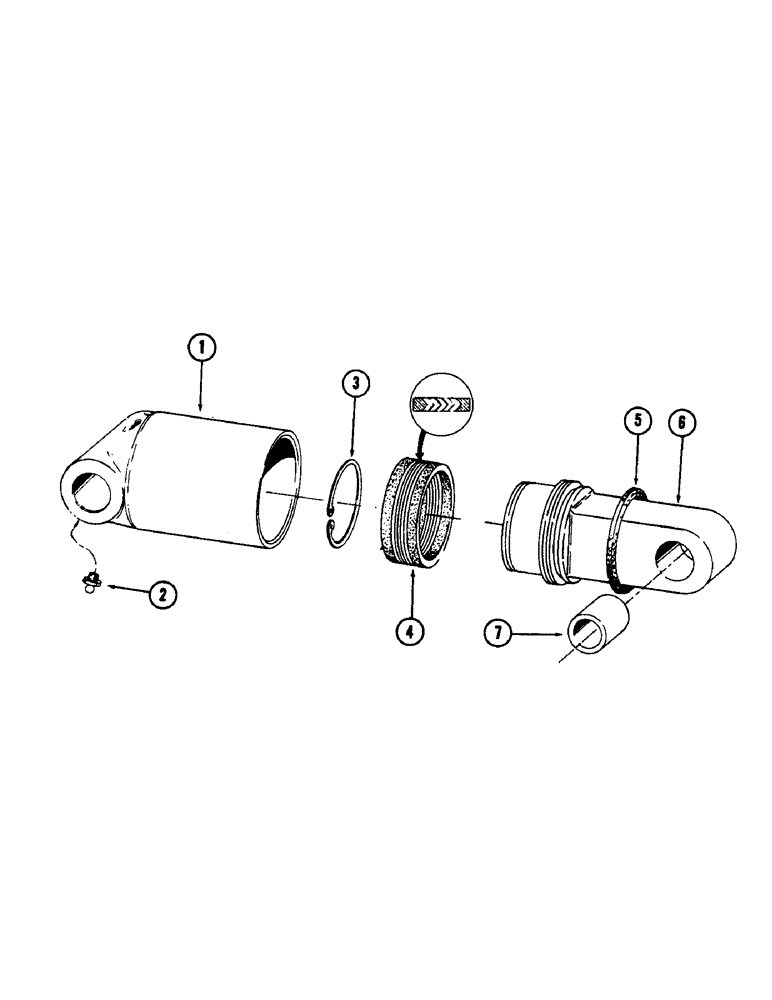

Схема запчастей Case 880B - (128) - LEVELER CYLINDER, (6.25" ID X 4.70" STROKE) (04) - UNDERCARRIAGE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S56810

CYLINDER

leveler, Includes: Ref. 1 - 7

2шт.

1

S211166

TUBE,9.75" L

cylinder

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lube - 1/8" - 27 PTF

1шт.

3

H756064

SNAP RING,#500, 4.692", Ext

RING, retaining

1шт.

4

S209061

SEAL ASSY.

V-RING CUP ASSEMBLY

1шт.

5

S64146

SEAL

RING, wiper - felt

1шт.

6

S211136

PISTON ASSY.

ROD WITH PISTON ASSEMBLY, Includes: Ref. 7

1шт.

7

S202130

THREADED BUSHING

BUSHING

1шт.
