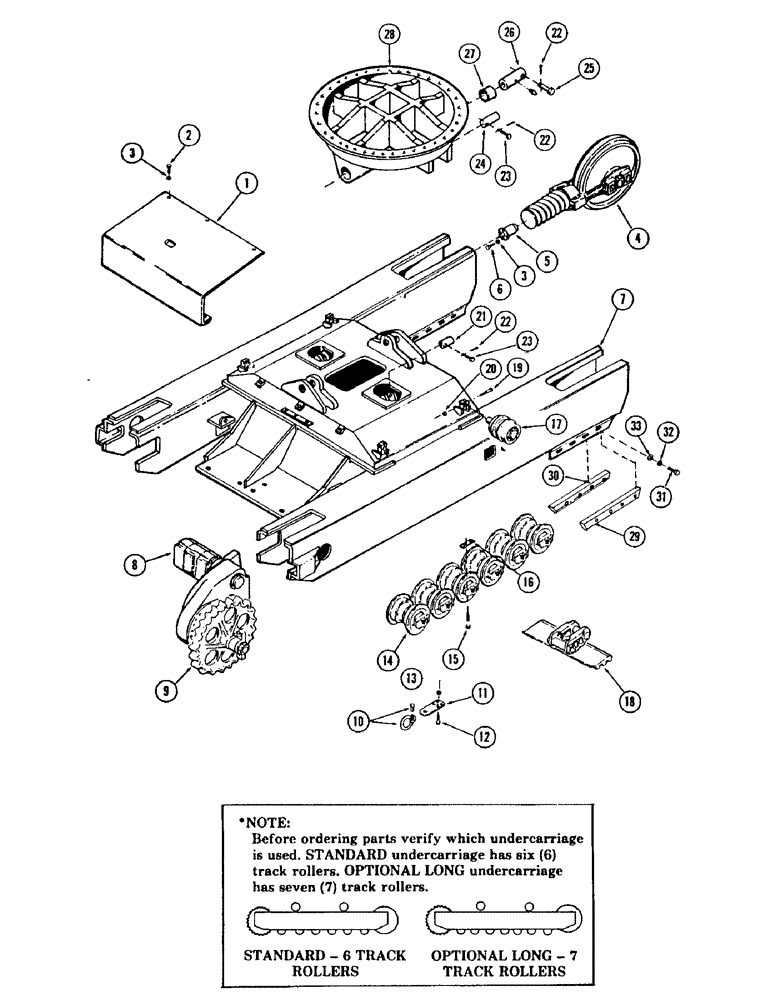

Запчасти Case 880B (124) - * STANDARD CRAWLER UNDERCARRIAGE AND RELATED PARTS, (USED ON UNITS W/LEVELER) (04) - UNDERCARRIAGE

1

S230471

COVER, track motors

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

4

REF

INSTRUCTION

TRACK ADJUSTER ASSEMBLY - (For breakdown, see Figure 138)

2шт.

5

REF

INSTRUCTION

CYLINDER, track adjustment - (For breakdown, see Figure 130)

2шт.

6

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

7

S954909

UNDERCARRIAGE

1шт.

8

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see Figure 226)

2шт.

9

REF

INSTRUCTION

FINAL DRIVE - (For breakdown, see Figure 132)

2шт.

10

240-11

SHACKLE

round pin - (Optional)

1шт.

11

S209710

PLATE

DRAW BAR - (Optional)

1шт.

12

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

13

25-1012

NUT,3/4"-10, G5

4шт.

14

REF

INSTRUCTION

ROLLER, track - (For breakdown, see Figure 136)

12шт.

15

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

48шт.

16

S91175

BAR

24шт.

17

REF

INSTRUCTION

ROLLER, track - (For breakdown, see Figure 136)

4шт.

18

REF

INSTRUCTION

TRACK ASSEMBLY - (For breakdown, see Figure 142)

2шт.

19

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

20

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

21

S78317

PIN

cylinder to lower leveler

2шт.

22

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

6шт.

23

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.76" grip length

4шт.

24

S78554

PIN

cylinder to upper leveler

2шт.

25

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 4.516" grip length

2шт.

26

72631

PIN, upper, Serial Range: leveler-bottom

2шт.

27

S202163

BUSHING

2шт.

28

S56800

LEVEL

ER, upper

1шт.

26

S72631

PIN

upper, Serial Range: leveler-bottom

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

1шт.

27

S202163

BUSHING

2шт.

28

S56800

LEVEL

ER, upper

1шт.

29

S511363

BAR

2шт.

30

S511364

BAR ASSY.

BAR

2шт.

31

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

16шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

33

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

16шт.
