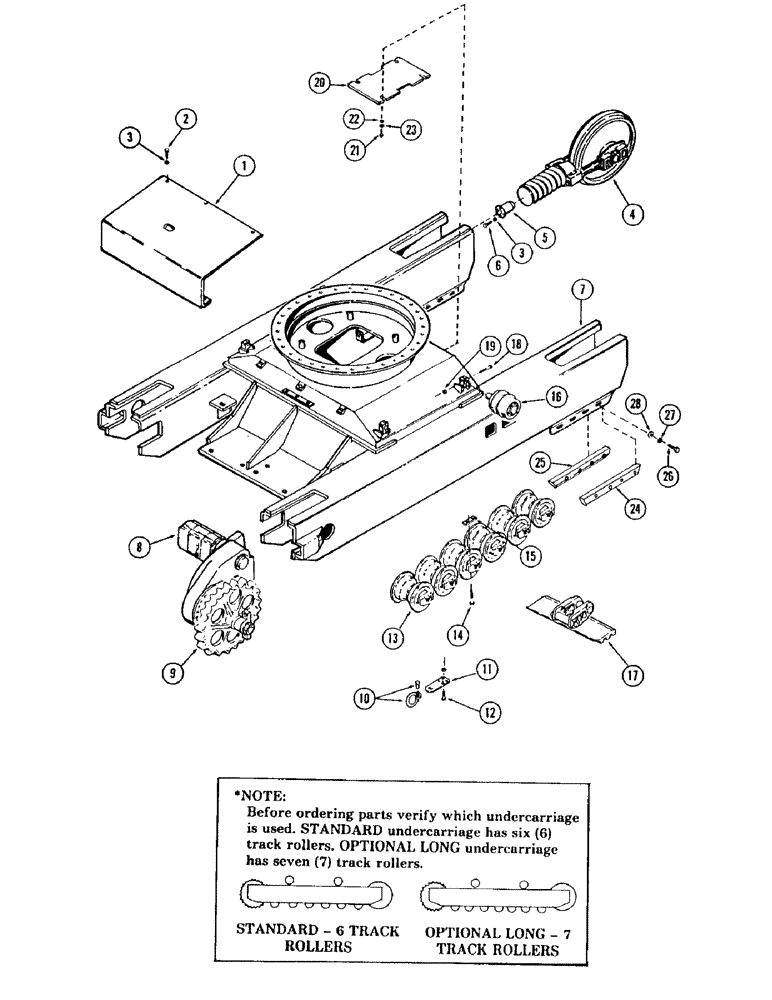

Запчасти Case 880B (120) - * STANDARD CRAWLER UNDERCARRIAGE AND RELATED PARTS, (USED ON UNITS W/O LEVELER) (04) - UNDERCARRIAGE

1

S230471

COVER, track motor

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

4

REF

INSTRUCTION

TRACK ADJUSTER ASSEMBLY - (For breakdown, see Figure 138)

2шт.

5

REF

INSTRUCTION

CYLINDER, track adjuster - (For breakdown, see Figure 130)

2шт.

6

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

7

S610080

UNDERCARRIAGE

1шт.

8

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see Figure 226)

2шт.

9

REF

INSTRUCTION

TRANSMISSION, final drive - (For breakdown, see Figure 132)

2шт.

10

240-11

SHACKLE

round pin - (Optional)

1шт.

11

S209710

PLATE

DRAW BAR - (Optional)

1шт.

12

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

13

REF

INSTRUCTION

ROLLER, track - (For breakdown, see Figure 136)

14шт.

14

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

48шт.

15

S91175

BAR

24шт.

16

REF

INSTRUCTION

ROLLER, track - (For breakdown, see Figure 136)

4шт.

17

REF

INSTRUCTION

TRACK ASSEMBLY - (For breakdown, see Figure 142)

2шт.

18

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

19

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

20

S513354

GUARD

swivel

1шт.

21

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

23

195-530

WASHER,7/16"

flat - 1/2"

4шт.

24

S511363

BAR

2шт.

25

S511364

BAR ASSY.

BAR

2шт.

26

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

16шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

28

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

16шт.
