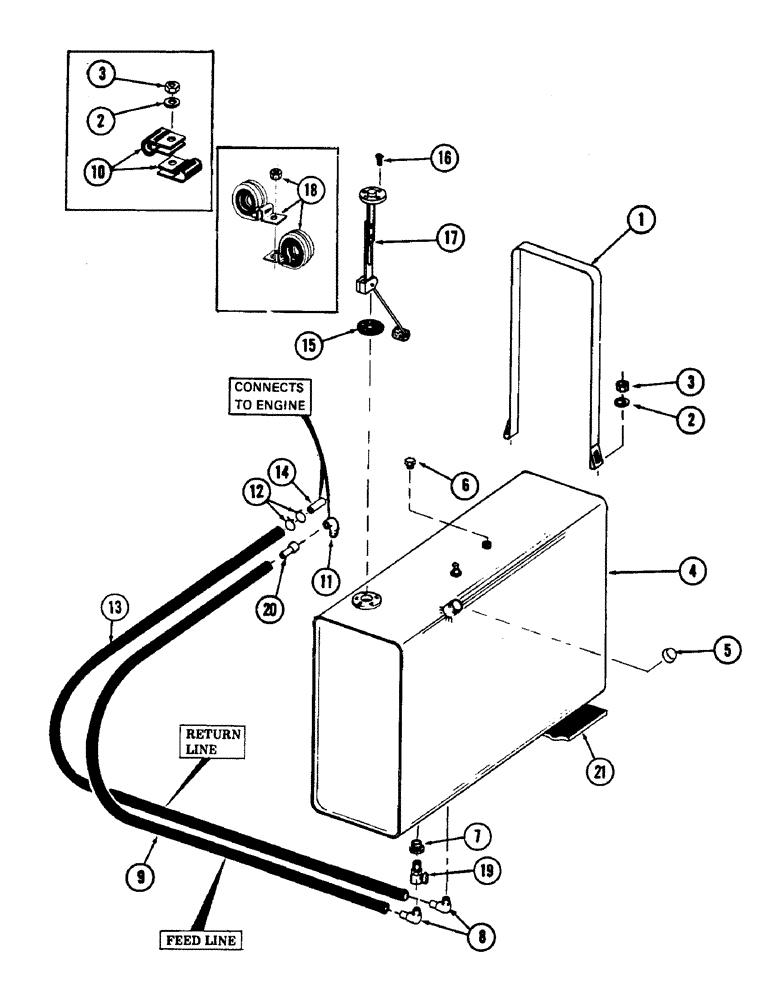

Запчасти Case 880B (072) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1

S93863

STRAP

fuel tank mounting

2шт.

2

195-525

WASHER,3/8", SAE

flat - 3/8"

5шт.

3

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

5шт.

129-2009

STUD, used in the area of Ref. 1 and 2

1шт.

4

S514118

FUEL TANK

TANK, fuel - (Supersedes S502212), Includes: Ref. 5

1шт.

5

S64019

FILLER CAP

CAP, fuel tank - (Supersedes A18870)

1шт.

6

221-662

PLUG,Hex Hd, 1/4"-18

fuel tank drain

1шт.

7

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

ADAPTER, reducing - 3/8" NPT male x 1/4" NPT female

1шт.

8

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

2шт.

9

S63654

HOSE

fuel ling - (BULK) 1 piece - 3/8" ID x 80"

1шт.

10

49885

CLAMP

hose

2шт.

11

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

90 degrees - 1/4" NPT

1шт.

12

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP

2шт.

13

S63654

HOSE

fuel line - (BULK) 1 piece - 3/8" ID x 85"

1шт.

14

S209418

LINE, fuel - (Return line to engine adapter)

1шт.

15

S49745

GASKET

GASKET, fuel gauge sending unit

1шт.

16

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

machine - No. 10 - 32 NF x 3/4"

5шт.

17

S502600

SENDER UNIT

SENDING UNIT, fuel gauge

1шт.

18

214-1204

CLAMP

2шт.

S48576

NUT

speed

1шт.

19

217-81

VALVE

shut-off

1шт.

20

220-03

INSERT, hose

1шт.

21

S224325

PAD

rubber

1шт.
