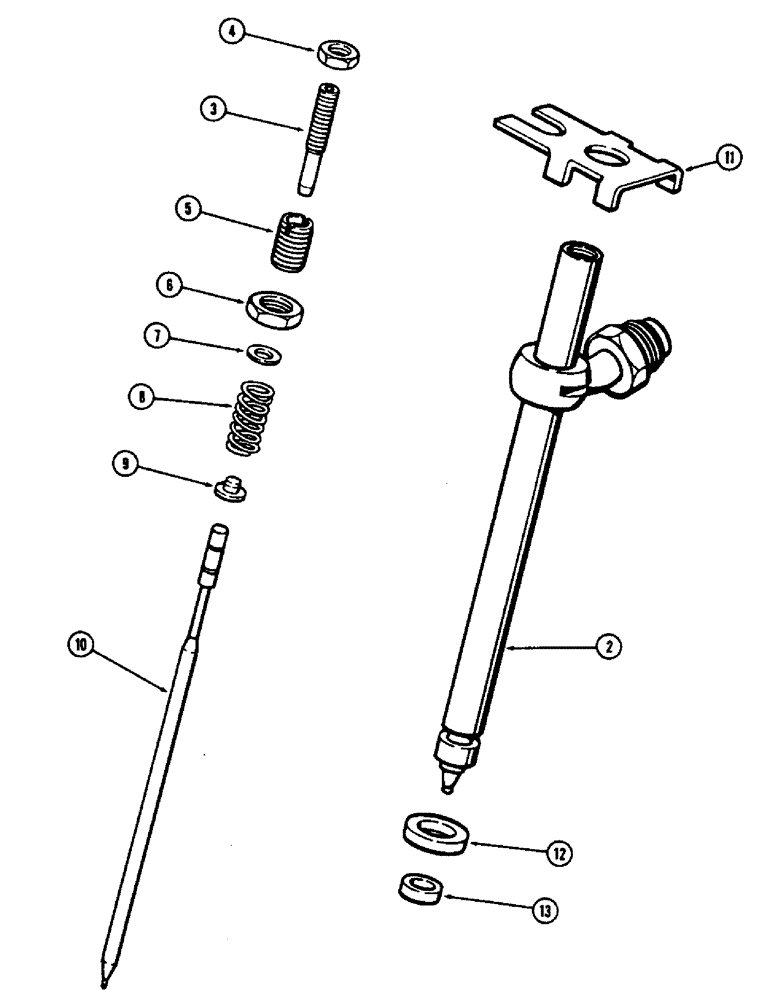

Запчасти Case 880B (040) - FUEL INJECTION NOZZLES, 336BDT DIESEL ENGINE (02) - FUEL SYSTEM

A138322

NOZZLE CAP

NOZZLE ASSEMBLY - injector, Includes: Ref. 2 - 13

4шт.

Whenever the nozzle is removed from the cylinder head, the seal, ref 13 and the washer, ref 12 must be replaced before the nozzle is installed back in the cylinder head.

1шт.

A138322R

REMAN-INJECT NOZZLE

880B

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

NLS

NO LONGER SERVICED

SEAT - pressure spring, upper

1шт.

8

A45290

SPRING

- pressure adjusting, 11/16" free length (17.46 MM) (Red color code)

1шт.

9

A45289

SEAT

- pressure spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
