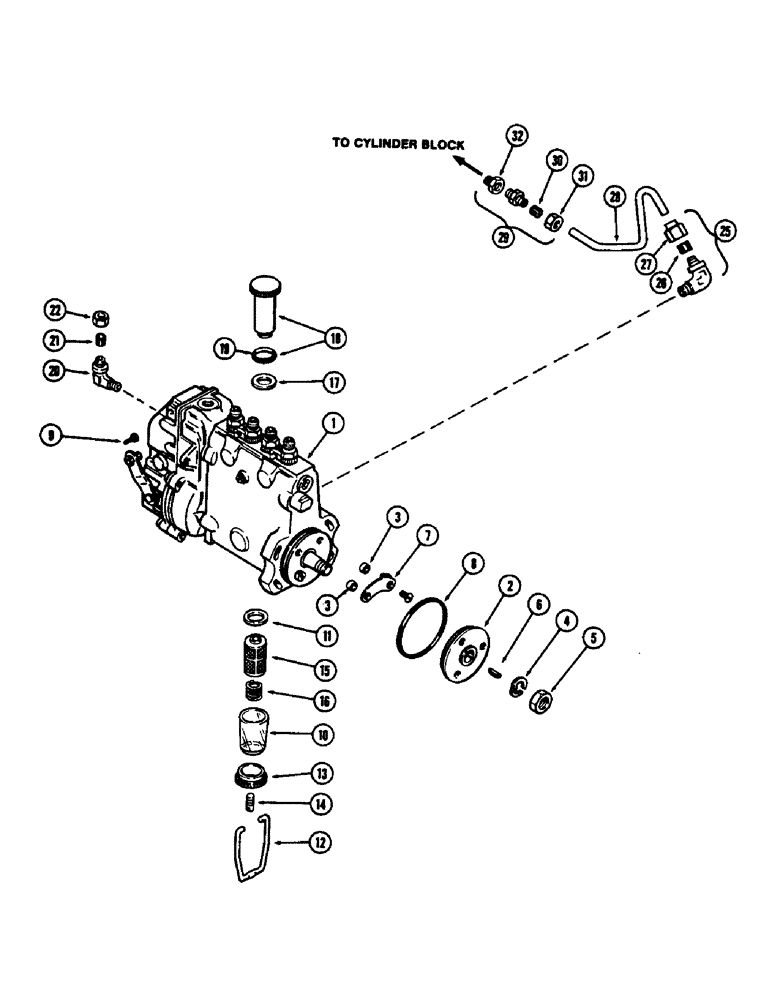

Запчасти Case 880B (038) - FUEL INJECTION PUMP, 336BDT DIESEL ENGINE (02) - FUEL SYSTEM

1

A138015

PUMP

ASSEMBLY - fuel injection (2200 RPM), Includes: Ref. 2 - 22

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41859

BUSHING

SPACER - pointer

2шт.

4

A41851

LOCK WASHER

- lock, hub nut

1шт.

5

A41852

LOCK NUT

- hub retaining

1шт.

6

A41850

KEY

- hub to pump shaft

1шт.

7

A41858

INDICATOR

POINTER - hub adjusting

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - 2-21/64" x 3-3/16" x 1/8" (59.13 x 80.96 x 3.18 MM)

1шт.

9

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

SCREW - pump stop control cable lock

1шт.

10

A43347

BOWL

- filter

1шт.

11

A43346

GASKET

- bowl

1шт.

12

A43350

CLAMP

RETAINER - bowl

1шт.

13

A43348

NUT

- retaining, bowl seat

1шт.

14

A43349

STUD

- nut retaining

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element retaining

1шт.

17

A43351

SEAL

- copper

2шт.

18

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer, Includes: Ref. 19

1шт.

19

A45342

GASKET

- pump

1шт.

20

222-4042

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degrees, Includes: Ref. 21 and 22

1шт.

21

222-102

SLEEVE,1/4" Tube

1шт.

22

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

25

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degrees, Includes: Ref. 26 and 27

1шт.

26

222-102

SLEEVE,1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

28

A136902

TUBE

- oil, Serial Range: block-pump

1шт.

29

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - straight, Includes: Ref. 30 and 31

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

32

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer, 3/4" PT to 1/4" PT

1шт.
