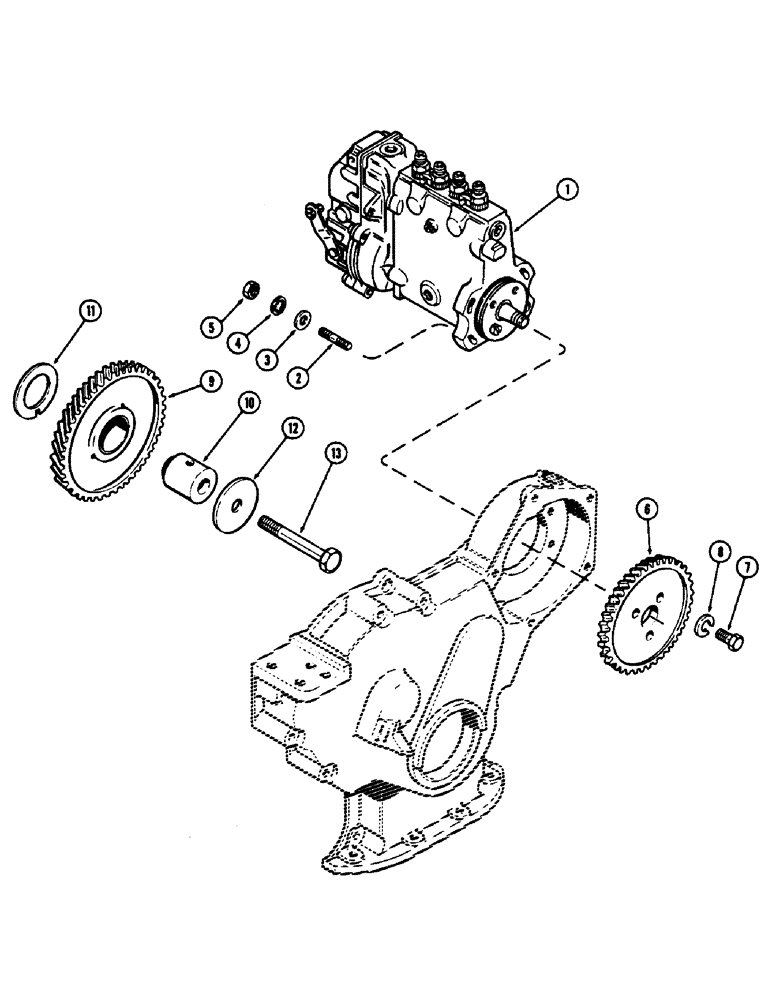

Запчасти Case 880B (036) - FUEL INJECTION PUMP DRIVE, 336BDT DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 38)

1шт.

2

A59077

STUD

- 3/8" NC x 1-7/8"

3шт.

2

A142092

STUD

- 3/8" NC x 1-7/8" (Drilled for pump seal wire)

1шт.

3

A57470

WASHER

- 13/32" x 11/16" x 1/16" (10.32 x 17.46 x 1.59 MM)

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Used with A58689 stud) 3/8"-16, G5

3шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" NC hex slotted (Used with A142092 stud)

1шт.

6

A58693

GEAR

- injection pump drive

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A62542

GEAR

- idler, with bushing

1шт.

10

A58690

SHAFT

- idler gear

1шт.

11

A58691

WASHER

- thrust, idler shaft

1шт.

12

A58692

PLATE

- thrust, idler shaft

1шт.

13

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.
