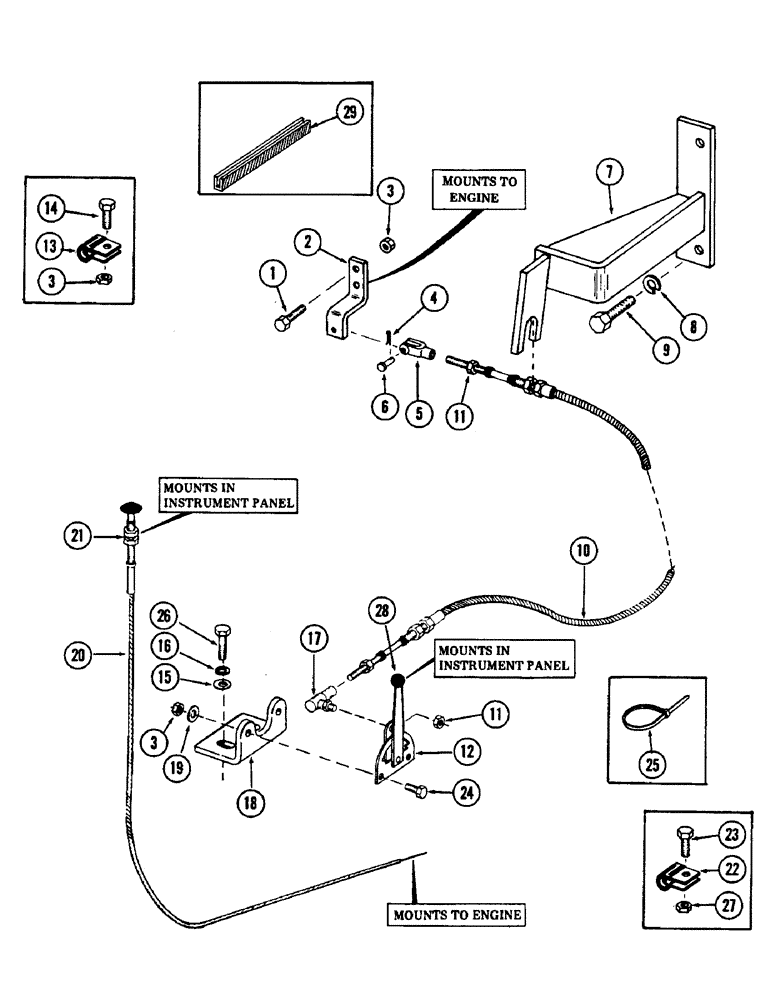

Запчасти Case 880B (074) - THROTTLE CONTROL (01) - ENGINE

1

13-419

BOLT - 1/4" - 20 NC x 7/8" Gr 5

2шт.

2

S92631

LEVER

throttle control

1шт.

3

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

4шт.

4

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

5

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE

1шт.

6

S10714

CLEVIS PIN

PIN, clevis - 1/4" dia. x 648" grip length

1шт.

7

S602574

BRACKET, throttle control

1шт.

8

92-21

BOLT (SPREADER)

WASHER, lock - 3/8"

3шт.

9

13-206

SCREW

BOLT - 3/8" - 16 NC x 3/4"

2шт.

10

S238507

CABLE

throttle control - (Supersedes S220635)

1шт.

11

131-498

LOCK NUT,1/4"-28, GB

NUT, self locking

1шт.

12

S91894

CONTROL LEVER

LEVER, throttle

1шт.

13

13-1

BOLT - 1/4" - 20 NC x 1/2" Gr 5

1шт.

14

S93104

CLAMP

1шт.

15

95-103

WASHER, hardened - 1/4"

2шт.

16

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

2шт.

17

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT, ball

1шт.

18

S231357

ANGLE

BRACKET, throttle lever mounting

1шт.

19

195-18

WASHER,1/4"

flat - 1/4"

2шт.

20

S231430

CABLE

control - (Shut off)

1шт.

21

95-525

WASHER, plain - 3/8"

1шт.

L32679

HANDLE

knob T

1шт.

22

NLS

NO LONGER SERVICED

1шт.

23

13-204

SHAFT

BOLT - 3/8" - 16 NC x 1/2" Gr 5

1шт.

24

13-3

CLUTCH PLATE

BOLT - 1/4" - 20 NC x 3/4"

2шт.

25

S73387

CLIP

TIE, cable

1шт.

26

13-208

CLUTCH

BOLT - 3/8" - 16 NC x 1-1/4" Gr 5

2шт.

27

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

1шт.

28

S94426

KNOB

BALL, throttle lever

1шт.

29

S64206

SEAL

MOULDING, rubber - (Bulk) - 1 piece - 20" long - (Protects cables thru hole in cab floor)

1шт.

S223189

throttle, 60" riser

1шт.
