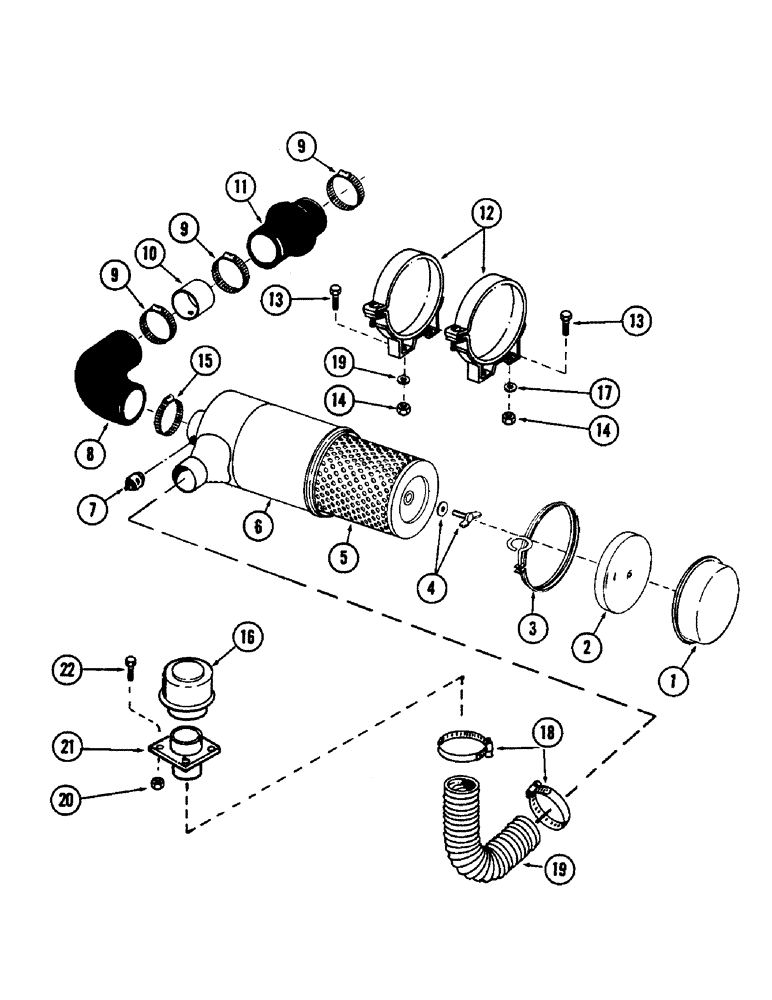

Запчасти Case 880B (070) - AIR CLEANER AND RELATED PARTS (01) - ENGINE

S512749

AIR CLEANER

CLEANER, air, Includes: Ref. 1 - 6

1шт.

1

A40951

CUP

1шт.

2

D37979

BAFFLE

1шт.

3

R15731

CLAMP

ASSEMBLY

1шт.

4

F91761

WING NUT

ASSEMBLY

1шт.

5

D56453

AIR CLEANER

ELEMENT

1шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

A59568

INDICATOR

filter

1шт.

8

L52698

ELBOW UNION

ELBOW, rubber

1шт.

9

214-359

CLAMP,#92, 3.75"-4.06", T-Bolt

3шт.

10

S112584

TUBE,350 mm ID x 625 mm L

hose adapter

1шт.

11

S83126

ADAPTER

CONNECTOR, rubber hump

1шт.

12

S64722

BAND, slip

2шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

14

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

15

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP

1шт.

16

W13501

CAP

rain

1шт.

17

195-104

WASHER,3/8"

flat

4шт.

18

214-360

CLAMP,#100, 4.00"-4.31", T-Bolt

2шт.

19

S73162

HOSE, flexible - (Bulk) - 18" long

1шт.

20

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

4шт.

21

S238406

TUBE

1шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

A40910

CLEANER

DETERGENT, 4 lb. box to cleanse filter element

1шт.
