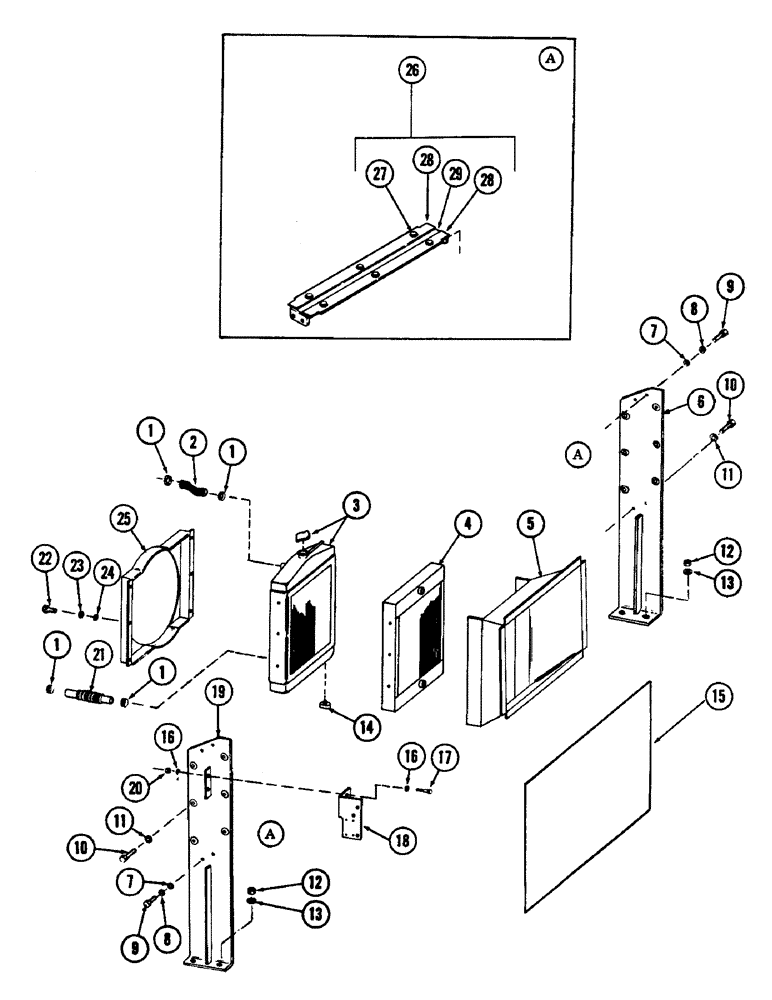

Запчасти Case 880B (068) - RADIATOR, OIL COOLER, HOSES AND BRACKETS (01) - ENGINE

1

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose

4шт.

2

S94322

RADIATOR HOSE,2.50" ID x 8.50", SAE 20R4 CLASS SC

- Upper 2.50" ID x 8.50", SAE 20R4 CLASS SC

1шт.

3

S505699

RADIATOR

1шт.

D25826

CAP

radiator (Replaces S25826)

1шт.

4

S601957

COOLER

oil

1шт.

5

S602300

SHROUD, air

1шт.

6

S509824

BRACKET

oil cooler and radiator (Replaces S508924)

1шт.

7

95-102

WASHER, flat - 5/16"

10шт.

8

92-20

WASHER,1 1/4"

LOCK, 1 1/4"

8шт.

9

13-103

BOLT - 5/16" - 18 NC x 1" Gr 5

8шт.

10

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1-5/8"

12шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

12шт.

12

131-492

NUT,1/2"-13

NUT, self locking - 1/2" - 13 NC

4шт.

13

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

4шт.

14

A23656

COCK, DRAIN

VALVE, radiator drain

1шт.

15

M20696

SEAL

MOLDING, rubber - 1 piece x 102" long

102шт.

16

195-103

WASHER,5/16"

flat - 3/8"

4шт.

17

13-208

CLUTCH

BOLT - 3/8" - 16 NC x 1-1/4"

2шт.

18

S510380

BRACKET

relay mounting

1шт.

19

S513794

BRACKET, oil cooler and radiator

1шт.

20

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

2шт.

21

S85822

HOSE

Radiator, Lower

1шт.

22

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

machine - 1/4" - 20 NC x 1/2"

6шт.

23

195-18

WASHER,1/4"

flat - 1/4"

6шт.

24

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER, lock - 1/4" - (Internal tooth)

6шт.

25

S602301

SHROUD

radiator

1шт.

26

S509820

BRACKET, support - (Upper and lower), Includes: Ref. 27 - 29

2шт.

27

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

6шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

195-101

WASHER,3/16"

flat - 1/4"

6шт.

28

S228755

STRIP

2шт.

29

S228753

BRACKET

1шт.
